ELLENDALE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4E7
ELLENDALE MUNI
PublicPUB

1 miles NE of ELLENDALE, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 00' 59"N 98° 30' 56"W
1457' MSL
2457' MSL
07E
100LL
GRAND FORKS (GFK)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
K2D5 (20nm) VFR
6:55 AM CDT
Clear
8sm
50°F
50°F
29.80"Hg
320° 11kts
AO2
K2D5 201155Z AUTO 32011KT 8SM CLR 10/10 A2980 RMK AO2
List Your Business

4E7 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

4E7 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

4E7 Hotels

No hotels are listed for this airport.

4E7 Restaurants

No restaurants are listed for this airport.

4E7 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

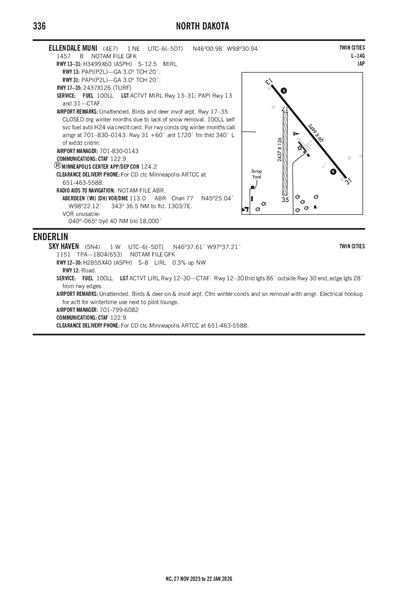

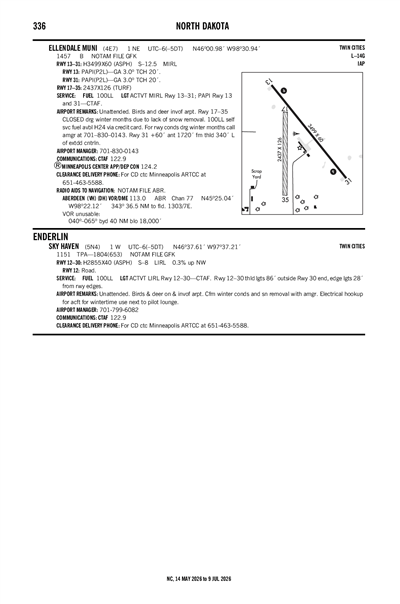

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KABR (35nm)
Mon, 5/20 6:20 AM CDT
Mon, 5/20 7:00 AM CDT - Tue, 5/21 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Sky Clear
6sm
330° 4kts
VFR
10:00 AM CDT - 7:00 PM CDT
Scattered 10,000'
6sm
340° 13kts
Gusts 19kts
VFR
7:00 PM CDT - 12:00 AM CDT
Broken 8,000'
6sm
350° 10kts
VFR
12:00 AM CDT - 5:00 AM CDT
Broken 8,000'
6sm
030° 7kts
VFR
5:00 AM CDT - 7:00 AM CDT
Light Showers and Rain and Mist
Overcast 4,500'
6sm
030° 11kts
Gusts 18kts
KABR 201120Z 2012/2112 33004KT P6SM SKC
   FM201500 34013G19KT P6SM SCT100
   FM210000 35010KT P6SM BKN080
   FM210500 03007KT P6SM BKN080
   FM211000 03011G18KT 6SM -SHRA BR OVC045
4E7
Domestic
5/14/240411Z !GFK 05/109 4E7 OBST TOWER LGT (ASR 1224845) 461106.80N0983605.10W (10.8NM NNW 4E7) 1857.3FT (344.2FT AGL) U/S 2405140411-2405290311
4/19/242231Z !GFK 04/172 4E7 OBST WIND TURBINE LGT (ASN 2007-AGL-1899-OE) 455758N0985439W (16.8NM W 4E7) 2514FT (396FT AGL) U/S 2404192231-2405312359
3/28/241743Z !GFK 03/285 4E7 OBST WIND TURBINE LGT (ASN 2007-AGL-1897-OE) 455739N0985519W (17.3NM W 4E7) 2559FT (396FT AGL) U/S 2403281743-2405312359
No
UNATNDD
ELLENDALE ARPT AUTH
BOX 82
ELLENDALE, ND 58436
Phone: 701-830-0143
KYLE GLYNN
8974 HWY 281
ELLENDALE, ND 58436
Phone: 701-830-0143
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT MIRL RWY 13/31; PAPI RWY 13 & 31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
12
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 13/31

3499 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 141°321°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 46° 01' 15"N 46° 00' 48"N
Longitude 98° 31' 08"W 98° 30' 37"W
Elevation 1,456' 1,456'
Threshold Crossing Height 20 ft. AGL 20 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

2437 ft. x 126 ft.
TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 46° 01' 07"N 46° 00' 43"N
Longitude 98° 31' 02"W 98° 31' 02"W
Elevation 1,454' 1,454'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-5FOR RWY CONDS DRG WINTER MONTHS CALL AMGR AT 701-830-0143.
A110-6BIRDS & DEER INVOF ARPT.
A110-7FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
ELLENDALE MUNI (IATA: 4E7) is a public airport located in ELLENDALE, ND.
