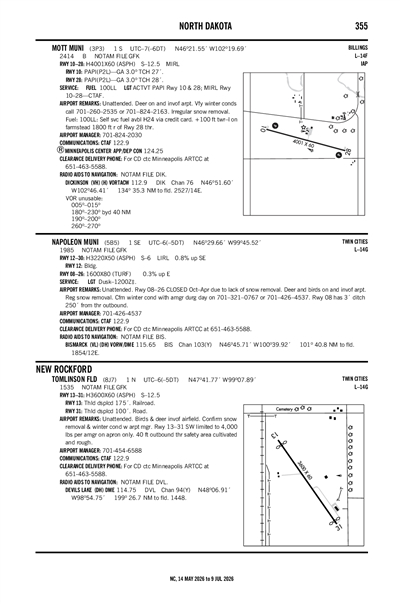

NAPOLEON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5B5
NAPOLEON MUNI
PublicPUB

1 miles SE of NAPOLEON, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 29' 39"N 99° 45' 31"W
1985' MSL
2985' MSL
09E
None Listed
GRAND FORKS (GFK)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
K7L2 (26nm) VFR
2:55 AM CDT
Clear
9sm
45°F
45°F
29.82"Hg
310° 4kts
AO2
K7L2 200755Z AUTO 31004KT 9SM CLR 07/07 A2982 RMK AO2
List Your Business

5B5 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

5B5 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

5B5 Hotels

No hotels are listed for this airport.

5B5 Restaurants

No restaurants are listed for this airport.

5B5 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KBIS (45nm)
Mon, 5/20 12:46 AM CDT
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 3:00 AM CDT
Broken 12,000'
Scattered 4,000'
Few 1,000'
6sm
010° 7kts
VFR
3:00 AM CDT - 7:00 AM CDT
Scattered 12,000'
Few 5,000'
6sm
320° 8kts
VFR
7:00 AM CDT - 11:00 AM CDT
Broken 6,000'
Scattered 2,500'
6sm
310° 9kts
VFR
11:00 AM CDT - 7:00 PM CDT
Broken 15,000'
Scattered 4,000'
6sm
330° 10kts
VFR
7:00 PM CDT - 1:00 AM CDT
Broken 10,000'
Scattered 7,000'
6sm
040° 5kts
KBIS 200546Z 2006/2106 01007KT P6SM FEW010 SCT040 BKN120
   FM200800 32008KT P6SM FEW050 SCT120
   FM201200 31009KT P6SM SCT025 BKN060
   FM201600 33010KT P6SM SCT040 BKN150
   FM210000 04005KT P6SM SCT070 BKN100
5B5
No NOTAM Available
No
UNATNDD
NAPOLEON ARPT AUTH
PO BOX 165
NAPOLEON, ND 58561
Phone: 701-426-4537
SHANE WEIGEL
PO BOX 165
NAPOLEON, ND 58561
Phone: 701-426-4537
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
DUSK-0600. ACTVT LIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
4
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 08/26

1600 ft. x 80 ft.
TURF
Good
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings
Markings Condition
Latitude 46° 29' 38"N 46° 29' 38"N
Longitude 99° 45' 51"W 99° 45' 28"W
Elevation 1,961' 1,965'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

3220 ft. x 50 ft.
ASPH
Good
NONE
LOW

6,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 128°308°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 46° 29' 50"N 46° 29' 30"N
Longitude 99° 45' 45"W 99° 45' 10"W
Elevation 1,960' 1,985'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1REG SNOW REMOVAL. CFM WINTER COND WITH AMGR DURG DAY ON 701-321-0767 OR 701-426-4537.
A110-2RWY 08/26 CLSD OCT-APR DUE TO LACK OF SNOW REMOVAL.
A110-3RWY 08 HAS 3 FT DITCH 250 FT FROM THR OUTBOUND.
A110-5DEER & BIRDS ON & INVOF ARPT.
A110-6FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
NAPOLEON MUNI (IATA: 5B5) is a public airport located in NAPOLEON, ND.
