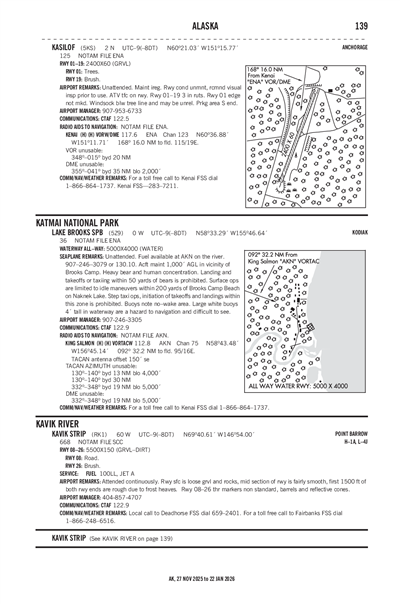

KASILOF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5KS
KASILOF
PublicPUB

2 miles N of KASILOF, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
60° 21' 02"N 151° 15' 46"W
125' MSL
1125' MSL
24E
None Listed
KENAI (ENA)
ANCHORAGE
ANCHORAGE (ZAN)
5/16/24-6/13/24
PASX (10nm) VFR
11:56 PM AKDT
No Clouds
10sm
45°F
36°F
29.99"Hg
190° 7kts
AO2 SLP160 T00720022
PASX 200756Z AUTO 19007KT 10SM 07/02 A2999 RMK AO2 SLP160 T00720022
List Your Business

5KS FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

5KS Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

5KS Hotels

No hotels are listed for this airport.

5KS Restaurants

No restaurants are listed for this airport.

5KS Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.5

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PAEN (14nm)
Sun, 5/19 9:38 PM AKDT
Sun, 5/19 10:00 PM AKDT - Mon, 5/20 10:00 PM AKDT
VFR
10:00 PM AKDT - 11:00 PM AKDT
Scattered 8,000'
6sm
350° 6kts
VFR
11:00 PM AKDT - 6:00 AM AKDT
Scattered 10,000'
6sm
200° 14kts
VFR
6:00 AM AKDT - 10:00 AM AKDT
Scattered 10,000'
6sm
190° 7kts
VFR
10:00 AM AKDT - 10:00 PM AKDT
Scattered 25,000'
6sm
210° 14kts
PAEN 200538Z 2006/2106 35006KT P6SM SCT080
   FM200700 20014KT P6SM SCT100
   FM201400 19007KT P6SM SCT100
   FM201800 21014KT P6SM SCT250
5KS
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519-6900
Phone: (907) 269-0760
ROB SMITH
PO BOX 1327
SOLDOTNA, AK 99669
Phone: 907-953-6733
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
ENA
--
--
N/A
Yes
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
1
0
0
0
0
0
None
None
None
None
None

Runway 01/19

2400 ft. x 60 ft.
GRAVEL
Good
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 29°209°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 60° 20' 52"N 60° 21' 12"N
Longitude 151° 15' 58"W 151° 15' 35"W
Elevation 104' 106'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY COND UNMNT; RCMND VISUAL INSP PRIOR TO USE.
A110-3KENAI FSS - 283-7211.
A110-5MAINT IREG.
A110-7ATV TFC ON RWY.
A110-8PRKG AREA S END.
KASILOF (IATA: 5KS) is a public airport located in KASILOF, AK.
