5W4

P K AIRPARK

PublicPUB

3 miles NE of RAEFORD, NC

View on Map

Status

Operational

Coordinates

35° 01' 11"N 79° 11' 28"W

Elevation

304' MSL

Pattern Alt

1304' MSL

Mag Variation

09W

Fuel

Jet A+, 100LL

FSS

RALEIGH (RDU)

Sectional

CHARLOTTE

ARTCC

WASHINGTON (ZDC)

Data Effective

5/16/24-6/13/24

KFAY (15nm) VFR

3:53 AM EDT RAW

Scattered 4,500'

Viz

10sm

Temp

62°F

Dew

60°F

Pres

29.97"Hg

Wind

020° 6kts

RMK

AO2 SLP143 T01670156

KFAY 200753Z AUTO 02006KT 10SM SCT045 17/16 A2997 RMK AO2 SLP143 T01670156

List Your Business

5W4 FBOs, Flight Schools and Ground Support

Promote Listing

Skydive Paraclete XP

Freq: 123.0

Phone: (910) 904-0000

0 Reviews (Read | Sign In To Write)

5W4 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

5W4 Hotels

No hotels are listed for this airport.

5W4 Restaurants

No restaurants are listed for this airport.

5W4 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 123.0 CTAF 123.0

No communication frequencies available for this airport.

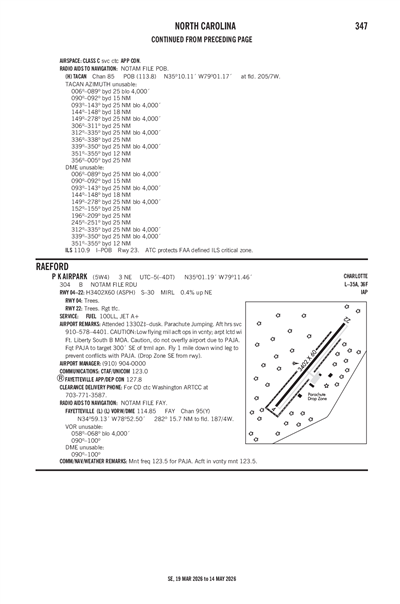

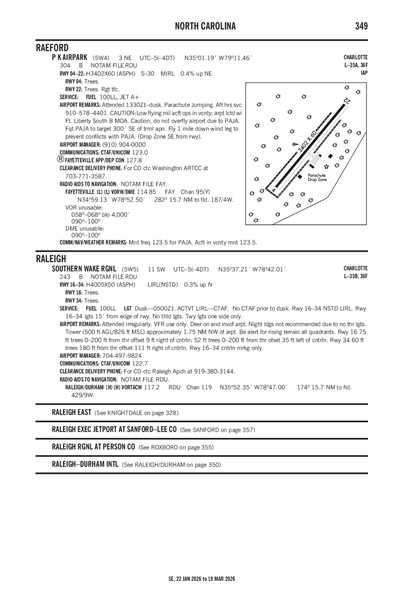

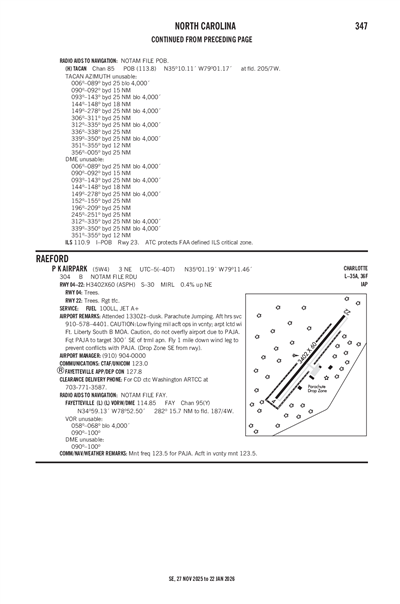

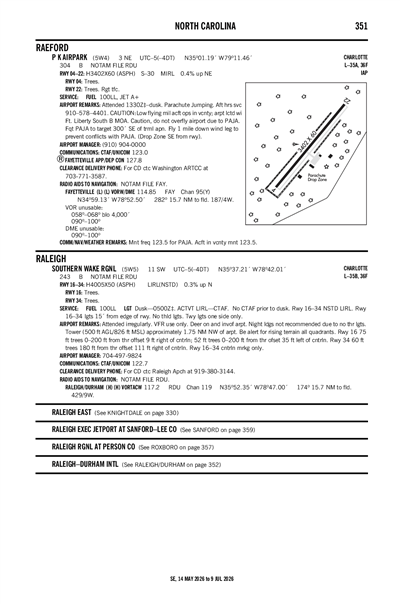

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KFBG (14nm)

RAW

Reported

Sun, 5/19 1:05 PM EDT

Valid

Sun, 5/19 1:00 PM EDT - Mon, 5/20 7:00 PM EDT

MVFR

1:00 PM EDT - 2:00 PM EDT

Overcast 2,500'
Broken 2,000'

Viz

6sm

Pres

29.94"Hg

Wind

040° 10kts

Gusts 15kts

VFR

Becoming 2:00 PM EDT - 5:00 PM EDT

Overcast 4,000'
Scattered 2,500'

Viz

6sm

Pres

29.91"Hg

Wind

040° 10kts

Gusts 15kts

MVFR

Becoming 5:00 PM EDT - 3:00 AM EDT

Broken 2,500'

Viz

6sm

Pres

29.91"Hg

Wind

050° 6kts

MVFR

Becoming 3:00 AM EDT - 6:00 AM EDT

Mist

Broken 1,000'

Viz

4.97sm

Pres

29.97"Hg

Wind

030° 6kts

MVFR

Becoming 6:00 AM EDT - 11:00 AM EDT

Broken 1,500'

Viz

6sm

Pres

30.00"Hg

Wind

030° 10kts

Gusts 15kts

VFR

Becoming 11:00 AM EDT - 7:00 PM EDT

Broken 4,000'

Viz

6sm

Pres

30.06"Hg

Wind

030° 9kts

TAF AMD KFBG 191705Z 1917/2023 04010G15KT 9999 BKN020 OVC025 QNH2995INS
   BECMG 1918/1919 04010G15KT 9999 SCT025 OVC040 QNH2992INS
   BECMG 1921/1922 05006KT 9999 BKN025 QNH2992INS
   BECMG 2007/2008 03006KT 8000 BR BKN010 QNH2997INS
   BECMG 2010/2012 03010G15KT 9999 NSW BKN015 QNH3001INS
   BECMG 2015/2017 03009KT 9999 BKN040 QNH3005INS TX24/2019Z TN15/2010Z

5W4

Domestic
5/14/241735Z	!RDU 05/182 5W4 OBST TOWER LGT (ASR 1017068) 350015.00N0790414.40W (6.0NM E 5W4) 712.9FT (485.9FT AGL) U/S 2405141735-2408120400
5/7/241703Z	!RDU 05/089 5W4 OBST TOWER LGT (ASR 1021791) 350143.30N0790531.10W (4.9NM E 5W4) 550.2FT (315.0FT AGL) U/S 2405071703-2405230400
4/4/241200Z	!RDU 04/051 5W4 AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF 350036N0791024W (1.7NM SSE 5W4) SFC-400FT AGL DLY 1200-0300 2404041200-2501020300
FDC
3/15/241344Z	!FDC 4/7672 5W4 IAP P K AIRPARK, RAEFORD, NC. VOR-A, AMDT 4... PROCEDURE NA. 2403151344-2603151344EST

ATC Tower

Attendance

0830-DUSK

Owner

BILLIE THACKER
PO DRAWER 1510
RAEFORD, NC 28376
Phone: 910-875-3261

Manager

JOEY D'ANNUNZIO
155 AIRPORT DRIVE
RAEFORD, NC 28376
Phone: (910) 904-0000

FSS

RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF

NOTAM

RDU

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Parachute Jump Activity
Annual Surveying

Runway 04/22

Dimensions

3402 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	33°	213°
Traffic Pattern	Left	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	35° 00' 57"N	35° 01' 26"N
Longitude	79° 11' 39"W	79° 11' 16"W
Elevation	292'	304'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	CAUTION: LOW FLYING MIL ACFT IN AREA; ARPT LCTD WITHIN AN MOA.
A110-2	FRQ PRCHT ACT TO TARGET 300 FT SE OF TERMINAL APRON.
A110-3	ACFT IN VICINITY MONITOR 123.5.
A110-4	FLY ONE MILE DOWN WIND LEG TO PREVENT CONFLICTS WITH PAJA (DROP ZONE SOUTHEAST FROM RWY).
A110-5	AFTER HOURS SVC 910-578-4401.
A110-6	MONITOR FREQ 123.5 FOR PAJA.
A110-7	FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A110-8	CTN DO NOT OVERFLY AIRPORT DUE TO PAJA.

P K AIRPARK (IATA: 5W4) is a public airport located in RAEFORD, NC.
