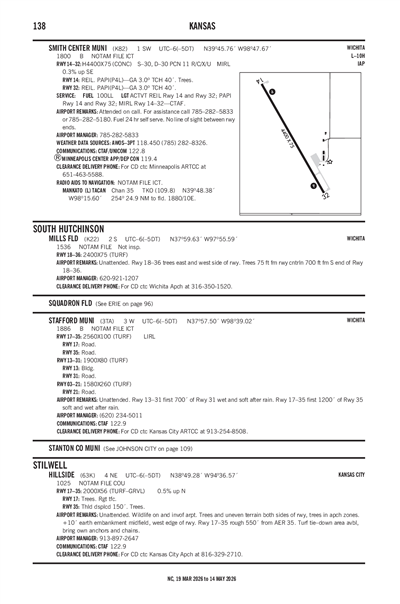

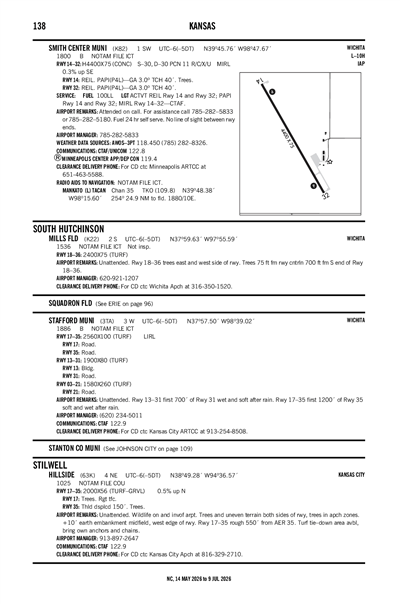

HILLSIDE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

63K
HILLSIDE
PublicPUB

4 miles NE of STILWELL, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 49' 16"N 94° 36' 34"W
1025' MSL
2025' MSL
05E
None Listed
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
5/16/24-6/13/24
KOJC (6nm) VFR
2:53 AM CDT
Clear
10sm
64°F
60°F
29.75"Hg
190° 7kts
AO2 SLP065 T01780156
KOJC 200753Z AUTO 19007KT 10SM CLR 18/16 A2975 RMK AO2 SLP065 T01780156
List Your Business

63K FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

63K Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

63K Hotels

No hotels are listed for this airport.

63K Restaurants

No restaurants are listed for this airport.

63K Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KIXD (13nm)
Mon, 5/20 1:28 AM CDT
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 2:00 AM CDT
Scattered 12,000'
Scattered 2,200'
6sm
210° 9kts
VFR
2:00 AM CDT - 3:00 AM CDT
Showers in vicinity
Broken 8,000'
6sm
200° 13kts
Gusts 24kts
VFR
3:00 AM CDT - 5:00 AM CDT
Thunderstorm in vicinity
Broken 20,000'
6sm
190° 9kts
VFR
5:00 AM CDT - 1:00 AM CDT
Broken 6,000'
6sm
160° 9kts
KIXD 200628Z 2006/2106 21009KT P6SM SCT022 SCT120
   FM200700 20013G24KT P6SM VCSH BKN080
   FM200800 19009KT P6SM VCTS BKN200CB
   FM201000 16009KT P6SM BKN060
63K
No NOTAM Available
No
UNATNDD
W. SHELDON/TOM TIETZE
16885 S. KENNETH RD
STILWELL, KS 66085
WILLIAM C. SHELDON
16935 S. KENNETH RD
STILWELL, KS 66085
Phone: 913-897-2647
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
--
N/A
Yes
No
No
Tie-Down
No
4
0
0
0
0
1
None
None
None
None
None

Runway 17/35

2000 ft. x 56 ft.
TURF GRVL
Fair
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Right Left
Markings
Markings Condition
Latitude 38° 49' 26"N 38° 49' 07"N
Longitude 94° 36' 34"W 94° 36' 34"W
Elevation 1,019' 1,010'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON & INVOF ARPT.
A110-2TREES AND UNEVEN TERRAIN BOTH SIDES OF RWY. TREES IN APCH ZONES.
A110-3+10 EARTH EMBANKMENT MID FLD, WEST DGE OF RWY.
A110-4FOR CD CTC KANSAS CITY APCH AT 816-329-2710.
HILLSIDE (IATA: 63K) is a public airport located in STILWELL, KS.
