SPRINGFIELD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

8V7
SPRINGFIELD MUNI
PublicPUB

4 miles N of SPRINGFIELD, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 27' 31"N 102° 37' 05"W
4390' MSL
5390' MSL
08E
100LL
DENVER (DEN)
WICHITA
ALBUQUERQUE (ZAB)
5/16/24-6/13/24
K8V7 VFR
3:55 AM MDT
No Clouds
10sm
48°F
46°F
29.82"Hg
310° 5kts
AO2
K8V7 200955Z AUTO 31005KT 10SM 09/08 A2982 RMK AO2
List Your Business

8V7 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

8V7 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

8V7 Hotels

No hotels are listed for this airport.

8V7 Restaurants

No restaurants are listed for this airport.

8V7 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
719-563-1028
 118.975

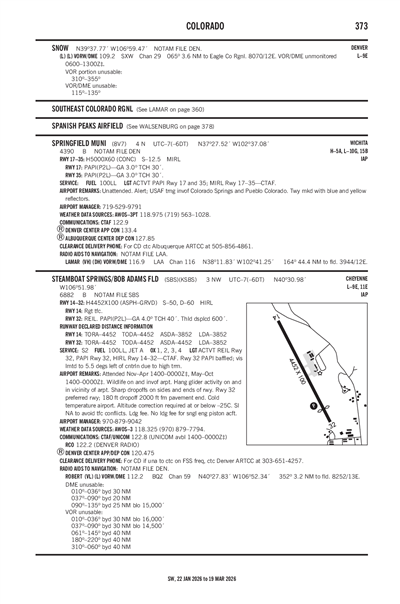

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGUY (71nm)
Mon, 5/20 4:30 AM CDT
Mon, 5/20 5:00 AM CDT - Tue, 5/21 1:00 AM CDT
LIFR
5:00 AM CDT - 12:00 PM CDT
Broken 400'
6sm
310° 8kts
VFR
12:00 PM CDT - 6:00 PM CDT
Few 20,000'
6sm
330° 7kts
VFR
6:00 PM CDT - 10:00 PM CDT
Scattered 25,000'
6sm
180° 12kts
VFR
10:00 PM CDT - 1:00 AM CDT
Few 25,000'
6sm
200° 10kts
KGUY 200930Z 2010/2106 31008KT P6SM BKN004
   FM201700 33007KT P6SM FEW200
   FM202300 18012KT P6SM SCT250
   FM210300 20010KT P6SM FEW250
8V7
Domestic
5/15/240400Z !DEN 05/364 8V7 OBST TOWER LGT (ASR 1026307) 373324.00N1022621.00W (10.3NM NE 8V7) 4471.1FT (303.1FT AGL) U/S 2405150400-2406142359
1/10/241957Z !DEN 01/156 8V7 SVC WX REP CEILING NOT AVBL 2401101957-2406282300
No
UNATNDD
TOWN OF SPRINGFIELD
PO BOX 4
SPRINGFIELD, CO 81073
Phone: 719-523-6524
BRETT FIGGINS
PO BOX 4
SPRINGFIELD, CO 81073
Phone: 719-529-9791
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 17/35

5000 ft. x 60 ft.
CONC
Good
NONE
MED

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 27' 56"N 37° 27' 07"N
Longitude 102° 37' 05"W 102° 37' 04"W
Elevation 4,390' 4,388'
Threshold Crossing Height 30 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TWY MKD WITH BLUE & YELLOW REFLECTORS.
A110-2ALERT; USAF TRNG INVOF COLORADO SPRINGS & PUEBLO COLORADO.
A110-3FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
SPRINGFIELD MUNI (IATA: 8V7) is a public airport located in SPRINGFIELD, CO.
