WALHALLA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

96D
WALHALLA MUNI
PublicPUB

1 miles NE of WALHALLA, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
48° 56' 26"N 97° 54' 10"W
953' MSL
1953' MSL
07E
100LL
GRAND FORKS (GFK)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
K96D VFR
5:15 AM CDT
Overcast 7,000'
Broken 5,500'
8sm
50°F
50°F
29.83"Hg
320° 4kts
AO2
K96D 201015Z AUTO 32004KT 8SM BKN055 OVC070 10/10 A2983 RMK AO2
List Your Business

96D FBOs, Flight Schools and Ground Support

Promote Listing
Walhalla Aviation
Freq: 122.9
Phone: (701) 549-3500
Other: (701) 265-2617
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.75
Full Serve

96D Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

96D Hotels

No hotels are listed for this airport.

96D Restaurants

No restaurants are listed for this airport.

96D Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
701-549-3402
 118.175

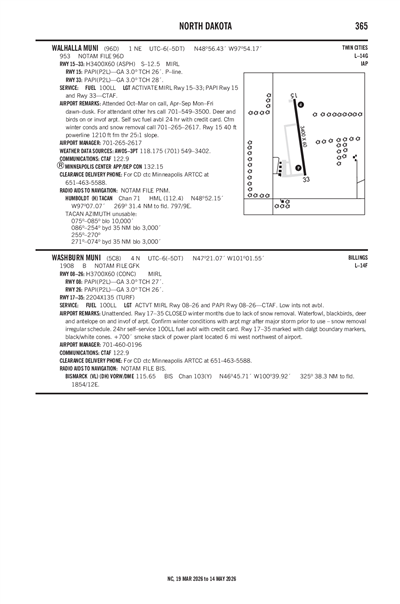

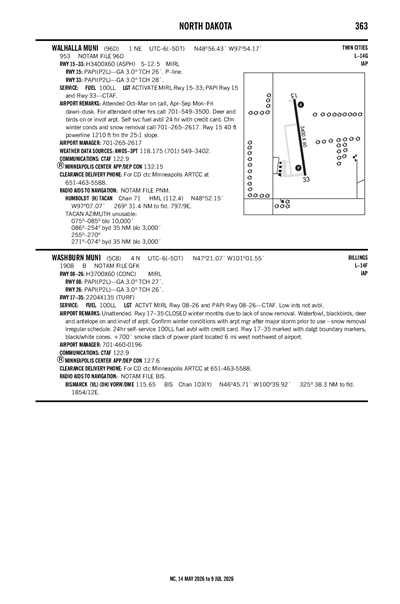

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRDR (63nm)
Mon, 5/20 5:00 AM CDT
Mon, 5/20 5:00 AM CDT - Tue, 5/21 11:00 AM CDT
VFR
5:00 AM CDT - 8:00 AM CDT
Few 3,000'
6sm
29.76"Hg
VRB° 6kts
VFR
Becoming 8:00 AM CDT - 8:00 PM CDT
Broken 4,000'
6sm
29.82"Hg
350° 12kts
VFR
Becoming 8:00 PM CDT - 8:00 AM CDT
Scattered 4,500'
6sm
29.82"Hg
VRB° 6kts
VFR
Becoming 8:00 AM CDT - 11:00 AM CDT
Sky Clear
6sm
29.85"Hg
060° 12kts
Gusts 18kts
TAF KRDR 201000Z 2010/2116 VRB06KT 9999 FEW030 QNH2976INS
   BECMG 2013/2014 35012KT 9999 BKN040 QNH2981INS
   BECMG 2101/2102 VRB06KT 9999 SCT045 QNH2983INS
   BECMG 2113/2114 06012G18KT 9999 SKC QNH2984INS TX19/2021Z TN09/2110Z
96D
Domestic
5/3/241257Z !96D 05/001 96D RWY 15 PAPI UNUSABLE 2405031257-2411042111EST
4/22/241858Z !96D 04/002 96D OBST TOWER LGT (ASR 1038868) 484541.60N0975826.30W (11.1NM SSW 96D) 1755.2FT (284.1FT AGL) U/S 2404221858-2408212359
No
OCT-MAR ON CALL
APR-SEP M-F DAWN-DUSK
FOR ATTENDANT OTR HRS CALL 701-549-3500.
WALHALLA ARPT AUTHORITY
PO BOX 306
WALHALLA, ND 58282
Phone: 701-549-3500
DAVID CARIGNAN
PO BOX 306
WALHALLA, ND 58282
Phone: 701-265-2617
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
96D
--
ACTVT MIRL RY 15/33 & PAPI RY 15 & 33 - CTAF.
N/A
No
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
12
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 15/33

3400 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 171°351°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 48° 56' 43"N 48° 56' 09"N
Longitude 97° 54' 14"W 97° 54' 06"W
Elevation 953' 952'
Threshold Crossing Height 26 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1CFM WINTER CONDS & SN REMOVAL CALL 701-265-2617.
A110-4DEER AND BIRDS ON OR INVOF ARPT.
A110-5FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-6RWY 15 40 FT POWERLINE 1210 FT FM THR 25:1 SLOPE.
WALHALLA MUNI (IATA: 96D) is a public airport located in WALHALLA, ND.
