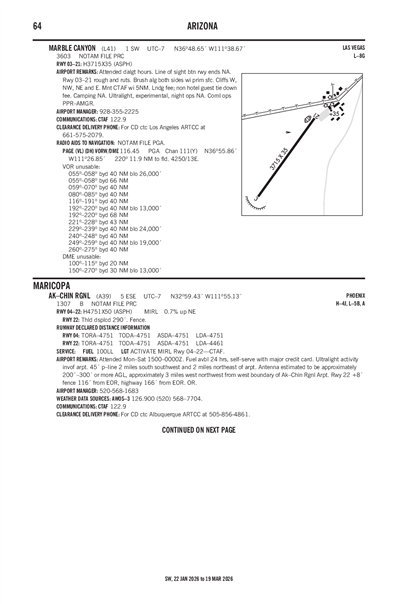

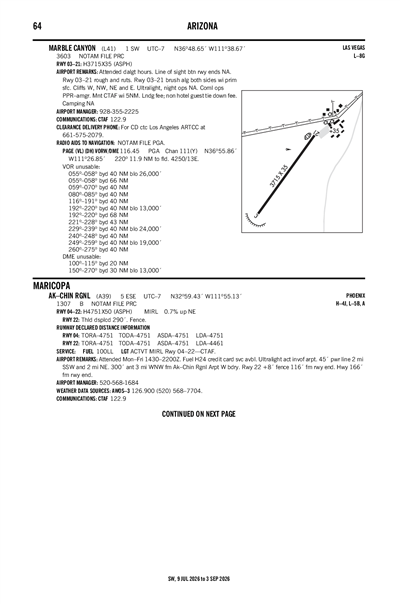

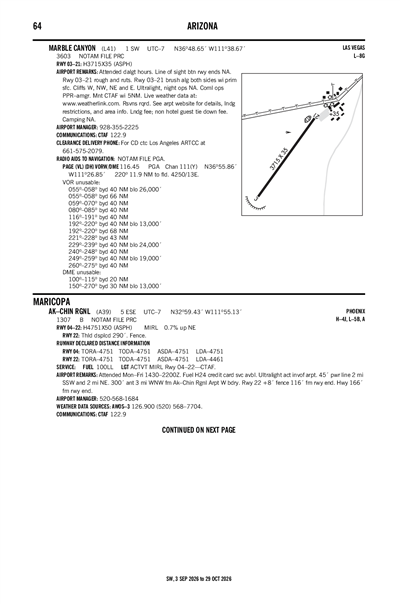

AK-CHIN RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

A39
AK-CHIN RGNL
PublicPUB

5 miles ESE of MARICOPA, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 59' 26"N 111° 55' 08"W
1307' MSL
2307' MSL
12E
100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
5/16/24-6/13/24
KA39 VFR
11:35 PM MST
Clear
10sm
68°F
21°F
29.85"Hg
150° 6kts
AO2
KA39 200635Z AUTO 15006KT 10SM CLR 20/M06 A2985 RMK AO2
List Your Business

A39 FBOs, Flight Schools and Ground Support

Promote Listing
Ak-Chin Indian Community
Freq: 122.9
Phone: (520) 568-1683
Other: (520) 709-8914
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.47
Full Serve

A39 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

A39 Hotels

No hotels are listed for this airport.

A39 Restaurants

No restaurants are listed for this airport.

A39 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
520-568-7704
 126.9

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KIWA (23nm)
Sun, 5/19 10:20 PM MST
Sun, 5/19 11:00 PM MST - Mon, 5/20 11:00 PM MST
VFR
11:00 PM MST - 1:00 AM MST
Sky Clear
6sm
VRB° 4kts
VFR
1:00 AM MST - 10:00 AM MST
Scattered 25,000'
6sm
130° 8kts
VFR
10:00 AM MST - 12:00 PM MST
Broken 20,000'
Scattered 15,000'
6sm
230° 12kts
VFR
12:00 PM MST - 7:00 PM MST
Broken 16,000'
Scattered 12,000'
6sm
260° 14kts
Gusts 24kts
VFR
Temporary 3:00 PM MST - 5:00 PM MST
No Clouds
N/A
240° 25kts
Gusts 36kts
VFR
7:00 PM MST - 11:00 PM MST
Sky Clear
6sm
240° 8kts
KIWA 200520Z 2006/2106 VRB04KT P6SM SKC
   FM200800 13008KT P6SM SCT250
   FM201700 23012KT P6SM SCT150 BKN200
   FM201900 26014G24KT P6SM SCT120 BKN160
   TEMPO 2022/2024 24025G36KT
   FM210200 24008KT P6SM SKC AMD LTD TO CLD VIS AND WIND TIL 201200
A39
Domestic
9/18/191423Z !PRC 09/134 A39 AIRSPACE SEE TFD 06/129 UAS 1909181423-PERM
No
MON-SAT 0800-1700
AK CHIN INDIAN COMMUNITY
42507 WEST PETERS AND NALL, BOX 1
MARICOPA, AZ 85138
Phone: 520-568-1000
TIMOTHY COSTELLO
32514 W. BUD RD
MARICOPA, AZ 85138
Phone: 520-568-1683
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTIVATE MIRL RWY. 4-22 - CTAF.
N/A
Yes
Yes
No
Tie-Down
No
12
1
0
0
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 04/22

4751 ft. x 50 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 04 Runway 22
True Heading 48°228°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 59' 10"N 32° 59' 42"N
Longitude 111° 55' 29"W 111° 54' 47"W
Elevation 1,275' 1,306'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ANTENNA ESTIMATED TO BE APPROXIMATELY 200 FT - 300 FT OR MORE ABOVE GROUND LEVEL, APPROXIMATELY 3 MILES WNW FM WEST BOUNDARY OF AK-CHIN RGNL ARPT.
A110-245 FT PLINE 2 MILES SSW AND 2 MILES NE OF ARPT.
A110-3RY 22+8 FT. FENCE 116 FT FM EOR, HIGHWAY 166 FT FM EOR. OR.
A110-4ULTRALIGHT ACTIVITY INVOF ARPT.
A110-5AWOS FREQ. 126.9, LAND LINE 520-568-7704.
A110-6FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
AK-CHIN RGNL (IATA: A39) is a public airport located in MARICOPA, AZ.
