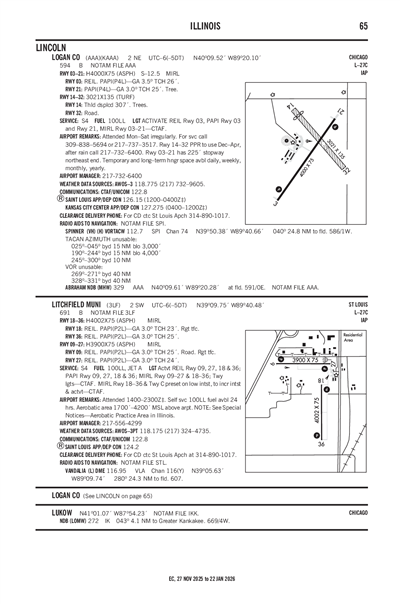

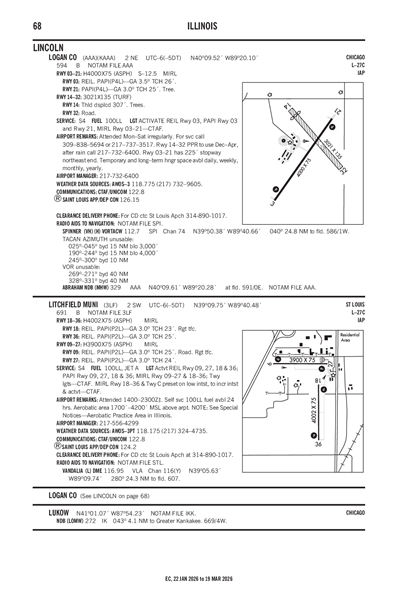

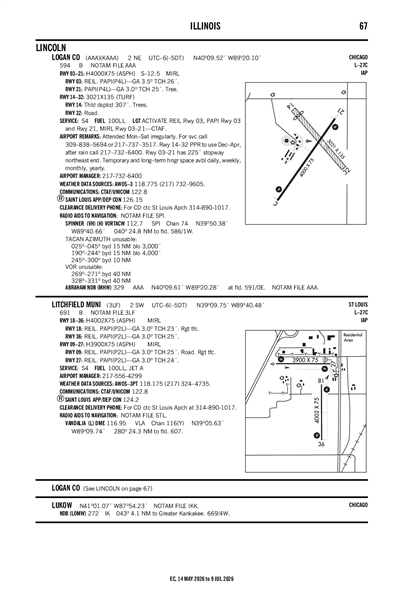

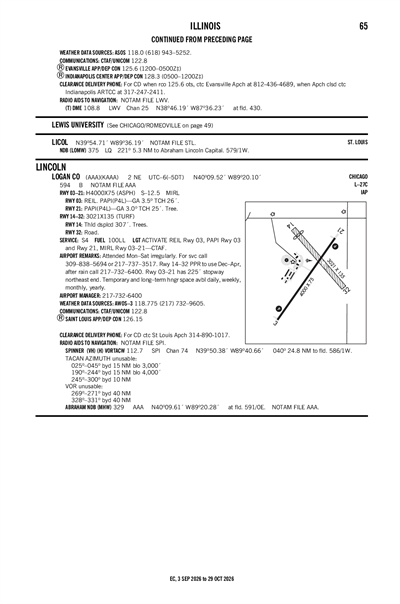

LOGAN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAAA
LOGAN COUNTY
PublicPUB

2 miles NE of LINCOLN, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 09' 31"N 89° 20' 06"W
594' MSL
1594' MSL
00E
100LL
SAINT LOUIS (STL)
CHICAGO
CHICAGO (ZAU)
5/16/24-6/13/24
KAAA VFR
12:35 AM CDT
Clear
10sm
73°F
66°F
29.92"Hg
150° 3kts
AO2 T02300190
KAAA 200535Z AUTO 15003KT 10SM CLR 23/19 A2992 RMK AO2 T02300190
List Your Business

KAAA FBOs, Flight Schools and Ground Support

Promote Listing
Logan County
Freq: 122.8
Phone: (217) 732-6400
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/30
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.30
Full Serve

KAAA Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KAAA Hotels

No hotels are listed for this airport.

KAAA Restaurants

No restaurants are listed for this airport.

KAAA Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
217-732-9605
 118.775

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSPI (25nm)
Mon, 5/20 12:20 AM CDT
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 6:00 AM CDT
Broken 25,000'
6sm
VRB° 5kts
VFR
6:00 AM CDT - 9:00 AM CDT
Thunderstorm in vicinity
Broken 12,000'
Scattered 6,000'
6sm
180° 8kts
VFR
9:00 AM CDT - 1:00 PM CDT
Broken 25,000'
Scattered 12,000'
6sm
190° 15kts
Gusts 23kts
VFR
1:00 PM CDT - 1:00 AM CDT
Broken 8,000'
Scattered 5,000'
6sm
220° 15kts
Gusts 22kts
VFR
Temporary 2:00 PM CDT - 4:00 PM CDT
Light Thunderstorm and Rain
Broken 5,000'
6sm
201° 100kts
KSPI 200520Z 2006/2106 VRB05KT P6SM BKN250
   FM201100 18008KT P6SM VCTS SCT060CB BKN120
   FM201400 19015G23KT P6SM SCT120 BKN250
   FM201800 22015G22KT P6SM SCT050 BKN080
   TEMPO 2019/2021 6SM -TSRA BKN050CB AMD NOT SKED TIL 201100
KAAA
Domestic
5/16/240520Z !AAA 05/008 AAA OBST TOWER LGT (ASR 1295574) 401024.80N0891838.20W (1.4NM NE AAA) 750.7FT (149.9FT AGL) U/S 2405160520-2405310420
5/1/240126Z !AAA 05/001 AAA OBST TOWER LGT (ASR 1045115) 402310.90N0892351.20W (14.0NM NNW AAA) 995.1FT (344.2FT AGL) U/S 2405010126-2408290126
No
MON-SAT IREG
FOR SVC CALL 309-838-5694 OR 217-737-3517.
LOGAN COUNTY BOARD
COUNTY COURTHOUSE, P.O. BOX 39
LINCOLN, IL 62656
Phone: 217-732-6400
GENE ROHLFS
COUNTY COURT HOUSE, P.O. BOX 39
LINCOLN, IL 62656
Phone: 217-732-6400
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
AAA
--
ACTVT REIL RWY 03; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
26
0
0
1
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

4000 ft. x 75 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 35°215°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 09' 12"N 40° 09' 44"N
Longitude 89° 20' 24"W 89° 19' 54"W
Elevation 593' 594'
Threshold Crossing Height 26 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 14/32

3021 ft. x 135 ft.
TURF
Good
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 144°324°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 09' 48"N 40° 09' 24"N
Longitude 89° 20' 14"W 89° 19' 51"W
Elevation 590' 589'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1TEMPO AND LONG-TERM HNGR SPACE AVBL - DLY, WEEKLY, MONTHLY, YEARLY.
A110-2FOR CD CTC ST LOUIS APCH 314-890-1017.
A110-3(CONTACT PHONE NR) ADDITIONAL OPERATOR PHONE NUMBER: 217-737-3517.
LOGAN COUNTY (ICAO: KAAA, IATA: AAA) is a public airport located in LINCOLN, IL.
