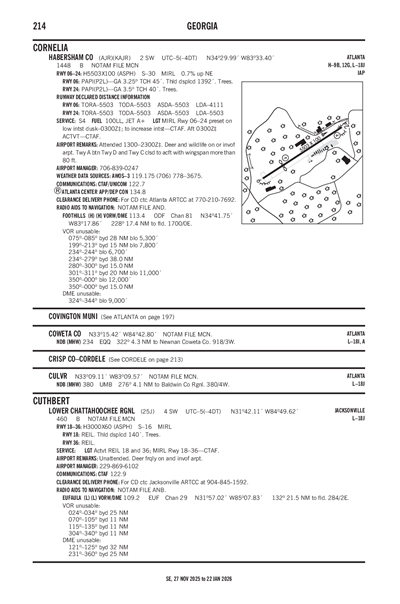

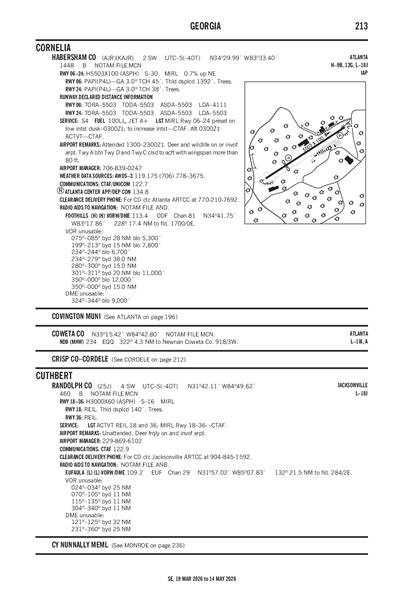

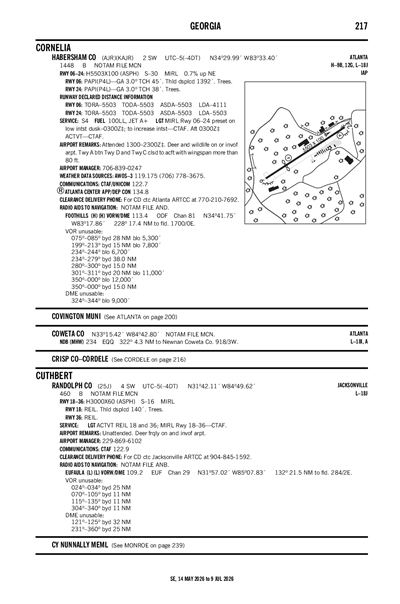

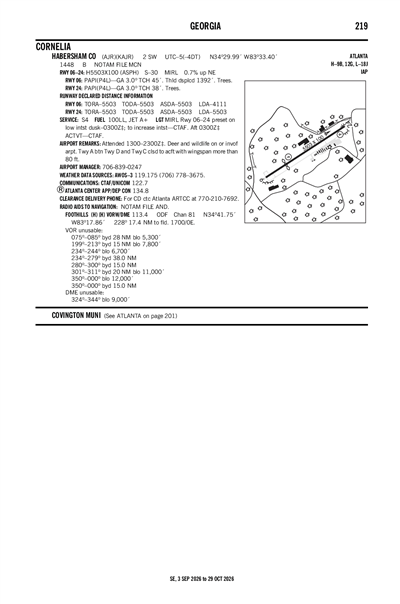

HABERSHAM COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAJR
HABERSHAM COUNTY
PublicPUB

2 miles SW of CORNELIA, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 29' 59"N 83° 33' 24"W
1448' MSL
2448' MSL
06W
Jet A+, 100LL
MACON (MCN)
ATLANTA
ATLANTA (ZTL)
5/16/24-6/13/24
KAJR VFR
6:15 AM EDT
Clear
7sm
60°F
59°F
30.04"Hg
Calm
AO2 T01560151
KAJR 201015Z AUTO 00000KT 7SM CLR 16/15 A3004 RMK AO2 T01560151
List Your Business

KAJR FBOs, Flight Schools and Ground Support

Habersham County Airport
Freq: 122.7
Phone: (706) 839-0247
No Rating Available
1 Review (Read | Sign In To Write)
1 out of 1 Recommend
World Fuel
As of 4/27
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.90
Full Serve 6.40 5.60

KAJR Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KAJR Hotels

No hotels are listed for this airport.

KAJR Restaurants

No restaurants are listed for this airport.

KAJR Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
706-778-3675
 119.175

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAHN (35nm)
Mon, 5/20 1:20 AM EDT
Mon, 5/20 2:00 AM EDT - Tue, 5/21 2:00 AM EDT
VFR
2:00 AM EDT - 3:00 AM EDT
Few 12,000'
6sm
Calm
VFR
3:00 AM EDT - 11:00 AM EDT
Few 5,000'
Few 1,000'
6sm
Calm
VFR
11:00 AM EDT - 6:00 PM EDT
Few 25,000'
Few 4,000'
6sm
070° 3kts
VFR
6:00 PM EDT - 2:00 AM EDT
Few 25,000'
6sm
Calm
KAHN 200520Z 2006/2106 00000KT P6SM FEW120
   FM200700 00000KT P6SM FEW010 FEW050
   FM201500 07003KT P6SM FEW040 FEW250
   FM202200 00000KT P6SM FEW250
KAJR
Domestic
5/18/241400Z !MCN 05/655 AJR RWY 06/24 CLSD 2405181400-2405212200
5/16/242130Z !MCN 05/601 AJR OBST TOWER LGT (ASR 1239175) 343151.10N0832829.30W (4.5NM ENE AJR) 1743.1FT (262.1FT AGL) U/S 2405162130-2405312030
5/10/240045Z !MCN 05/380 AJR OBST TOWER LGT (ASR 1019545) 344213.30N0834152.80W (14.0NM NNW AJR) 2017.1FT (294.0FT AGL) U/S 2405100045-2408070400
5/3/240226Z !MCN 05/069 AJR OBST TOWER LGT (ASR 1024614) 343052.00N0833140.10W (1.7NM ENE AJR) 1655.8FT (127.0FT AGL) U/S 2405030226-2406170225
5/1/240007Z !MCN 05/001 AJR OBST TOWER LGT (ASR 1020215) 343124.00N0834046.00W (6.2NM WNW AJR) 2206.4FT (803.1FT AGL) U/S 2405010007-2406012359
3/25/240000Z !MCN 03/655 AJR OBST TOWER LGT (ASR 1019544) 343355.70N0833119.50W (4.3NM NNE AJR) 1710.0FT (294.0FT AGL) U/S 2403250000-2406220400
3/21/240657Z !MCN 03/544 AJR OBST TOWER LGT (ASR 1054411) 342429.00N0833838.00W (7.1NM SW AJR) 1604.3FT (259.2FT AGL) U/S 2403210657-2406190400
No
0800-1800
HABERSHAM COUNTY
555 MONROE STREET, UNIT 20
CLARKESVILLE, GA 30523
Phone: (706) 839-0200
BILL HARDEN
1112 AIRPORT ROAD
CORNELIA, GA 30531
Phone: 706-839-0247
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
MIRL RWY 06/24 PRESET ON LOW INTST DUSK-2200; TO INCR INTST - CTAF. AFT 2200 ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
59
4
0
1
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 06/24

5503 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 06 Runway 24
True Heading 57°237°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 34° 29' 45"N 34° 30' 14"N
Longitude 83° 33' 52"W 83° 32' 56"W
Elevation 1,403' 1,447'
Threshold Crossing Height 45 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.25° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 24 - CALM WIND RWY.
A110-2DEER & WILDLIFE ON OR INVOF ARPT.
A110-3FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-4RISING TRRN NW OF RWY 06/24 STARTING AT 120 FT FROM RCL.
A110-5TWY A BTN TWY D AND TWY C CLSD TO ACFT WINGSPAN MORE THAN 80 FT.
HABERSHAM COUNTY (ICAO: KAJR, IATA: AJR) is a public airport located in CORNELIA, GA.
