KBXM
BRUNSWICK EXEC
Public
PUB
2 miles SE of BRUNSWICK, ME
View on
Map
Status
Operational
Coordinates
43° 53' 32"N
69° 56' 20"W
Elevation
75' MSL
Pattern Alt
1075' MSL
Mag Variation
18W
Fuel
Jet A+, 100LL
FSS
BANGOR (BGR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
5/16/24-6/13/24
KIWI (11nm)
MVFR
10:53 PM EDT
RAW
Overcast 1,400'
Viz
10sm
Temp
51°F
Dew
49°F
Pres
30.09"Hg
Wind
Calm
RMK
AO2 SLP188 T01060094 50001
KIWI 200253Z AUTO 00000KT 10SM OVC014 11/09 A3009 RMK AO2 SLP188 T01060094 50001
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
KBXM FBOs, Flight Schools and Ground Support
Promote Listing
FlightLevel Aviation
Freq: 122.725
Phone: (207) 406-2081
0 Reviews
(
Read
|
Sign In To Write
)
Titan
As of
5/9
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
Full Serve
6.95
6.60
6.70
KBXM Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
KBXM Hotels
No hotels are listed for this airport.
KBXM Restaurants
No restaurants are listed for this airport.
KBXM Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.725
CTAF
122.725
AWOS-3PT
AWOS-3PT
207-409-1747
134.875

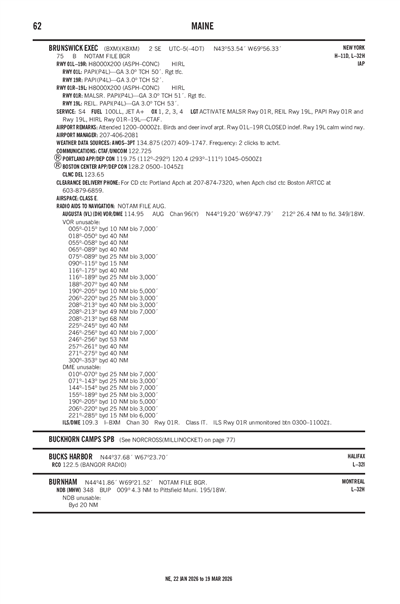

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 01R
RNAV (GPS) RWY 01R
RNAV (GPS) RWY 19L
Terminal Area Forecast
KPWM (22nm)
RAW
Reported
Sun, 5/19 9:14 PM EDT
Valid
Sun, 5/19 9:00 PM EDT - Mon, 5/20 8:00 PM EDT
MVFR
9:00 PM EDT - 12:00 AM EDT
Overcast 1,000'
Viz
6sm
Wind
Calm
IFR
12:00 AM EDT - 2:00 AM EDT
Mist
Overcast 700'
Scattered 300'
Viz
2sm
Wind
Calm
LIFR
2:00 AM EDT - 8:00 AM EDT
Mist
Overcast 300'
Viz
1sm
Wind
Calm
IFR
8:00 AM EDT - 12:00 PM EDT
Overcast 700'
Viz
6sm
Wind
VRB° 3kts
MVFR
12:00 PM EDT - 8:00 PM EDT
Broken 2,500'
Viz
6sm
Wind
140° 5kts
KPWM 200114Z 2001/2024 00000KT P6SM OVC010
FM200400 00000KT 2SM BR SCT003 OVC007
FM200600 00000KT 1SM BR OVC003
FM201200 VRB03KT P6SM OVC007
FM201600 14005KT P6SM BKN025
KBXM
Domestic
5/10/24
1943Z
!BGR 05/084 BXM NAV ILS RWY 01R U/S 2405101943-2405232359
8/2/16
1449Z
!BGR 08/011 BXM OBST TOWER (ASR UNKNOWN) 435343N0695679 (8.21NM SW
BXM) UNKNOWN (90FT AGL)
OUT OF SERVICE
1608021449-PERM
FDC
1/31/24
1956Z
!FDC 4/9945 BXM IAP BRUNSWICK EXEC, BRUNSWICK, ME.
ILS OR LOC RWY 1R, AMDT 1...
TERMINAL ROUTE FROM AUG VOR/DME TO BAILI NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
AUG VOR/DME R-206 RESTRICTED BEYOND 25NM AND BELOW 2900FT.
2401311956-2601311956EST
ATC Tower
No
Attendance
0700-1900
Owner
MIDCOAST RGNL REDEVELOPMENT AUTH
15 TERMINAL DRIVE
BRUNSWICK, ME 04011
Phone: (207) 798-6512
Manager
JIM NALL
15 TERMINAL DRIVE
BRUNSWICK, ME 04011
Phone: 207-406-2081
FSS
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
NOTAM
BGR
Light Schedule
--
Lights
ACTVT MALSR RWY 01R; REIL RWY 19L; PAPI RWY 01R & 19L; HIRL RWY 01R/19L - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
No
# Single Engine
49
# Multi Engine
4
# Jets
3
# Helicopters
1
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High & Low Pressure
Bulk Oxygen
High & Low Pressure
Other Services
Charter Service
Pilot Instruction
Aircraft Rental
Runway 01L/19R
Dimensions
8000 ft. x 200 ft.
Surface Type
ASPH
Surface Cond
CONC
Treatment
NONE
Rwy Edge Lgts
HIGH
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 01L
Runway 19R
True Heading
354°
174°
Traffic Pattern
Right
Left
Markings
PIR
PIR
Markings Condition
FAIR
FAIR
Latitude
43° 52' 53"N
43° 54' 12"N
Longitude
69° 56' 20"W
69° 56' 29"W
Elevation
63'
74'
Threshold Crossing Height
50 ft. AGL
52 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
Runway 01R/19L
Dimensions
8000 ft. x 200 ft.
Surface Type
ASPH
Surface Cond
CONC
Treatment
NONE
Rwy Edge Lgts
HIGH
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 01R
Runway 19L
True Heading
354°
174°
Traffic Pattern
Right
Left
Markings
PIR
PIR
Markings Condition
FAIR
FAIR
Latitude
43° 52' 53"N
43° 54' 12"N
Longitude
69° 56' 10"W
69° 56' 20"W
Elevation
62'
74'
Threshold Crossing Height
51 ft. AGL
53 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
MALSR
Centerline Lights
No
No
Runway End Identifier Lights
Yes
A110-1
BIRDS AND DEER INVOF OF ARPT.
A110-4
FOR CD CTC PORTLAND APCH AT 207-874-7320, WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
BRUNSWICK EXEC (ICAO: KBXM, IATA: BXM) is a public airport located in BRUNSWICK, ME.
