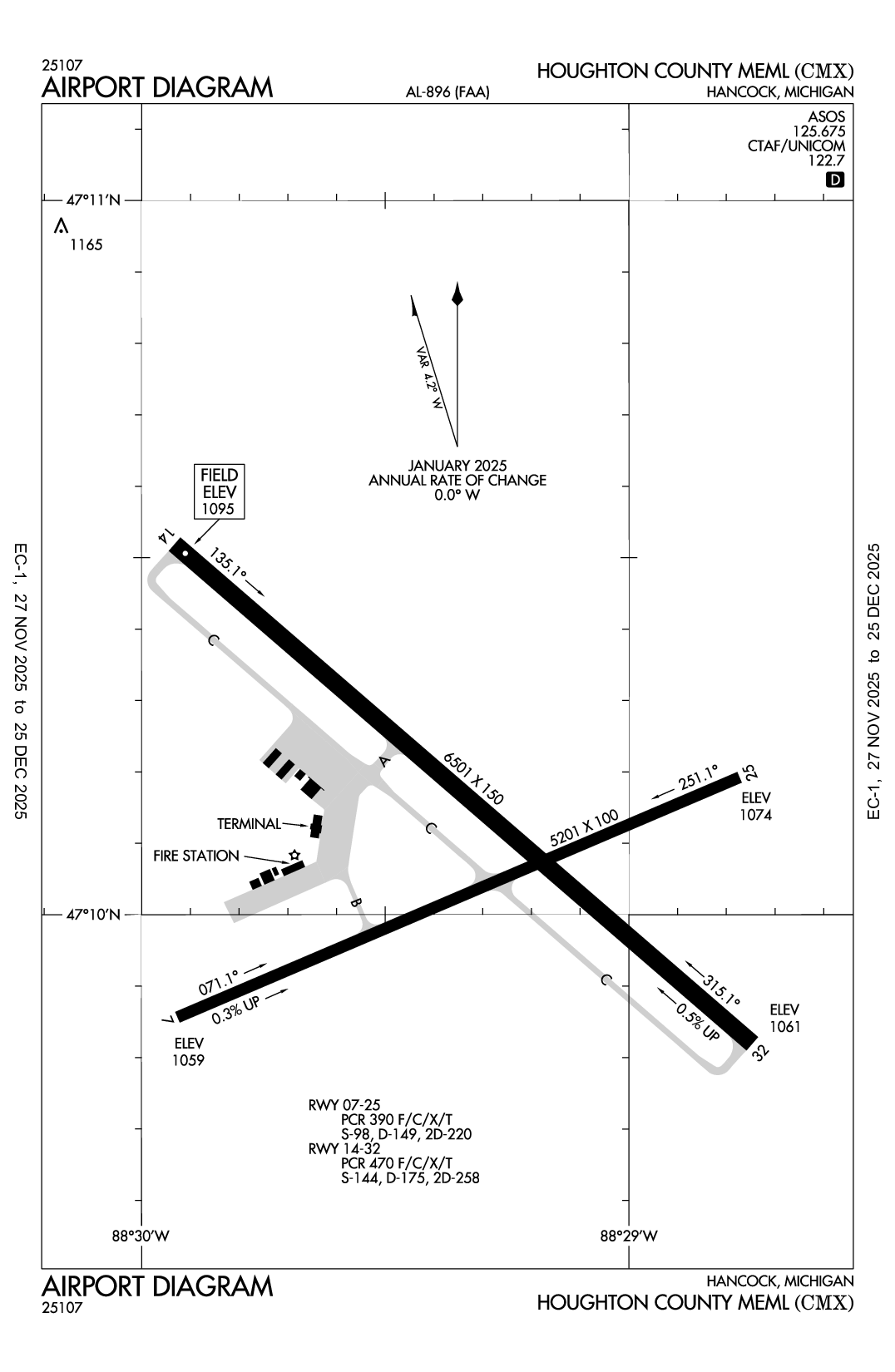

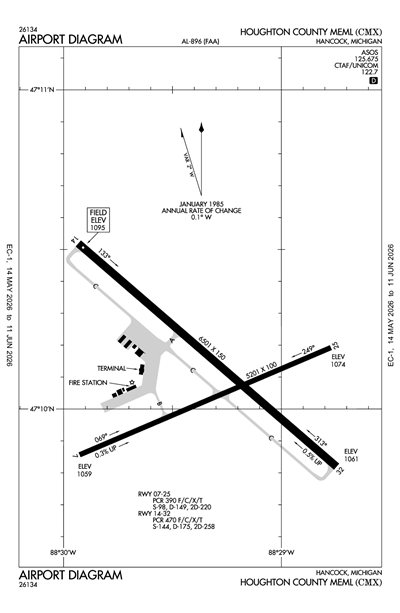

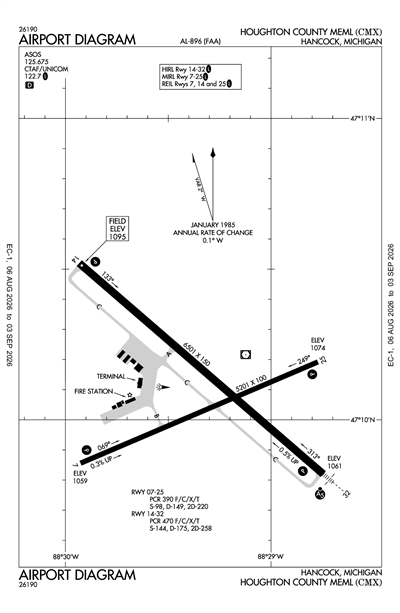

HOUGHTON COUNTY MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCMX
HOUGHTON COUNTY MEML
PublicPUB

4 miles NE of HANCOCK, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 10' 06"N 88° 29' 21"W
1095' MSL
2095' MSL
02W
Jet A, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KCMX VFR
6:53 AM EDT
Overcast 10,000'
10sm
57°F
43°F
29.89"Hg
130° 4kts
AO2 SLP118 T01390061
KCMX 201053Z AUTO 13004KT 10SM OVC100 14/06 A2989 RMK AO2 SLP118 T01390061
List Your Business

KCMX FBOs, Flight Schools and Ground Support

Promote Listing
Houghton County Memorial Airport
Freq: 122.7
Phone: (906) 482-3970
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.54 6.78 6.98
Promote Listing
Sparrow Aviation
Freq: 122.7
Phone: (844) 325-9700
No Rating Available
0 Reviews (Read | Sign In To Write)

KCMX Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCMX Hotels

No hotels are listed for this airport.

KCMX Restaurants

No restaurants are listed for this airport.

KCMX Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

ASOS

ASOS
906-482-4248
 125.675

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCMX
Mon, 5/20 7:20 AM EDT
Mon, 5/20 8:00 AM EDT - Tue, 5/21 8:00 AM EDT
VFR
8:00 AM EDT - 10:00 AM EDT
Broken 9,000'
6sm
VRB° 3kts
VFR
10:00 AM EDT - 5:00 PM EDT
Showers in vicinity
Overcast 8,000'
6sm
210° 5kts
VFR
5:00 PM EDT - 12:00 AM EDT
Overcast 4,000'
6sm
090° 5kts
MVFR
12:00 AM EDT - 3:00 AM EDT
Broken 1,900'
6sm
VRB° 3kts
IFR
3:00 AM EDT - 8:00 AM EDT
Mist
Broken 700'
2sm
VRB° 3kts
KCMX 201120Z 2012/2112 VRB03KT P6SM BKN090
   FM201400 21005KT P6SM VCSH OVC080
   FM202100 09005KT P6SM OVC040
   FM210400 VRB03KT P6SM BKN019
   FM210700 VRB03KT 2SM BR BKN007
KCMX
Domestic
5/18/240154Z !CMX 05/024 CMX OBST TOWER LGT (ASR 1037312) 470613.00N0883404.00W (5.0NM SW CMX) 1423.9FT (403.5FT AGL) U/S 2405180154-2406292359
4/30/241424Z !CMX 04/080 CMX OBST TOWER LGT (ASR 1243369) 470212.60N0884131.40W (11.4NM SW CMX) 1734.9FT (318.9FT AGL) U/S 2404301424-2408262359
3/14/240040Z !CMX 03/022 CMX OBST TOWER LGT (ASR 1007829) 470211.00N0884143.00W (11.6NM SW CMX) 2007.9FT (498.7FT AGL) U/S 2403140040-2406302359
No
0400-0000
HOUGHTON COUNTY
23810 AIRPARK BLVD STE 113
CALUMET, MI 49913-9233
Phone: 906-482-3970
DENNIS M HEXT
23810 AIRPARK BLVD STE 113
CALUMET, MI 49913-9233
Phone: 906-482-3970
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
CMX
--
ACTVT MALSR RWY 32; REIL RWY 14; PAPI RWY 14 & 32; HIRL RWY 14/32 - CTAF. ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25; TWY B - CTC CO MAINT VIA CTAF.
N/A
Yes - Lighted
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
20
2
0
0
0
0
Major
Major
None
None
Pilot Instruction

Runway 07/25

5201 ft. x 100 ft.
ASPH
Good
GRVD
MED
18 /F/C/X/U
70,000lbs
100,000lbs
185,000lbs
--
  Runway 07 Runway 25
True Heading 67°247°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 09' 51"N 47° 10' 12"N
Longitude 88° 29' 56"W 88° 28' 46"W
Elevation 1,059' 1,074'
Threshold Crossing Height 30 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

6500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
21 /F/C/X/U
70,000lbs
100,000lbs
185,000lbs
--
  Runway 14 Runway 32
True Heading 131°311°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 10' 31"N 47° 09' 49"N
Longitude 88° 29' 56"W 88° 28' 45"W
Elevation 1,095' 1,061'
Threshold Crossing Height 43 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1DEER & GULLS ON & INVOF ARPT.
A110-2AIRFIELD GUIDANCE SIGNS SNOW COVD IN WINTER.
A110-5PAEW ON ARPT MONITOR CTAF. FQT SNOW REMOVAL OPS IN PROGRESS AT VARIOUS TIMES OCT-APR MONITOR CTAF.
A110-6PPR VIA UNICOM FOR PRKG IN FRONT OF AIRLINE TRML.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-8RWY CONDS UNMON DLY 0000-0500.
HOUGHTON COUNTY MEML (ICAO: KCMX, IATA: CMX) is a public airport located in HANCOCK, MI.
