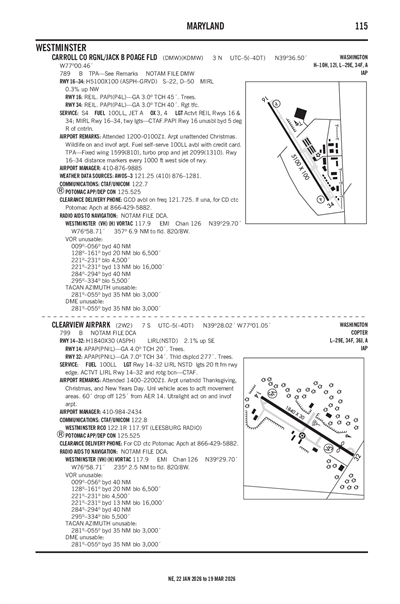

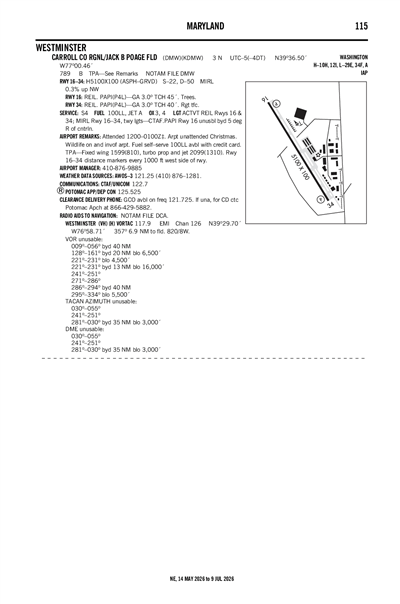

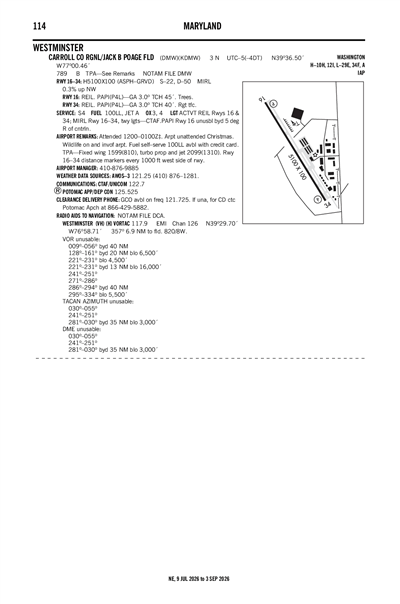

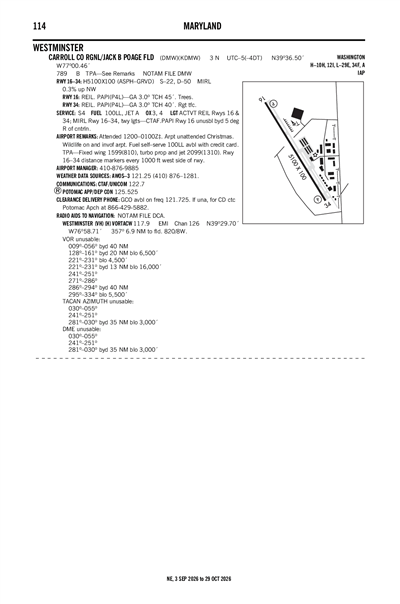

CARROLL COUNTY RGNL/JACK B POAGE FLD - Airport Diagram

KDMW

CARROLL COUNTY RGNL/JACK B POAGE FLD

PublicPUB

3 miles N of WESTMINSTER, MD

View on Map

Status

Operational

Coordinates

39° 36' 30"N 77° 00' 28"W

Elevation

789' MSL

Pattern Alt

1789' MSL

Mag Variation

11W

Fuel

Jet A, 100LL

FSS

LEESBURG (DCA)

Sectional

WASHINGTON

ARTCC

NEW YORK (ZNY)

Data Effective

5/16/24-6/13/24

KDMW VFR

3:00 AM EDT RAW

Clear

Viz

10sm

Temp

63°F

Dew

63°F

Pres

30.01"Hg

Wind

140° 4kts

RMK

AO2

KDMW 200700Z AUTO 14004KT 10SM CLR 17/17 A3001 RMK AO2

List Your Business

KDMW FBOs, Flight Schools and Ground Support

Promote Listing

Skytech

Freq: 122.7

Phone: (410) 876-0353

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 5/15	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	7.09
Full Serve	7.49		6.75

KDMW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDMW Hotels

No hotels are listed for this airport.

KDMW Restaurants

No restaurants are listed for this airport.

KDMW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 122.7 CTAF 122.7

AWOS-3

410-876-1281

121.25

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

Hotspot

No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KBWI (30nm)

RAW

Reported

Mon, 5/20 3:04 AM EDT

Valid

Mon, 5/20 3:00 AM EDT - Tue, 5/21 8:00 AM EDT

IFR

3:00 AM EDT - 5:00 AM EDT

Mist

Overcast 700'

Viz

6sm

Wind

120° 5kts

VFR

Temporary 3:00 AM EDT - 5:00 AM EDT

Scattered 700'

Viz

N/A

Wind

Calm

IFR

5:00 AM EDT - 9:00 AM EDT

Mist

Overcast 600'

Viz

3sm

Wind

Calm

MVFR

9:00 AM EDT - 12:00 PM EDT

Broken 1,000'
Scattered 800'

Viz

6sm

Wind

100° 3kts

MVFR

12:00 PM EDT - 2:00 PM EDT

Broken 2,500'

Viz

6sm

Wind

100° 3kts

VFR

2:00 PM EDT - 5:00 AM EDT

Scattered 4,000'

Viz

6sm

Wind

110° 4kts

MVFR

5:00 AM EDT - 8:00 AM EDT

Mist

Scattered 1,000'

Viz

5sm

Wind

200° 3kts

KBWI 200704Z 2007/2112 12005KT 6SM BR OVC007
   TEMPO 2007/2009 SCT007
   FM200900 00000KT 3SM BR OVC006
   FM201300 10003KT P6SM SCT008 BKN010
   FM201600 10003KT P6SM BKN025
   FM201800 11004KT P6SM SCT040
   FM210900 20003KT 5SM BR SCT010

KDMW

Domestic
4/30/241727Z	!DMW 04/006 DMW OBST TOWER LGT (ASR 1042821) 393831.00N0770547.50W (4.5NM WNW DMW) 823.8FT (277.9FT AGL) U/S 2404301727-2407300400
4/30/241339Z	!DMW 04/005 DMW OBST TOWER LGT (ASR 1209273) 393317.40N0765724.90W (4.0NM SE DMW) 1135.2FT (295.3FT AGL) U/S 2404301339-2406302359
1/18/181535Z	!DMW 01/008 DMW AIRSPACE SEE FDC 1/1155 ZDC FLT RESTRICTIONS TFR 1801181535-PERM
FDC
2/5/241437Z	!FDC 4/1278 DMW IAP CARROLL COUNTY RGNL/JACK B POAGE FLD, WESTMINSTER, MD. VOR RWY 34, AMDT 4C... PROCEDURE NA. EMI VOR R-178 UNUSABLE. 2402051437-2602051437EST
10/6/230000Z	!FDC 3/1241 DMW ROUTE TRSTN THREE ARRIVAL NOT AUTHORIZED. 2310060000-PERM.

ATC Tower

Attendance

0700-2000

Owner

CARROLL COUNTY COMM
225 N CENTER ST. RM. 300
WESTMINSTER, MD 21157-5194
Phone: 410-386-2044

Manager

MARK L. MYERS
200 AIRPORT DRIVE, BOX 8
WESTMINSTER, MD 21157
Phone: 410-876-9885

FSS

LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF

NOTAM

DMW

Light Schedule

Lights

ACTVT REIL RWYS 16 & 34; MIRL RWY 16/34; TWY LGTS - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

None

Other Services

Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 16/34

Dimensions

5100 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

22,000lbs

Double Wheel

50,000lbs

Double Tandem

Dual Dbl Tand

	Runway 16	Runway 34
True Heading	148°	328°
Traffic Pattern		Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	39° 36' 51"N	39° 36' 08"N
Longitude	77° 00' 45"W	77° 00' 10"W
Elevation	789'	774'
Threshold Crossing Height	45 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	ARPT UNATNDD CHRISTMAS.
A110-100	GCO AVBL ON FREQ 121.725. IF UNA, FOR CD CTC POTOMAC APCH AT 866-429-5882.
A110-3	WILDLIFE ON & INVOF ARPT.

CARROLL COUNTY RGNL/JACK B POAGE FLD (ICAO: KDMW, IATA: DMW) is a public airport located in WESTMINSTER, MD.
