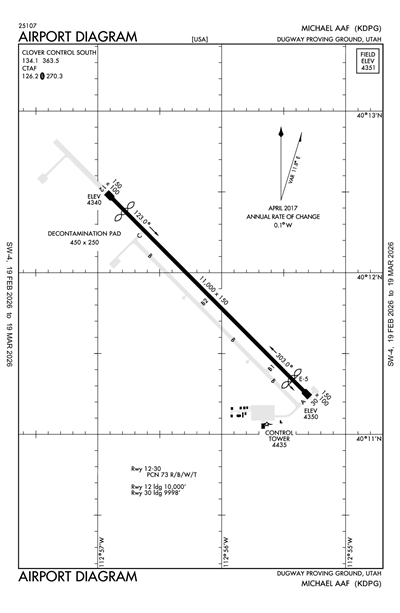

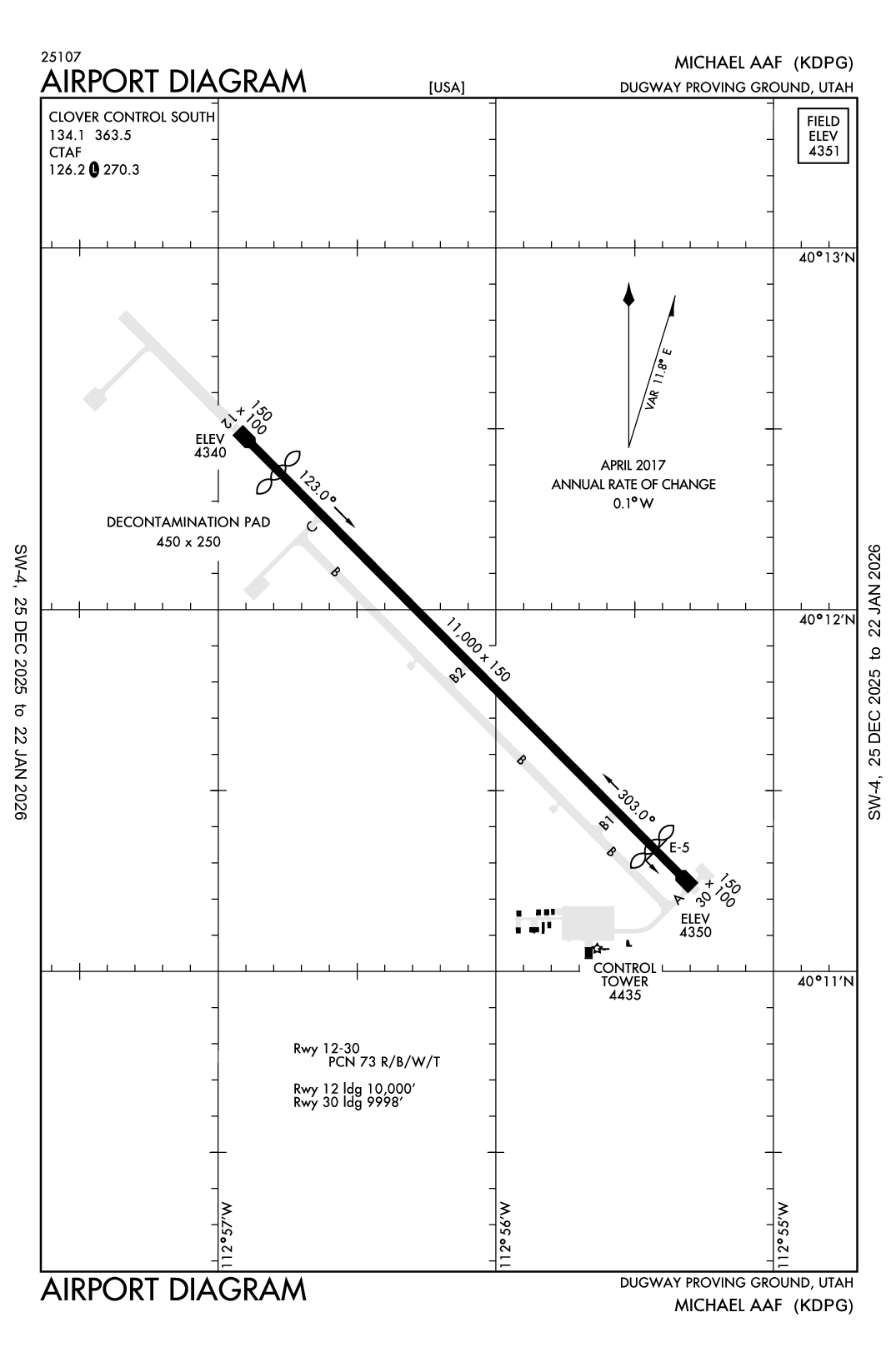

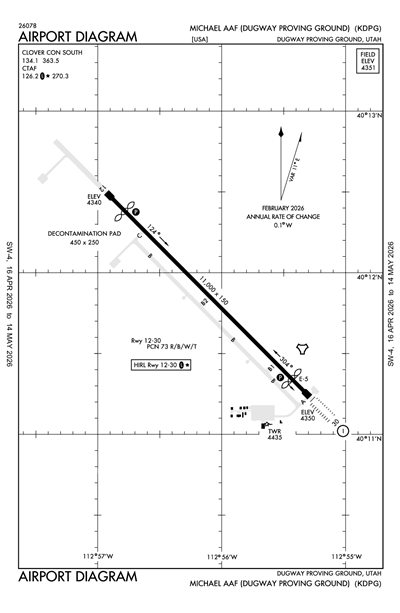

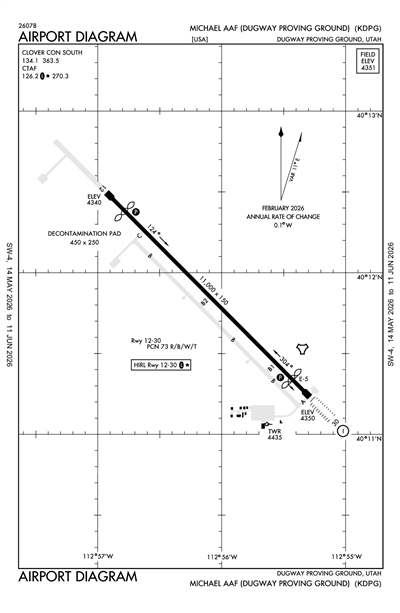

MICHAEL AAF (DUGWAY PROVING GROUND) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDPG
MICHAEL AAF (DUGWAY PROVING GROUND)
PrivatePVT

9 miles W of DUGWAY PROVING GROUND, UT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 11' 51"N 112° 56' 06"W
4350' MSL
5350' MSL
13E
None Listed
CEDAR CITY (CDC)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KTVY (37nm) VFR
1:55 AM MDT
Clear
10sm
54°F
34°F
29.93"Hg
310° 3kts
AO2
KTVY 200755Z AUTO 31003KT 10SM CLR 12/01 A2993 RMK AO2
List Your Business

KDPG FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KDPG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDPG Hotels

No hotels are listed for this airport.

KDPG Restaurants

No restaurants are listed for this airport.

KDPG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.2

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPVU (56nm)
Sun, 5/19 11:20 PM MDT
Mon, 5/20 12:00 AM MDT - Tue, 5/21 12:00 AM MDT
VFR
12:00 AM MDT - 3:00 AM MDT
Broken 10,000'
Scattered 7,000'
6sm
330° 17kts
VFR
3:00 AM MDT - 6:00 AM MDT
Showers in vicinity
Overcast 10,000'
Broken 7,000'
6sm
VRB° 6kts
VFR
6:00 AM MDT - 12:00 PM MDT
Light Showers and Rain
Overcast 10,000'
Broken 7,000'
Scattered 5,000'
6sm
VRB° 6kts
VFR
12:00 PM MDT - 6:00 PM MDT
Light Showers and Rain
Overcast 10,000'
Broken 7,000'
Scattered 5,000'
6sm
330° 12kts
VFR
6:00 PM MDT - 12:00 AM MDT
Showers in vicinity
Broken 10,000'
Scattered 7,000'
6sm
330° 15kts
Gusts 27kts
KPVU 200520Z 2006/2106 33017KT P6SM SCT070 BKN100
   FM200900 VRB06KT P6SM VCSH BKN070 OVC100
   FM201200 VRB06KT P6SM -SHRA SCT050 BKN070 OVC100
   FM201800 33012KT P6SM -SHRA SCT050 BKN070 OVC100
   FM210000 33015G27KT P6SM VCSH SCT070 BKN100
KDPG
Military
4/29/241519Z !KDPG M0009/24 DPG APRON ALL EDGE LINE NOT MARKED ON APRON 2404291519-2407262359
4/29/241517Z !KDPG M0008/24 DPG TWY B EDGE MARKINGS NOT MARKED 2404291517-2407262359
4/29/241516Z !KDPG M0007/24 DPG TWY A EDGE MARKINGS NOT MARKED 2404291516-2407262359
4/29/241512Z !KDPG M0006/24 DPG APRON DECONTAMINATION PAD EDGE LINE NOT MARKED 2404291512-2407262359
4/29/241508Z !KDPG M0005/24 DPG TWY B2 HOLD SIGN LGT U/S 2404291508-2407262359
4/29/241507Z !KDPG M0004/24 DPG TWY B1 HOLD SIGN LGT U/S 2404291507-2407262359
4/19/241845Z !KDPG V0197/24 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 12 WENDOVER ALTIMETER SETTINGS S-12 CAT A 5340-1¼ 996 (1000-1¼), CAT B 5340-1½ 996 (1000-1½), CAT CDE 5340-3 996 (1000-3), S-12 WITH CLIMB GRADIENT CAT A 5140-1 796 (800-1), CAT B 5140-1¼ 796 (800-1¼), CAT CDE 5140-2½ 796 (800-2½), CIRCLING CAT A 5340-1¼ 989 (1000-1¼), CAT B 5340-1½ 989 (1000-1½), CAT C 5340-3 989 (1000-3), CAT D 6040-3 1689 (1700-3), CAT E 6460-3 2109 (2200-3) 2404191845-2408302359
4/19/241839Z !KDPG V0196/24 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 12 NEW MINIMA S-12 CAT A 5180-1 836 (900-1), CAT B 5180-1¼ 836 (900-1¼), CAT CDE 5180-2½ 836 (900-2½); S-12 WITH CLIMB GRADIENT NOTE CAT AB 4980-1 636 (700-1), CAT CDE 4980-1¾ 636 (700-1¾), CIRCLING CAT AB 5180-1¼ 829 (900-1¼), CAT C 5180-2½ 829 (900-2½), CAT D 5880-3 1529 (1600-3), CAT E 6300-3 1949 (2000-3) 2404191839-2408302359
4/19/241834Z !KDPG V0194/24 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 12 MINIMA CHANGE WENDOVER ALTIMETER SETTINGS, LNAV MDA CAT A 5300-1¼ 956 (1000-1¼), CAT B 5300-1½ 956 (1000-1½), CAT CDE 5300-3 956 (1000-3), LNAV MDA WITH CLIMB GRADIENT CAT AB 4960-1 616 (700-1), CAT CDE 4960-1¾ 616 (700-1¾), CIRCLING CAT A 5300-1¼ 949 (1000-1¼), CAT B 5300-1½ 949 (1000-1½), CAT C 5300-3 949 (1000-3), CAT D 6040-3 1689 (1700-3) 2404191834-2408302359
4/19/241829Z !KDPG V0193/24 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV RWY 12 MINIMA CHANGE LNAV MDA CAT A 5140-1 796 (800-1), CAT B 5140-1¼ 796 (800-1¼), CAT CDE 5140-2½ 796 (800-2½), WITH CLIMB GRADIENT CAT AB 4800-1 456 (500-1), CAT CDE 4800-1⅜ 456 (500-1⅜), CIRCLING CAT A 5140-1 789 (800-1), CAT B 5140-1¼ 789 (800-1¼), CAT C 5140-2½ 789 (800-2½), CAT D 5880-3 1529 (1600-3) 2404191829-2408302359
4/19/241551Z !KDPG V0189/24 DPG AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 12 NEW MINIMA; ALS INOP MINIMA DOES NOT APPLY. 2404191551-2408302359
No
MON-THU 1400-2400Z++
CLSD FRI-SUN AND HOLIDAYS.
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
Phone: 435-831-5322
BASE OPERATION
MICHAEL AAF (DUGWAY PROVING GROUND)
UT
Phone: 435-831-5322
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
CDC
--
ACTVT PAPI RWY 12 & 30; HIRL RWY 12/30; TWY LGTS - CTAF.
N/A
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 12/30

10999 ft. x 150 ft.
ASPH
Poor
GRVD
HIGH
73 /R/B/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern
Markings NONE NONE
Markings Condition POOR POOR
Latitude 40° 12' 29"N 40° 11' 12"N
Longitude 112° 56' 56"W 112° 55' 16"W
Elevation 4,340' 4,350'
Threshold Crossing Height 88 ft. AGL 85 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10RSTD: 24 HR PPR FOR LDG AND FUEL; CTC BASE OPS DSN 789-5322, C 435-831-5322.ALL USAF, ANG, AND AFRES AMC ACFT CONSULT ASRR FOR THIS LCTN.
A110-12RWY 12R-30L CLSD.
A110-13CAUTION: POTENTIAL FOR WILD ANIMALS TO CROSS RWY AND FOREIGN OBJECT DAMAGE HAZ DURING HIGH WIND CONDITIONS. BIRD ACT MNT O/R.
A110-16CAUTION-LANDING SHORT OF RY 30 THLD IS A SIGNIFICANT HAZARD. THE E-5 BARRIER PROTRUDES SEVERAL INCHES ABOVE THE GROUND. ACFT CTC WITH THE BARRIER SHORT OF THE RY THLD CAN CAUSE DAMAGE TO THE BARRIER AND SUBSTANTIAL DAMAGE TO THE ACFT.
A110-17CAUTION: LTD ACFT RESCUE & FIRE FIGHTING (ARFF) CAPABILITY FOR MANNED ACFT, CALL BASOPS FOR INFO.
A110-18FOR CD CTC CLOVER CTL AT 801-777-7575 OR VHF 134.1.
A110-19TWY B CLSD TO MANNED ACFT B1 TO B2 1300-2300Z MON-THUR.
A110-5JASU: 2 (A/M32A-86) 2(A/M32A-60).
A110-6FUEL - A++. AIRCARD RQR COMMS.
A110-7OIL: O-156.
A110-8TSNT ALERT: OPR 1400-0030Z++ MON-THU EXCP HOL.
A110-9SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
MICHAEL AAF (DUGWAY PROVING GROUND) (ICAO: KDPG, IATA: DPG) is a private airport located in DUGWAY PROVING GROUND, UT.
