iFlightPlanner



...

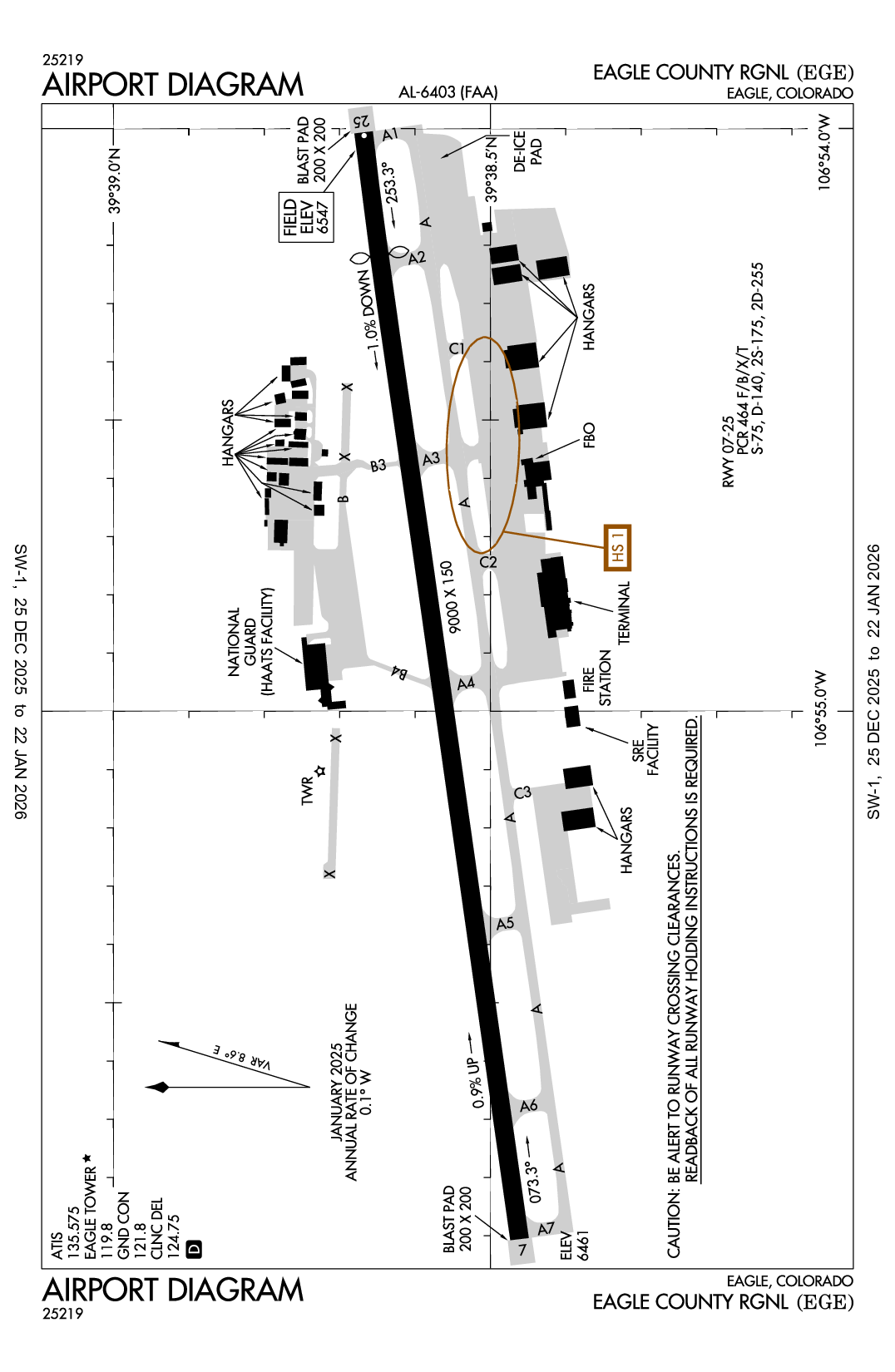

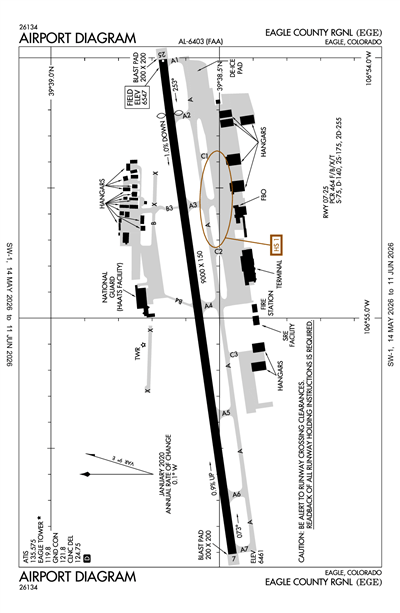

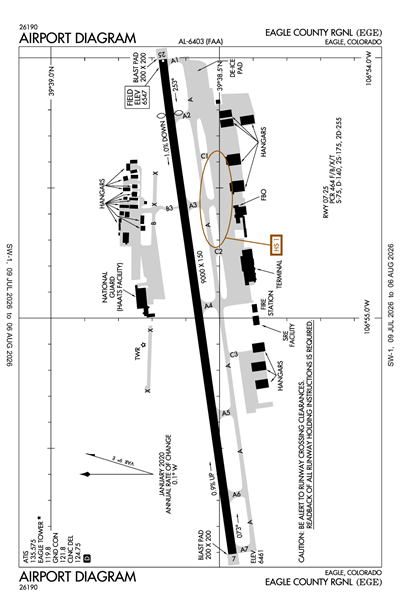

EAGLE COUNTY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEGE
EAGLE COUNTY RGNL
PublicPUB

4 miles W of EAGLE, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 38' 34"N 106° 54' 57"W
6547' MSL
7547' MSL
09E
Jet A-1, Jet A-1+, 100LL, MOGAS
DENVER (DEN)
DENVER
DENVER (ZDV)
5/16/24-6/13/24
KEGE VFR
12:56 AM MDT
Clear
10sm
45°F
33°F
30.01"Hg
090° 8kts
AO2 SLP074 T00720006 PNO $
KEGE 200656Z AUTO 09008KT 10SM CLR 07/01 A3001 RMK AO2 SLP074 T00720006 PNO $
List Your Business

KEGE FBOs, Flight Schools and Ground Support

Promote Listing
Vail Valley Jet Center
Freq: 130.125
Phone: (970) 524-7700
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel, World Fuel
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.94
Full Serve 6.74 9.23 9.37 5.00

KEGE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEGE Hotels

No hotels are listed for this airport.

KEGE Restaurants

No restaurants are listed for this airport.

KEGE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 119.8

ATIS

ATIS
 135.575

AWOS-3PT

AWOS-3PT
970-524-7386
 135.575

Clearance Delivery

CD/P
 124.75

Ground

GND/P
 121.8

Tower

LCL/P
 119.8

Other

OPS
EAGLES NEST
 41.75

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEGE
Sun, 5/19 11:20 PM MDT
Mon, 5/20 12:00 AM MDT - Tue, 5/21 12:00 AM MDT
VFR
12:00 AM MDT - 6:00 AM MDT
Scattered 11,000'
6sm
090° 6kts
VFR
6:00 AM MDT - 10:00 AM MDT
Few 8,000'
6sm
VRB° 4kts
VFR
10:00 AM MDT - 3:00 PM MDT
Few 15,000'
Few 9,000'
6sm
230° 15kts
Gusts 25kts
VFR
3:00 PM MDT - 7:00 PM MDT
Scattered 15,000'
Scattered 12,000'
6sm
230° 22kts
Gusts 33kts
VFR
7:00 PM MDT - 10:00 PM MDT
Broken 15,000'
Scattered 12,000'
6sm
250° 16kts
Gusts 27kts
VFR
10:00 PM MDT - 12:00 AM MDT
Broken 11,000'
Scattered 9,000'
6sm
220° 11kts
Gusts 19kts
KEGE 200520Z 2006/2106 09006KT P6SM SCT110
   FM201200 VRB04KT P6SM FEW080
   FM201600 23015G25KT P6SM FEW090 FEW150
   FM202100 23022G33KT P6SM SCT120 SCT150
   FM210100 25016G27KT P6SM SCT120 BKN150
   FM210400 22011G19KT P6SM SCT090 BKN110
KEGE
Domestic
5/27/240215Z !EGE 05/086 EGE RWY 25 PAPI U/S DLY 0215-1300 2405270215-2406011300
5/27/240215Z !EGE 05/085 EGE RWY 25 ALS U/S DLY 0215-1300 2405270215-2406011300
5/21/241500Z !EGE 05/084 EGE COM REMOTE COM OUTLET 122.2 U/S 2405211500-2405211800
5/21/240215Z !EGE 05/082 EGE RWY 25 PAPI U/S DLY 0215-1300 2405210215-2405251300
5/21/240215Z !EGE 05/081 EGE RWY 25 ALS U/S DLY 0215-1300 2405210215-2405251300
5/18/240215Z !EGE 05/076 EGE NAV LOC TYPE DIRECTIONAL AID RWY 25 U/S 2405180215-2407141300
5/14/241620Z !EGE 05/056 EGE TWY A BTN TWY C3 AND TWY C2 CLSD 2405141620-2405261300
5/14/241346Z !EGE 05/055 EGE TWY A4 BTN RWY 07/25 AND TWY A CLSD 2405141346-2405261300
5/14/241300Z !EGE 05/053 EGE AD AP ALL SFC WIP CONST TWY A BTW C3 AND C2 INCL A4 2405141300-2405261300
5/12/241912Z !EGE 05/042 EGE APRON WEST RAMP W 500FT CLSD FOR ARFF TRNG 2405121912-2405262200
5/6/240230Z !EGE 05/014 EGE COM REMOTE COM OUTLET 122.2 U/S 2405060230-2405312000EST
3/13/240832Z !EGE 03/205 EGE OBST TOWER LGT (ASN 2023-ANM-6403-OE) 393658N1062659W (21.6NM E EGE) 9005FT (90FT AGL) U/S 2403130832-2406122359
FDC
5/19/241352Z !FDC 4/6396 EGE SPECIAL EAGLE COUNTY RGNL, EAGLE, CO.
LOC Z RWY 25, AMDT 1 ...
PROCEDURE NA, VAZ LOC/DME OUT OF SERVICE. 2405191352-2407211352EST
2/12/242035Z !FDC 4/4030 EGE IAP EAGLE COUNTY RGNL, EAGLE, CO. RNAV (RNP) Z RWY
25, ORIG. ADD: MINIMUM ALTITUDE 14000 TO IAFS DUCES AND CULCH.
REMOVE SPEED ICON MAX 200 KIAS AT IAFS DUCES AND CULCH. ADD SPEED
ICON MAX 210 KIAS AT IAFS DUCES AND CULCH. THIS IS RNAV (RNP) Z RWY
25, ORIG-A.
2402122035-PERM
2/12/242035Z !FDC 4/4029 EGE IAP EAGLE COUNTY RGNL, EAGLE, CO. RNAV (RNP) X RWY
25, ORIG. ADD: MINIMUM ALTITUDE 14000 TO IAFS DUCES AND CULCH.
REMOVE SPEED ICON MAX 200 KIAS AT IAFS DUCES AND CULCH. ADD SPEED
ICON MAX 210 KIAS AT IAFS DUCES AND CULCH. THIS IS RNAV (RNP) X RWY
25, ORIG-A.
2402122035-PERM
2/12/242030Z !FDC 4/4026 EGE IAP EAGLE COUNTY RGNL, EAGLE, CO. RNAV (GPS) Y RWY
25, ORIG. ADD: MINIMUM ALTITUDE 14000 TO IAFS DUCES AND CULCH.
REMOVE SPEED ICON MAX 200 KIAS AT IAFS DUCES AND CULCH. ADD SPEED
ICON MAX 210 KIAS AT IAFS DUCES AND CULCH. THIS IS RNAV (GPS) Y RWY
25, ORIG-A.
2402122030-PERM
9/25/231813Z !FDC 3/4623 EGE ODP EAGLE COUNTY RGNL, EAGLE, CO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8...
TAKEOFF MINIMUMS: RWY 7, 25: 4200-5 FOR CLIMB IN VISUAL CONDITIONS.
ALL OTHER DATA REMAINS AS PUBLISHED. 2309251813-2509251813EST
2/15/231500Z !FDC 3/6247 EGE IAP EAGLE COUNTY RGNL, EAGLE, CO.
RNAV (GPS)-E, AMDT 1...
PROCEDURE NA.
2302151500-2502151500EST
Yes
APR-NOV 0700-1900
DEC-MAR 0700-2300
EAGLE COUNTY
BOX 850
EAGLE, CO 81631
Phone: 970-328-2680
DAVID REID
219 ELDON WILSON ROAD
GYPSUM, CO 81637
Phone: (970) 328-2680
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
EGE
--
WHEN ATCT CLOSED ACTVT MALSR RWY 25; REIL RWY 07; HIRL RWY 07/25 - CTAF. PAPI RWY 25 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
48
2
22
13
0
0
Major
Major
High Pressure
High Pressure
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

9000 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
45 /F/B/X/U
75,000lbs
140,000lbs
255,000lbs
--
  Runway 07 Runway 25
True Heading 82°262°
Traffic Pattern Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 39° 38' 28"N 39° 38' 40"N
Longitude 106° 55' 54"W 106° 54' 00"W
Elevation 6,461' 6,547'
Threshold Crossing Height -- 55 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4R
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes

Runway 25X

0 ft. x 0 ft.





--
--
--
--
  Runway 25X Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO SNOW REMOVAL OR RWY MONITORING NOV-APR 0600-1300Z.
A110-11ACRS SHOULD NOT LVE OR ENTER TWY A FM RAMP EAST OF TWY C-2.
A110-12CRITICAL ACFT ARE CAT D IV, B757-200 EQUIVALENT AND LOWER.
A110-13FOR ATCT HRS CONTACT ARFF AT 970-328-2688.
A110-14COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -20C.
A110-15FOR CD CTC EAGLE ATCT AT 970-524-0803, WHEN ATCT CLSD CTC DENVER ARTCC AT 303-651-4257.
A110-3EXTENSIVE MILITARY HELICOPTER TRAINING OPERATIONS SURFACE TO 1000 FT AGL WITHIN 25 NM RADIUS EAGLE COUNTY AIRPORT 0630-2200.
A110-4HI UNMKD TERRAIN ALL QUADS. NGT OPNS DISCOURAGED TO PILOTS UNFAM WITH ARPT.
A110-5RECOMMEND ALL ACFT DEPT RWY 25 INITIATE A LEFT TURN AS SOON AS ALTITUDE & SAFETY PERMIT TO AVOID HIGH TERRAIN.
A110-6MTN TOP 10:1 CLNC 13000 FT FM THR, 1500 FT LEFT OF RWY CNTRLN EXTENDED.
EAGLE COUNTY RGNL (ICAO: KEGE, IATA: EGE) is a public airport located in EAGLE, CO.
