iFlightPlanner



...

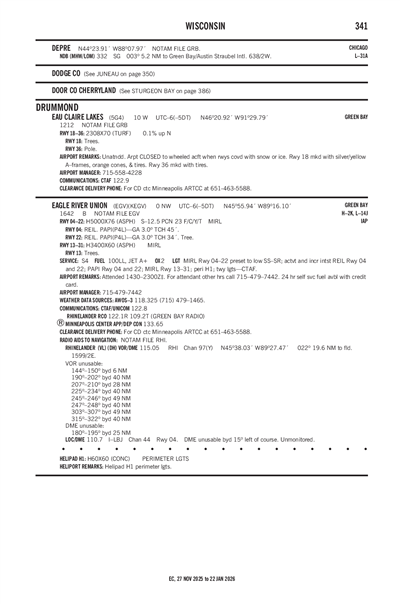

EAGLE RIVER UNION - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEGV
EAGLE RIVER UNION
PublicPUB

0 miles NW of EAGLE RIVER, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 55' 56"N 89° 16' 06"W
1642' MSL
2642' MSL
02W
Jet A+, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KEGV VFR
6:35 AM CDT
Light Rain
Overcast 7,500'
Broken 4,500'
Scattered 3,300'
10sm
55°F
48°F
29.94"Hg
220° 6kts
AO2 T01300090
KEGV 201135Z AUTO 22006KT 10SM -RA SCT033 BKN045 OVC075 13/09 A2994 RMK AO2 T01300090
List Your Business

KEGV FBOs, Flight Schools and Ground Support

Promote Listing
Eagle River Union Airport
Freq: 122.8
Phone: (715) 479-7442
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.30 4.90
Full Serve 5.80 5.40

KEGV Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEGV Hotels

No hotels are listed for this airport.

KEGV Restaurants

No restaurants are listed for this airport.

KEGV Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
715-479-1465
 118.325

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRHI (20nm)
Mon, 5/20 6:36 AM CDT
Mon, 5/20 7:00 AM CDT - Tue, 5/21 7:00 AM CDT
VFR
7:00 AM CDT - 9:00 AM CDT
Light Showers and Rain
Overcast 6,000'
Scattered 3,500'
6sm
180° 6kts
MVFR
9:00 AM CDT - 3:00 PM CDT
Light Showers and Rain
Overcast 2,500'
Scattered 1,200'
6sm
160° 7kts
MVFR
3:00 PM CDT - 10:00 PM CDT
Broken 1,500'
Scattered 800'
6sm
230° 5kts
IFR
10:00 PM CDT - 1:00 AM CDT
Mist
Broken 600'
5sm
VRB° 3kts
LIFR
1:00 AM CDT - 7:00 AM CDT
Mist
Overcast 200'
3sm
VRB° 3kts
KRHI 201136Z 2012/2112 18006KT 6SM -SHRA SCT035 OVC060
   FM201400 16007KT P6SM -SHRA SCT012 OVC025
   FM202000 23005KT P6SM SCT008 BKN015
   FM210300 VRB03KT 5SM BR BKN006
   FM210600 VRB03KT 3SM BR OVC002
KEGV
Domestic
5/19/242120Z !EGV 05/004 EGV OBST TOWER LGT (ASR 1034955) 460140.40N0891522.80W (5.8NM NE EGV) 1940.0FT (214.9FT AGL) U/S 2405192120-2409162120
5/9/241432Z !EGV 05/001 EGV OBST TOWER LGT (ASN 2023-AGL-13583-OE) 460158N0890921W (7.6NM NE EGV) 1948FT (255FT AGL) U/S 2405091432-2406231430
12/7/231339Z !EGV 12/011 EGV RWY 04 RWY END ID LGT U/S 2312071339-2406072111EST
FDC
2/27/241543Z !FDC 4/0065 EGV IAP EAGLE RIVER UNION, EAGLE RIVER, WI.
LOC/DME RWY 4, ORIG-C...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RHI VOR/DME OUT OF SERVICE. 2402271543-2406042200EST
No
0830-1700
FOR ATTENDANT OTR HRS CALL 715-479-7442.
CITY OF EAGLE RIVER
PO BOX 2320
EAGLE RIVER, WI 54521
Phone: 715-479-7442
ROBERT HOM
PO BOX 2320
EAGLE RIVER, WI 54521
Phone: 715-479-7442
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
EGV
--
MIRL RWY 04/22 PRESET TO LOW SS-SR; ACTVT AND INCR INTST REIL RWY 4 & 22; PAPI RWY 4 & 22; MIRL RWY 13/31; PERI H1; TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
35
3
1
2
0
0
Major
Major
None
Low Pressure
None

Runway 04/22

5000 ft. x 76 ft.
ASPH
Excellent
NONE
MED
23 /F/C/Y/T
12,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 55' 37"N 45° 56' 12"N
Longitude 89° 16' 34"W 89° 15' 43"W
Elevation 1,641' 1,637'
Threshold Crossing Height 45 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 13/31

3400 ft. x 60 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 13 Runway 31
True Heading 132°312°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 45° 56' 11"N 45° 55' 48"N
Longitude 89° 16' 19"W 89° 15' 44"W
Elevation 1,640' 1,640'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No
Runway End Identifier Lights No

Runway H1

60 ft. x 60 ft.

CONC
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
EAGLE RIVER UNION (ICAO: KEGV, IATA: EGV) is a public airport located in EAGLE RIVER, WI.
