KESC
DELTA COUNTY
Public
PUB
2 miles SW of ESCANABA, MI
View on
Map
Status
Operational
Coordinates
45° 43' 22"N
87° 05' 37"W
Elevation
609' MSL
Pattern Alt
1609' MSL
Mag Variation
05W
Fuel
Jet A, 100LL
FSS
GREEN BAY (GRB)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/16/24-6/13/24
KESC
VFR
5:56 AM EDT
RAW
Scattered 12,000'
Viz
10sm
Temp
56°F
Dew
49°F
Pres
29.93"Hg
Wind
150° 3kts
RMK
AO2 SLP140 T01330094 $
KESC 200956Z AUTO 15003KT 10SM SCT120 13/09 A2993 RMK AO2 SLP140 T01330094 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
KESC FBOs, Flight Schools and Ground Support
Promote Listing
Delta County Flight School
Freq: 122.8
Phone: (906) 399-6813
0 Reviews
(
Read
|
Sign In To Write
)
Delta County Airport
Freq: 122.8
Phone: (906) 786-4902
Fax: (906) 786-2583
0 Reviews
(
Read
|
Sign In To Write
)
Independent
As of
5/6
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
6.81
Full Serve
6.60
6.70
KESC Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
KESC Hotels
No hotels are listed for this airport.
KESC Restaurants
No restaurants are listed for this airport.
KESC Other Airport-Related Businesses
M & M Aviation
Phone: (906) 360-9797
0 Reviews
(
Read
|
Sign In To Write
)
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
AWOS-3PT
AWOS-3PT
906-786-9001
121.425
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

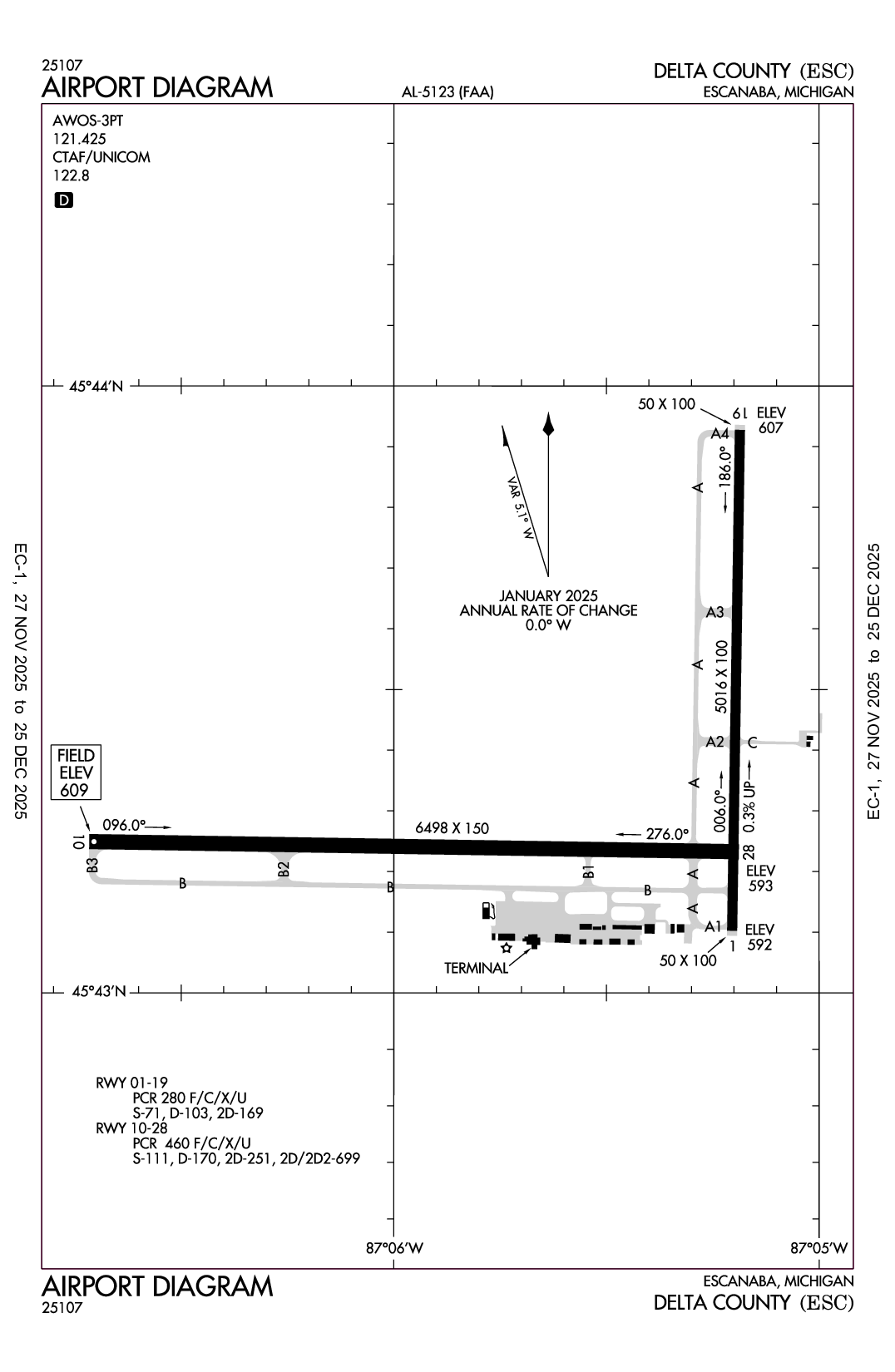

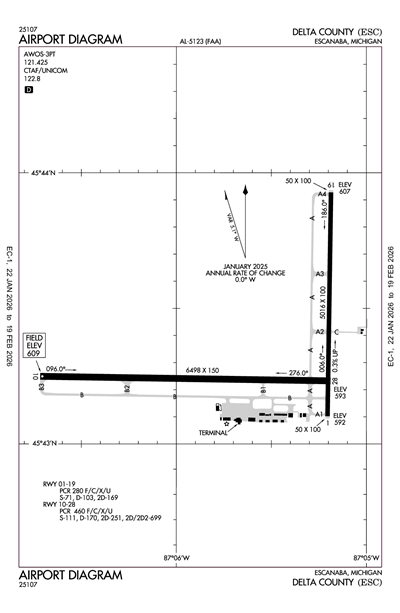

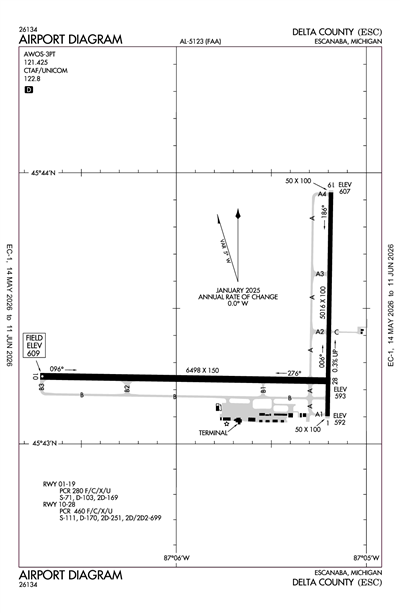

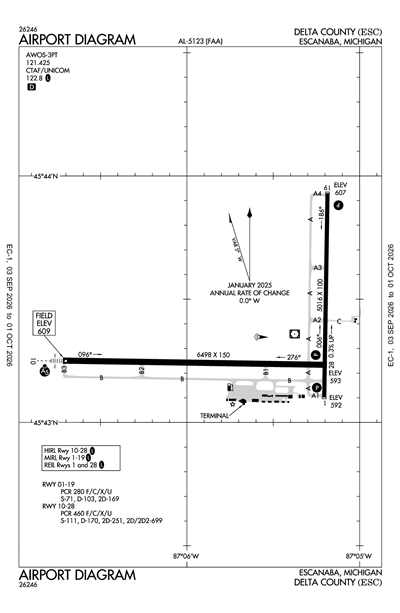

AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 10
LOC BC RWY 28
RNAV (GPS) RWY 01
RNAV (GPS) RWY 10
RNAV (GPS) RWY 19
RNAV (GPS) RWY 28
VOR RWY 01
Terminal Area Forecast
KSAW (39nm)
RAW
Reported
Mon, 5/20 1:24 AM EDT
Valid
Mon, 5/20 2:00 AM EDT - Tue, 5/21 2:00 AM EDT
VFR
2:00 AM EDT - 1:00 PM EDT
Broken 10,000'
Viz
6sm
Wind
160° 7kts
VFR
1:00 PM EDT - 2:00 PM EDT
Light Showers and Rain
Overcast 4,000'
Viz
6sm
Wind
190° 6kts
MVFR
2:00 PM EDT - 5:00 PM EDT
Light Showers and Rain and Mist
Overcast 1,900'
Viz
5sm
Wind
190° 6kts
IFR
5:00 PM EDT - 6:00 PM EDT
Mist and Showers in vicinity
Overcast 800'
Viz
4sm
Wind
210° 6kts
MVFR
6:00 PM EDT - 1:00 AM EDT
Mist and Showers in vicinity
Broken 1,100'
Viz
5sm
Wind
180° 5kts
MVFR
1:00 AM EDT - 2:00 AM EDT
Mist
Broken 2,100'
Viz
6sm
Wind
VRB° 3kts
KSAW 200524Z 2006/2106 16007KT P6SM BKN100
FM201700 19006KT P6SM -SHRA OVC040
FM201800 19006KT 5SM -SHRA BR OVC019
FM202100 21006KT 4SM BR VCSH OVC008
FM202200 18005KT 5SM BR VCSH BKN011
FM210500 VRB03KT 6SM BR BKN021
KESC
Domestic
5/20/24
0702Z
!ESC 05/052 ESC OBST TOWER LGT (ASR 1017388) 455301.00N0864427.00W (17.6NM ENE ESC) 1067.9FT (419.9FT AGL) U/S 2405200702-2409170702
5/19/24
0303Z
!ESC 05/051 ESC OBST TOWER LGT (ASR 1000203) 453108.00N0873104.00W (21.6NM SW ESC) 1179.8FT (419.9FT AGL) U/S 2405190303-2409160303
4/30/24
0325Z
!ESC 04/126 ESC OBST TOWER LGT (ASR 1059331) 453840.60N0872235.10W (12.7NM WSW ESC) 1261.2FT (479.0FT AGL) U/S 2404300325-2406302359
4/26/24
0146Z
!ESC 04/099 ESC OBST TOWER LGT (ASR 1282904) 453627.80N0873401.00W (21.0NM WSW ESC) 1202.1FT (349.1FT AGL) U/S 2404260146-2406100146
4/25/24
2151Z
!ESC 04/098 ESC OBST TOWER LGT (ASR 1258133) 453953.50N0873031.80W (17.7NM W ESC) 1259.2FT (410.1FT AGL) U/S 2404252151-2408232151
3/22/24
1336Z
!ESC 03/033 ESC OBST TOWER LGT (ASR 1200100) 455101.90N0870212.70W (8.1NM NNE ESC) 941.6FT (223.1FT AGL) U/S 2403221336-2409192359
ATC Tower
No
Attendance
0600-2130
FOR SVC CALL ARPT OPS 906-420-1591.
Owner
DELTA COUNTY
310 LUDINGTON ST
ESCANABA, MI 49829-4057
Phone: 906-789-5100
Manager
ROBERT RANSTADLER
DELTA COUNTY AIRPORT, 3300 AIRPORT RD
ESCANABA, MI 49829-1057
Phone: 906-217-7593
FSS
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
NOTAM
ESC
Light Schedule
--
Lights
ACTVT MALSR RWY 10; REIL RWY 01 & 28; PAPI RWY 28, 01, & 19; HIRL RWY 10/28; MIRL RWY 01/19 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
Yes
Parking
Hangar
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
1
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High & Low Pressure
Bulk Oxygen
None
Other Services
Pilot Instruction
Aircraft Rental
Runway 01/19
Dimensions
5016 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
PFC
Rwy Edge Lgts
MED
Pavement Class
79 /F/A/X/T
Single Wheel
40,000lbs
Double Wheel
60,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 01
Runway 19
True Heading
1°
181°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
45° 43' 06"N
45° 43' 56"N
Longitude
87° 05' 12"W
87° 05' 11"W
Elevation
592'
607'
Threshold Crossing Height
27 ft. AGL
42 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
Yes
Runway 10/28
Dimensions
6498 ft. x 150 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
PFC
Rwy Edge Lgts
HIGH
Pavement Class
80 /F/A/X/T
Single Wheel
80,000lbs
Double Wheel
120,000lbs
Double Tandem
210,000lbs
Dual Dbl Tand
--
Runway 10
Runway 28
True Heading
91°
271°
Traffic Pattern
Left
Left
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
45° 43' 15"N
45° 43' 14"N
Longitude
87° 06' 43"W
87° 05' 11"W
Elevation
609'
593'
Threshold Crossing Height
--
53 ft. AGL
Visual Glide Path Angle
--
3°
Visual Slope Indicator
--
P4R
Approach Lights
MALSR
Centerline Lights
No
No
Runway End Identifier Lights
No
Yes
A110-4
FLD CONDS UNMON 2130-0600.
A110-5
FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-7
BIRDS ON & INVOF ARPT.
DELTA COUNTY (ICAO: KESC, IATA: ESC) is a public airport located in ESCANABA, MI.
