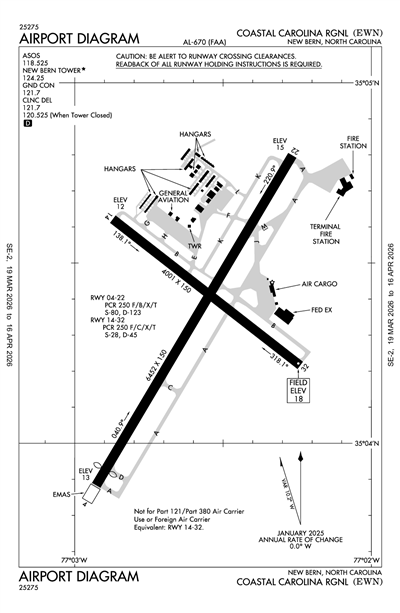

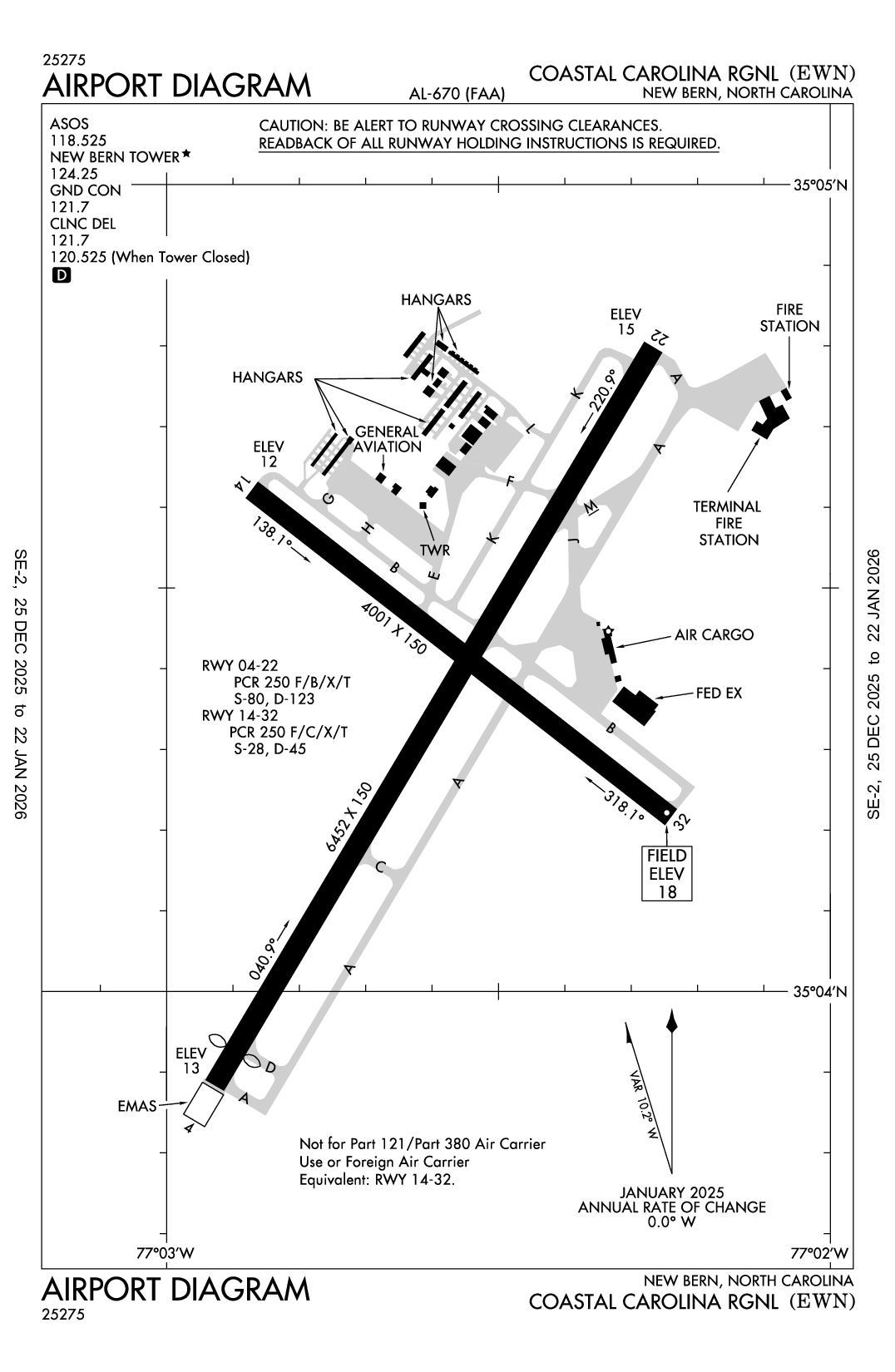

COASTAL CAROLINA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KEWN
COASTAL CAROLINA RGNL
PublicPUB

3 miles SE of NEW BERN, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 04' 22"N 77° 02' 35"W
18' MSL
1018' MSL
08W
Jet A, 100LL
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
5/16/24-6/13/24
KEWN VFR
9:54 PM EDT
Clear
10sm
64°F
59°F
29.99"Hg
060° 7kts
AO2 SLP155 T01780150
KEWN 200154Z AUTO 06007KT 10SM CLR 18/15 A2999 RMK AO2 SLP155 T01780150
List Your Business

KEWN FBOs, Flight Schools and Ground Support

Promote Listing
Tidewater Air Services
Freq: 129.65
Phone: (252) 633-1400
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/13
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.58 5.90

KEWN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KEWN Hotels

No hotels are listed for this airport.

KEWN Restaurants

No restaurants are listed for this airport.

KEWN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 124.25

ASOS

ASOS
252-514-2086
 118.525

Clearance Delivery

CD/P
 121.7

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 124.25

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEWN
Sun, 5/19 7:35 PM EDT
Sun, 5/19 8:00 PM EDT - Mon, 5/20 8:00 PM EDT
VFR
8:00 PM EDT - 10:00 PM EDT
Overcast 3,500'
Few 2,500'
6sm
040° 5kts
VFR
10:00 PM EDT - 7:00 AM EDT
Scattered 4,500'
Scattered 1,000'
6sm
030° 6kts
IFR
7:00 AM EDT - 11:00 AM EDT
Broken 700'
Scattered 500'
6sm
020° 8kts
VFR
11:00 AM EDT - 7:00 PM EDT
Scattered 1,000'
6sm
030° 9kts
Gusts 15kts
VFR
7:00 PM EDT - 8:00 PM EDT
Few 20,000'
6sm
040° 7kts
KEWN 192335Z 2000/2024 04005KT P6SM FEW025 OVC035
   FM200200 03006KT P6SM SCT010 SCT045
   FM201100 02008KT P6SM SCT005 BKN007
   FM201500 03009G15KT P6SM SCT010
   FM202300 04007KT P6SM FEW200
KEWN
Domestic
5/20/240244Z !EWN 05/035 EWN RWY 14 PAPI U/S 2405200244-2405271200
5/17/241858Z !EWN 05/034 EWN AD AP ARFF
UPGRADED NOW INDEX B 2405171858-PERM
5/17/241240Z !EWN 05/033 EWN OBST TOWER LGT (ASR 1289323) 351410.10N0770231.90W (9.9NM NE EWN) 327.1FT (308.1FT AGL) U/S 2405171240-2409141240
5/17/241045Z !EWN 05/032 EWN OBST TOWER LGT (ASR 1056837) 350822.00N0770441.00W (4.3NM NNW EWN) 728.3FT (718.5FT AGL) U/S 2405171045-2408150400
5/9/241540Z !EWN 05/019 EWN OBST TOWER LGT (ASR 1258612) 350749.10N0765423.90W (7.6NM ENE EWN) 299.9FT (264.1FT AGL) U/S 2405091540-2408070400
5/1/240045Z !EWN 05/001 EWN OBST TOWER LGT (ASR 1007564) 351202.60N0771112.80W (10.3NM NW EWN) 1064.6FT (1036.7FT AGL) U/S 2405010045-2406010500
4/25/240328Z !EWN 04/031 EWN OBST TOWER LGT (ASR 1004817) 345245.10N0765712.20W (12.4NM SSE EWN) 274.9FT (253.9FT AGL) U/S 2404250328-2406090327
3/18/241344Z !EWN 03/024 EWN AD AP ALL SFC WIP GRASS CUTTING 2403181344-2410011800
2/29/241344Z !EWN 02/027 EWN OBST TOWER LGT (ASR 1201296) 345336.20N0771228.90W (13.7NM SW EWN) 351.0FT (315.0FT AGL) U/S 2402291344-2405292359
FDC
12/20/231641Z !FDC 3/8140 EWN IAP COASTAL CAROLINA RGNL, NEW BERN, NC.
VOR RWY 22, AMDT 3C...
PROCEDURE NA.
2312201641-2512201641EST
Yes
0500-2330
CRAVEN COUNTY
PO BOX 3258
NEW BERN, NC 28560
Phone: 252-638-8591
ANDREW SHORTER
200 TERMINAL DRIVE
NEW BERN, NC 28562-6455
Phone: 252-638-8591
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
EWN
--
ACTVT REIL RWY 04, 22, 14 & 32; HIRL 04/22, MIRL 14/32 - CTAF. PAPI RWY 04, 22, 14 & 32 OPER CONTINUOUSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
80
5
3
2
0
0
Major
Major
None
None
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

6452 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
31 /F/B/X/T
80,000lbs
123,000lbs
--
--
  Runway 04 Runway 22
True Heading 31°211°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 03' 53"N 35° 04' 48"N
Longitude 77° 02' 56"W 77° 02' 16"W
Elevation 13' 14'
Threshold Crossing Height 50 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

4001 ft. x 150 ft.
ASPH
Good
NONE
MED
14 /F/C/X/T
28,000lbs
45,000lbs
--
--
  Runway 14 Runway 32
True Heading 128°308°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 04' 37"N 35° 04' 13"N
Longitude 77° 02' 52"W 77° 02' 14"W
Elevation 12' 18'
Threshold Crossing Height 39 ft. AGL 29 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1MIL TACTICAL JET ACFT; STRAIGHT IN, FULL STOP LDGS ONLY; RWY 14/32 FOR EUO.
A110-2RWY 14/32 AND ASSOCIATED TWYS NOT AVBL FOR SCHEDULED ACR OPNS WITH MORE THAN 9 PSGR SEATS OR UNSCHEDULED ACR AT LEAST 31 PSGR SEATS.
COASTAL CAROLINA RGNL (ICAO: KEWN, IATA: EWN) is a public airport located in NEW BERN, NC.
