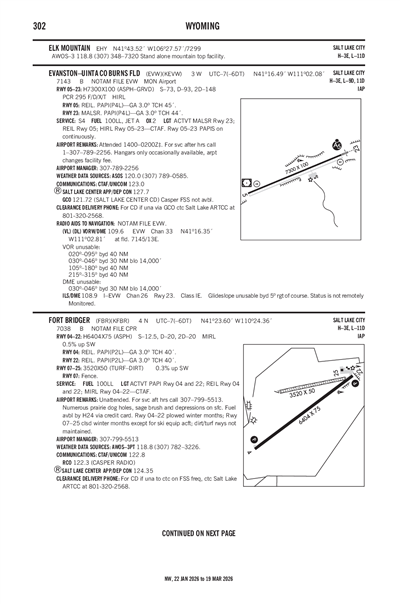

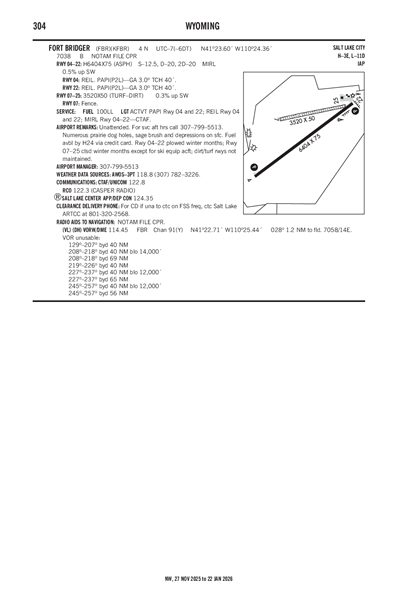

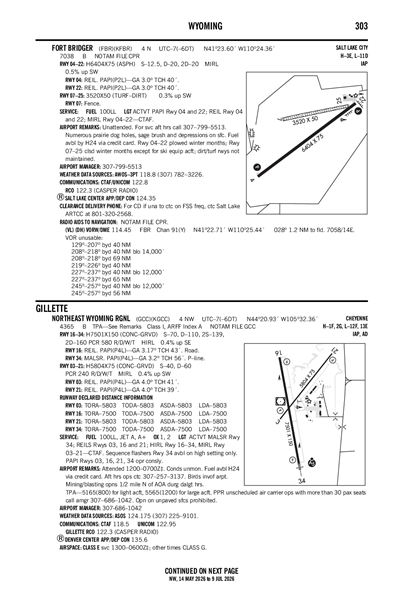

FORT BRIDGER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFBR
FORT BRIDGER
PublicPUB

4 miles N of FORT BRIDGER, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 23' 36"N 110° 24' 21"W
7038' MSL
8038' MSL
11E
100LL
CASPER (CPR)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KFBR VFR
1:55 AM MDT
Broken 9,000'
10sm
38°F
31°F
30.07"Hg
Calm
AO2 T00361008
KFBR 200755Z AUTO 00000KT 10SM BKN090 04/M01 A3007 RMK AO2 T00361008
List Your Business

KFBR FBOs, Flight Schools and Ground Support

Promote Listing
Fort Bridger Airport
Freq: 122.8
Phone: (307) 780-5815
Other: (307) 782-3780
No Rating Available
0 Reviews (Read | Sign In To Write)

KFBR Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KFBR Hotels

No hotels are listed for this airport.

KFBR Restaurants

No restaurants are listed for this airport.

KFBR Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
307-782-3226
 118.8

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEVW (29nm)
Sun, 5/19 11:20 PM MDT
Mon, 5/20 12:00 AM MDT - Tue, 5/21 12:00 AM MDT
VFR
12:00 AM MDT - 2:00 AM MDT
Showers in vicinity
Overcast 10,000'
Broken 7,000'
6sm
360° 11kts
VFR
2:00 AM MDT - 11:00 AM MDT
Light Showers and Rain
Overcast 10,000'
Broken 7,000'
Scattered 4,000'
6sm
360° 7kts
VFR
11:00 AM MDT - 2:00 PM MDT
Light Showers and Rain
Overcast 10,000'
Broken 7,000'
Scattered 4,000'
6sm
250° 10kts
VFR
2:00 PM MDT - 12:00 AM MDT
Showers in vicinity
Overcast 10,000'
Broken 7,000'
Few 4,000'
6sm
290° 12kts
Gusts 22kts
KEVW 200520Z 2006/2106 36011KT P6SM VCSH BKN070 OVC100
   FM200800 36007KT P6SM -SHRA SCT040 BKN070 OVC100
   FM201700 25010KT P6SM -SHRA SCT040 BKN070 OVC100
   FM202000 29012G22KT P6SM VCSH FEW040 BKN070 OVC100
KFBR
Domestic
3/11/241322Z !CPR 03/023 FBR RWY 22 PAPI U/S 2403111322-2409112111EST
FDC
3/28/231818Z !FDC 3/3273 FBR IAP FORT BRIDGER, FORT BRIDGER, WY.
VOR RWY 22, AMDT 2A...
TDZE 7023.
S-22 HAT 417 ALL CATS.
2303281818-2503281818EST
No
UNATNDD
FOR SVC AFT HRS CALL 307-799-5513.
UINTA COUNTY
P O BOX 810
EVANSTON, WY 82931
Phone: 307-783-0415
JEFF BREININGER
225 9TH STREET
EVANSTON, WY 82930
Phone: 307-783-0507
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
CPR
--
ACTVT PAPI RWY 04 & 22; REIL RWY 04 & 22; MIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
6
0
0
1
0
0
None
None
None
None
None

Runway 04/22

6404 ft. x 75 ft.
ASPH
Fair
NONE
MED

12,000lbs
20,000lbs
20,000lbs
--
  Runway 04 Runway 22
True Heading 54°234°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 23' 13"N 41° 23' 49"N
Longitude 110° 24' 59"W 110° 23' 50"W
Elevation 7,038' 7,008'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 07/25

3520 ft. x 50 ft.
TURF DIRT
Fair
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 79°259°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 41° 23' 42"N 41° 23' 48"N
Longitude 110° 24' 39"W 110° 23' 54"W
Elevation 7,020' 7,009'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY 04/22 PLOWED WINTER MONTHS; RWY 07/25 CLSD WINTER MONTHS EXCEPT FOR SKI EQUIP ACFT; DIRT/TURF RWYS NOT MAINTAINED.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
FORT BRIDGER (ICAO: KFBR, IATA: FBR) is a public airport located in FORT BRIDGER, WY.
