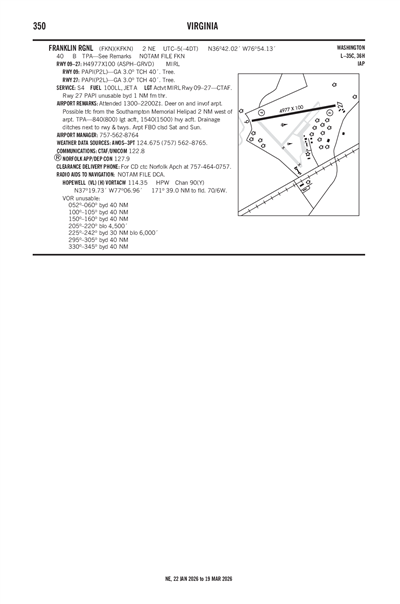

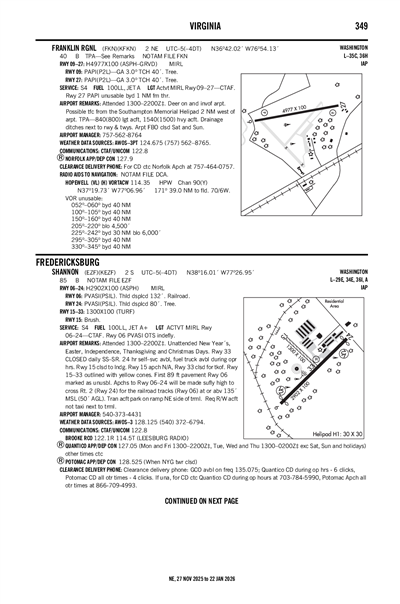

FRANKLIN RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFKN
FRANKLIN RGNL
PublicPUB

2 miles NE of FRANKLIN, VA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 42' 01"N 76° 54' 08"W
40' MSL
1040' MSL
09W
Jet A, 100LL
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
5/16/24-6/13/24
KFKN MVFR
2:55 AM EDT
Overcast 2,000'
10sm
58°F
56°F
30.01"Hg
Calm
AO2 T01450135
KFKN 200655Z AUTO 00000KT 10SM OVC020 15/14 A3001 RMK AO2 T01450135
List Your Business

KFKN FBOs, Flight Schools and Ground Support

Promote Listing
Franklin Municipal Airport
Freq: 122.8
Phone: (757) 562-8764
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/2
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.15 4.85

KFKN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KFKN Hotels

No hotels are listed for this airport.

KFKN Restaurants

No restaurants are listed for this airport.

KFKN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
757-562-8765
 124.675

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPHF (33nm)
Mon, 5/20 1:25 AM EDT
Mon, 5/20 2:00 AM EDT - Tue, 5/21 2:00 AM EDT
MVFR
2:00 AM EDT - 7:00 AM EDT
Broken 2,500'
6sm
VRB° 3kts
IFR
Temporary 5:00 AM EDT - 7:00 AM EDT
Broken 800'
N/A
Calm
IFR
7:00 AM EDT - 9:00 AM EDT
Mist
Broken 800'
6sm
030° 6kts
MVFR
9:00 AM EDT - 12:00 PM EDT
Broken 1,000'
6sm
030° 8kts
VFR
12:00 PM EDT - 2:00 PM EDT
Scattered 2,000'
6sm
040° 8kts
VFR
2:00 PM EDT - 2:00 AM EDT
Scattered 3,500'
6sm
060° 8kts
KPHF 200525Z 2006/2106 VRB03KT P6SM BKN025
   TEMPO 2009/2011 BKN008
   FM201100 03006KT 6SM BR BKN008
   FM201300 03008KT P6SM BKN010
   FM201600 04008KT P6SM SCT020
   FM201800 06008KT P6SM SCT035
KFKN
Domestic
5/12/240418Z !FKN 05/003 FKN OBST TOWER LGT (ASR 1028287) 364809.50N0764517.80W (9.5NM NE FKN) 1094.8FT (1008.9FT AGL) U/S 2405120418-2405270318
3/30/241612Z !FKN 03/013 FKN OBST TOWER LGT (ASR 1211410) 364128.00N0765334.40W (0.7NM SE FKN) 190.9FT (162.1FT AGL) U/S 2403301612-2406280400
FDC
12/5/231430Z !FDC 3/0960 FKN IAP FRANKLIN RGNL, FRANKLIN, VA.
RNAV (GPS) RWY 27, AMDT 1C...
RNAV (GPS) RWY 9, AMDT 1C...
LPV AND LNAV/VNAV MINIMUMS NA.
2312051430-2512051430EST
No
0800-1700
CITY OF FRANKLIN
P O BOX 179
FRANKLIN, VA 23851
Phone: 757-562-8561
TREVELYN LINTON
32470 JOHN BEVERLY ROSE DR
FRANKLIN, VA 23851
Phone: 757-562-8764
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
FKN
--
ACTVT MIRL 09/27 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
12
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Aircraft Rental

Runway 09/27

4977 ft. x 100 ft.
ASPH
Good
GRVD
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 81°261°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 36° 41' 57"N 36° 42' 05"N
Longitude 76° 54' 38"W 76° 53' 38"W
Elevation 33' 40'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER ON AND INVOF ARPT.
A110-2PSBL TFC FM THE SOUTHAMPTON MEMORIAL HELIPAD 2 NM W OF ARPT.
A110-3DRAINAGE DITCHES NEXT TO RWY & TWYS.
A110-4FOR CD CTC NORFOLK APCH AT 757-464-0757.
A110-5ARPT FBO CLSD SAT AND SUN.
FRANKLIN RGNL (ICAO: KFKN, IATA: FKN) is a public airport located in FRANKLIN, VA.
