iFlightPlanner



...

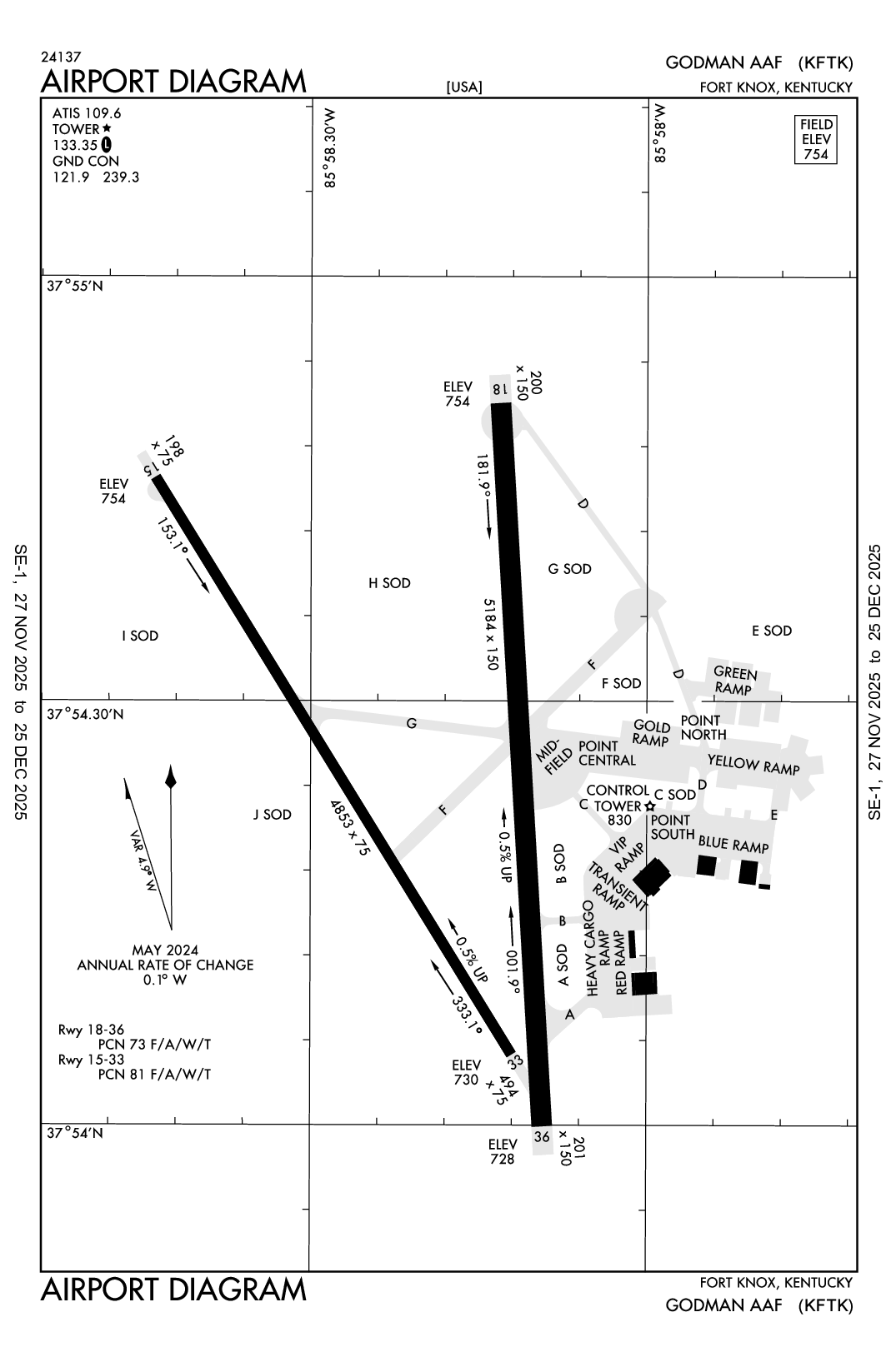

GODMAN AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFTK
GODMAN AAF
PrivatePVT

1 miles W of FORT KNOX, KY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 54' 25"N 85° 58' 19"W
754' MSL
1754' MSL
03W
Jet A+, CILI
LOUISVILLE (LOU)
ST LOUIS
INDIANAPOLIS (ZID)
5/16/24-6/13/24
KEKX (13nm) VFR
6:15 AM EDT
Clear
7sm
58°F
58°F
29.96"Hg
Calm
AO2 T01470147
KEKX 201015Z AUTO 00000KT 7SM CLR 15/15 A2996 RMK AO2 T01470147
List Your Business

KFTK FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KFTK Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KFTK Hotels

No hotels are listed for this airport.

KFTK Restaurants

No restaurants are listed for this airport.

KFTK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 133.35

ATIS

ATIS
Hours: 1100-0300Z++ MON-FRI, 1200-2000Z++ SAT-SUN EXCLD HOL.
 109.6

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 133.35

Other

OPS
 126.2
PMSV METRO
 139.65
PTD
 126.2

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KSDF (20nm)
Mon, 5/20 1:20 AM EDT
Mon, 5/20 2:00 AM EDT - Tue, 5/21 8:00 AM EDT
VFR
2:00 AM EDT - 12:00 PM EDT
Few 25,000'
6sm
VRB° 3kts
VFR
12:00 PM EDT - 8:00 AM EDT
Few 5,000'
6sm
190° 5kts
KSDF 200520Z 2006/2112 VRB03KT P6SM FEW250
   FM201600 19005KT P6SM FEW050
KFTK
Military
5/14/241351Z RWY 33 OVERRUN CLSD
5/6/241407Z AERODROME NO OVERFLIGHT OF LOWER DOUGLAS LAKE DUE TO BALD EAGLES NEST. ALL AIRCRAFT AVOID AIRSPACE SURROUNDING 374910N855253W BY 300 METERS SFC-1200FT AGL
4/23/241150Z AERODROME TRANSIENT RAMP PARKING PAD 2 CLSD
4/11/241909Z TWY D BETWEEN POINT NORTH AND BLUE RAMP IS NON-COMPLIANT WITH UFC 3-260-01
3/29/241549Z AERODROME ALL AIRCRAFT AVOID 375931N860043W INSIDE TRAINING AREA 12 BY A 1500FT RADIUS SFC-1000FT AGL DUE TO BALD EAGLES NEST
2/28/241701Z OBST UNLIT CELL TOWER AT 375717N854851W IVO ANACONDA VILLAGE
2/28/241700Z AERODROME CELL TOWER 1/2 NM SW OF GAAF LIGHTED
Yes
ALL
SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
US ARMY ATCA-ASO
CAMERON STA
ALEXANDRIA, VA 22314
RICKEY WEBB


Phone: 502-624-5737
LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF
FTK
--
ACTVT SSALR RWY 18; ODALS RWY 36; REIL RWY 18; PAPI RWY 18 & 36; HIRL 18/36 - CTAF. 0400-1200Z++.
N/A
ROTG BCN LCTD ON ATCT.
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 15/33

4853 ft. x 75 ft.

ASPH
NONE
MED
81 /F/A/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 148°328°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 54' 46"N 37° 54' 05"N
Longitude 85° 58' 44"W 85° 58' 12"W
Elevation 754' 730'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

5184 ft. x 150 ft.

ASPH
NONE
HIGH
73 /F/A/W/T
--
--
--
--
  Runway 18 Runway 36
True Heading 177°357°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 54' 51"N 37° 53' 60"N
Longitude 85° 58' 13"W 85° 58' 09"W
Elevation 754' 728'
Threshold Crossing Height 50 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR ODALS
Centerline Lights
Runway End Identifier Lights Yes
A110-11DEER & COYOTE INVOF ARPT SPCLY 1 HR PRIOR SR & SS.
A110-13MISC: ALL WX FCST PMSV BRIEFINGS & SUPPORT 1100-0400++ MON-FRI; CLSD WKEND & HOL. OTR TIMES - SCOTT OWS D576-9755/9702/C618-256-9755/9702; HTTPS://15OWS.US.AF.MIL WX OBS AUTO & AUGMENTED.
A110-19TSNT ACFT PRKG ON GREEN RAMP UNLESS ALTN PRKG COORD. C-130 & LRGR PARK ON CONC PAD BTW TWY A & B.
A110-23MISC: RANGE INFO - 38.90; 136.075.
A110-24MISC: IR LGT INSTL APCH END RWY 15 ASSAULT STRIP.
A110-25SEE FLIP AP/1 & FT KNOX REG 95-1 SUPPLEMENTARY ARPT INFO.
A110-26RSTD: PPR FOR TSNT - D464-5536/C502-624-5536; VIP CTC OPS 20 MIN PRIOR TO LDG.
A110-32COMM: AIR TO AIR UHF 237.5 WI FORT KNOX ASP.
A110-33COMM: PTD OPS 1230-2100Z++ MON-FRI; CLSD HOL. PTD - 126.2, 234.4; ATIS - 109.6; LOUSIVILLE APP/DEP 132.075, 327.0.
A110-36AIRFIELD OPS 126.2, 234.4; 1230-2100Z++ MON-FRI; CLSD HOL. FICON & VEHICLE ACES TO FLIGHTLINE UNAVBL WHEN AIRFIELD OPS CLSD.
A110-37NON-MOV AREA RED, BLUE, YELLOW, GOLD & TWY D FM BLUE RAMP TO POINT NORTH.
A110-38TRANS ALERT SVC NOT AVBL.
A110-41NO SHOULDERS RWY 18/36, 15/33, TWY B, C, D & G. TWY F UNLGT.
A110-45MISC: RWY 33 & 36 CLEAR ZONES NSTD.
A110-48WHEN TWR & AIRFIELD OPS CLSD USE 126.2 FOR IFR/SVFR CLNCS, RELEASES & ARR. IF UNBL CTC LOUISVILLE APP/DEP C502-375-7499.
A110-49CTN: RAILROAD CROSSES NW - SE 625 FT FM AER 18 CNTRLN; ILS APCH RWY 18 & FIXED WING DEP RWY 36 NA WHEN RAIL CARS PRESENT. FENCE 565 FT FM AER 18. RSTD AREA 1 NM E OF ARPT. OVERFLIGHT OF GOLD DEPOSITORY 1 NM S OF RWY 36 NA. EXTV UAS OPS IN CLASS D & R3704A/B. R/W AIRCREWS PLANNING OPS WI R3704A MUST RCV RANGE BRIEFING PRIOR TO OPS.
A110-51RSTD: TWY D RSTRD TO R/W ONLY.
GODMAN AAF (ICAO: KFTK, IATA: FTK) is a private airport located in FORT KNOX, KY.
