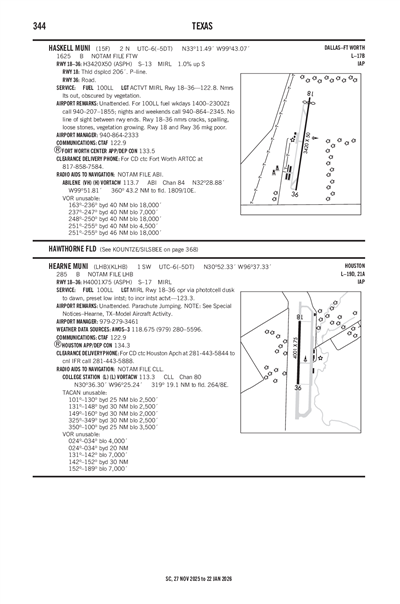

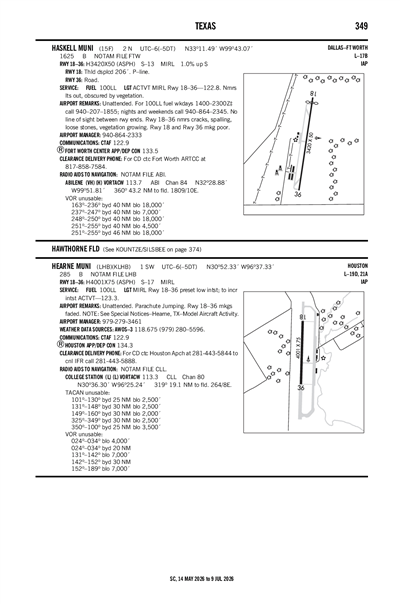

HEARNE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLHB
HEARNE MUNI
PublicPUB

1 miles SW of HEARNE, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 52' 19"N 96° 37' 20"W
285' MSL
1285' MSL
04E
100LL
MONTGOMERY COUNTY (CXO)
HOUSTON
HOUSTON (ZHU)
5/16/24-6/13/24
KLHB VFR
3:35 AM CDT
Clear
10sm
72°F
67°F
29.85"Hg
140° 3kts
AO2 T02200192
KLHB 200835Z AUTO 14003KT 10SM CLR 22/19 A2985 RMK AO2 T02200192
List Your Business

KLHB FBOs, Flight Schools and Ground Support

Promote Listing
Hearne Municipal Airport
Phone: (979) 412-1031
Other: (979) 279-3461
No Rating Available
0 Reviews (Read | Sign In To Write)

KLHB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLHB Hotels

No hotels are listed for this airport.

KLHB Restaurants

No restaurants are listed for this airport.

KLHB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
979-280-5596
 118.675

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCLL (22nm)
Mon, 5/20 12:20 AM CDT
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 5:00 AM CDT
Sky Clear
6sm
VRB° 6kts
VFR
5:00 AM CDT - 11:00 AM CDT
Few 2,000'
6sm
170° 6kts
MVFR
Temporary 5:00 AM CDT - 9:00 AM CDT
Mist
Few 800'
5sm
Calm
VFR
11:00 AM CDT - 1:00 AM CDT
Few 25,000'
6sm
160° 9kts
KCLL 200520Z 2006/2106 VRB06KT P6SM SKC
   FM201000 17006KT P6SM FEW020
   TEMPO 2010/2014 5SM BR FEW008
   FM201600 16009KT P6SM FEW250
KLHB
Domestic
5/21/241600Z !LHB 05/015 LHB AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF LHB SFC-2500FT AGL 2405211600-2405212300
5/20/241600Z !LHB 05/014 LHB AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF LHB SFC-2500FT AGL 2405201600-2405202300
5/19/241220Z !LHB 05/013 LHB OBST TOWER LGT (ASR 1205391) 310558.20N0964226.70W (14.2NM NNW LHB) 694.9FT (265.1FT AGL) U/S 2405191220-2408170400
5/7/241904Z !LHB 05/008 LHB OBST TOWER LGT (ASR 1291852) 310055.80N0962435.90W (14.0NM NE LHB) 780.5FT (290.7FT AGL) U/S 2405071904-2406072359
4/28/240909Z !LHB 04/018 LHB OBST TOWER LGT (ASR 1214169) 305107.00N0963404.00W (3.1NM ESE LHB) 648.0FT (368.1FT AGL) U/S 2404280909-2405280001
4/20/242022Z !LHB 04/014 LHB OBST TOWER LGT (ASN 2018-ASW-8573-OE) 310449N0962442W (16.6NM NE LHB) 722FT (322FT AGL) U/S 2404202022-2406042021
4/13/242057Z !LHB 04/011 LHB OBST TOWER LGT (ASR 1239658) 310452.90N0962440.50W (16.6NM NE LHB) 745.1FT (345.1FT AGL) U/S 2404132057-2408112057
4/9/241229Z !LHB 04/008 LHB OBST TOWER LGT (ASR 1202490) 310819.20N0961915.30W (22.3NM NE LHB) 667.0FT (265.1FT AGL) U/S 2404091229-2408071229
FDC
11/8/231842Z !FDC 3/9115 LHB IAP HEARNE MUNI, HEARNE, TX.
RNAV (GPS) RWY 18, ORIG-C...
DISREGARD NOTE: BARO-VNAV AND VDP NA WHEN USING COLLEGE STATION ALTIMETER SETTING.
2311081842-2511081841EST
No
UNATNDD
CITY OF HEARNE
209 CEDAR ST.
HEARNE, TX 77859
Phone: 979-279-3461
ALANZO ECHAVARRIA
209 CEDAR ST.
HEARNE, TX 77859
Phone: 979-279-3461
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
LHB
--
MIRL RWY 18/36 OPR VIA PHOTOCELL DUSK TO DAWN, PRESET LOW INTST; TO INCR INTST ACTVT - 123.3.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
8
0
0
1
0
1
None
None
None
None
Crop Dusting

Runway 18/36

4001 ft. x 75 ft.
ASPH
Good
NONE
MED

17,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 181°2°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 52' 39"N 30° 51' 60"N
Longitude 96° 37' 19"W 96° 37' 21"W
Elevation 285' 280'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3FOR CD CTC HOUSTON APCH AT 281-443-5844 TO CNL IFR CALL 281-443-5888.
HEARNE MUNI (ICAO: KLHB, IATA: LHB) is a public airport located in HEARNE, TX.
