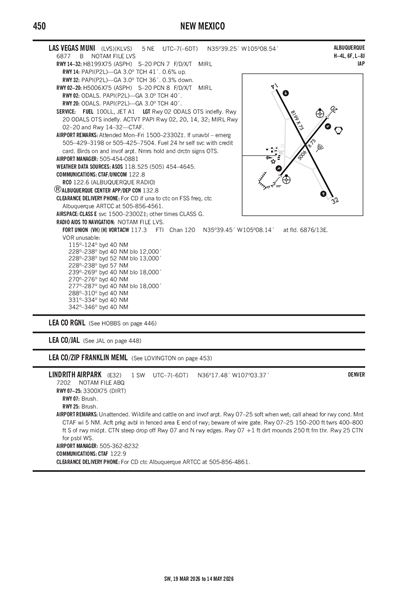

LAS VEGAS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLVS
LAS VEGAS MUNI
PublicPUB

5 miles NE of LAS VEGAS, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 39' 15"N 105° 08' 33"W
6877' MSL
7877' MSL
13E
Jet A-1, 100LL
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
5/16/24-6/13/24
KLVS VFR
3:53 AM MDT
Clear
10sm
53°F
23°F
30.02"Hg
170° 4kts
AO2 SLP062 T01171050
KLVS 200953Z AUTO 17004KT 10SM CLR 12/M05 A3002 RMK AO2 SLP062 T01171050
List Your Business

KLVS FBOs, Flight Schools and Ground Support

Promote Listing
Las Vegas Municipal Airport
Freq: 122.7
Phone: (505) 454-0881
Other: (505) 429-3198
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.40 7.00
Full Serve 7.00

KLVS Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLVS Hotels

No hotels are listed for this airport.

KLVS Restaurants

No restaurants are listed for this airport.

KLVS Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
505-454-4645
 118.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLVS
Sun, 5/19 11:24 PM MDT
Mon, 5/20 12:00 AM MDT - Tue, 5/21 12:00 AM MDT
VFR
12:00 AM MDT - 3:00 AM MDT
Sky Clear
6sm
260° 10kts
VFR
3:00 AM MDT - 10:00 AM MDT
Sky Clear
6sm
VRB° 6kts
VFR
10:00 AM MDT - 1:00 PM MDT
Scattered 20,000'
6sm
210° 12kts
Gusts 22kts
VFR
1:00 PM MDT - 8:00 PM MDT
Scattered 15,000'
6sm
240° 27kts
Gusts 29kts
VFR
8:00 PM MDT - 12:00 AM MDT
Scattered 12,000'
6sm
280° 18kts
Gusts 26kts
KLVS 200524Z 2006/2106 26010KT P6SM SKC
   FM200900 VRB06KT P6SM SKC
   FM201600 21012G22KT P6SM SCT200
   FM201900 24027G29KT P6SM SCT150
   FM210200 28018G26KT P6SM SCT120
KLVS
Domestic
5/18/240457Z !LVS 05/010 LVS OBST TOWER LGT (ASR 1006599) 353547.20N1045608.30W (10.7NM ESE LVS) 7285.1FT (371.1FT AGL) U/S 2405180457-2409150457
5/16/241827Z !LVS 05/009 LVS OBST TOWER LGT (ASR 1005338) 352220.40N1052203.20W (20.1NM SSW LVS) 7291.0FT (282.2FT AGL) U/S 2405161827-2409131827
5/11/241603Z !LVS 05/005 LVS COM REMOTE COM OUTLET 121.5, 243.0 U/S 2405111603-2405261600
11/21/231318Z !LVS 11/007 LVS RWY 32 PAPI U/S 2311211318-2405212111EST
11/21/231314Z !LVS 11/006 LVS RWY 20 PAPI U/S 2311211314-2405212111EST
11/21/231311Z !LVS 11/005 LVS RWY 02 PAPI U/S 2311211311-2405212111EST
FDC
5/11/241533Z !FDC 4/2646 LVS IAP LAS VEGAS MUNI, LAS VEGAS, NM.
VOR RWY 20, AMDT 6B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FTI VORTAC UNMONITORED. 2405111533-2406101533EST
11/20/232036Z !FDC 3/4265 LVS IAP LAS VEGAS MUNI, LAS VEGAS, NM.
RNAV (GPS) RWY 20, ORIG-C...
CHANGE ALTIMETER SETTING NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SANTA FE RGNL ALTIMETER SETTING AND INCREASE ALL CIRCLING MDAS 200 FEET AND CIRCLING VISIBILITY CAT C 3/4 SM..
2311202036-2511202036EST
No
MON-FRI 0800-1630
IF UNAVBL - EMERG 505-429-3198 OR 505-425-7504.
CITY OF LAS VEGAS
1700 NORTH GRAND
LAS VEGAS, NM 87701
Phone: 505-454-1401
JOHN ARAGON
910 AIRPORT ROAD
LAS VEGAS, NM 87701
Phone: 505-454-0881
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
LVS
--
ACTVT PAPI RWY 02, 20, 14, 32; MIRL RWY 02/20 & 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
3
0
1
0
0
0
None
None
None
None
None

Runway 02/20

5006 ft. x 75 ft.
ASPH
Good
NONE
MED
8 /F/D/X/T
20,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 35°215°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 38' 54"N 35° 39' 34"N
Longitude 105° 08' 51"W 105° 08' 16"W
Elevation 6,866' 6,860'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights ODALS ODALS
Centerline Lights
Runway End Identifier Lights

Runway 14/32

8199 ft. x 75 ft.
ASPH
Good
NONE
MED
7 /F/D/X/T
20,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 152°332°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 35° 39' 52"N 35° 38' 40"N
Longitude 105° 08' 56"W 105° 08' 09"W
Elevation 6,840' 6,877'
Threshold Crossing Height 41 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2BIRDS ON & INVOF ARPT.
A110-4NMRS HOLD & DRCTN SIGNS OTS.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A110-6FUEL 24 HR SELF SVC WITH CREDIT CARD.
LAS VEGAS MUNI (ICAO: KLVS, IATA: LVS) is a public airport located in LAS VEGAS, NM.
