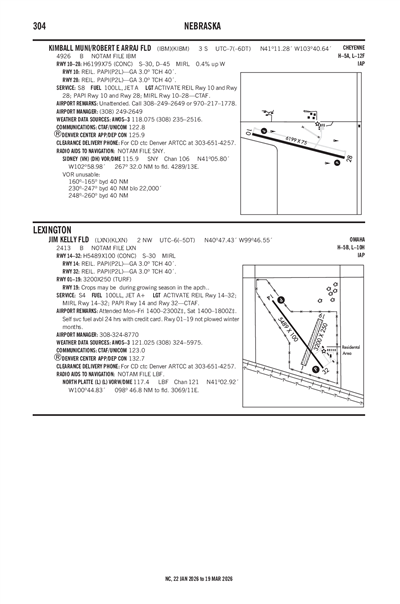

JIM KELLY FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLXN
JIM KELLY FLD
PublicPUB

2 miles NW of LEXINGTON, NE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 47' 26"N 99° 46' 33"W
2413' MSL
3413' MSL
07E
Jet A+, 100LL
COLUMBUS (OLU)
OMAHA
DENVER (ZDV)
5/16/24-6/13/24
KLXN MVFR
4:15 AM CDT
Mist
Clear
3sm
56°F
55°F
29.77"Hg
330° 5kts
AO2 T01310129
KLXN 200915Z AUTO 33005KT 3SM BR CLR 13/13 A2977 RMK AO2 T01310129
List Your Business

KLXN FBOs, Flight Schools and Ground Support

Promote Listing
Lexington Airport Autority
Freq: 123.0
Phone: (308) 324-8770
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.41 4.26
Full Serve

KLXN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLXN Hotels

No hotels are listed for this airport.

KLXN Restaurants

No restaurants are listed for this airport.

KLXN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
308-324-5975
 121.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEAR (35nm)
Mon, 5/20 3:39 AM CDT
Mon, 5/20 4:00 AM CDT - Tue, 5/21 1:00 AM CDT
LIFR
4:00 AM CDT - 5:00 AM CDT
Mist
Broken 400'
6sm
220° 7kts
MVFR
5:00 AM CDT - 7:00 AM CDT
Mist
Broken 1,500'
6sm
250° 5kts
MVFR
7:00 AM CDT - 10:00 AM CDT
Mist
Broken 1,000'
5sm
310° 5kts
MVFR
10:00 AM CDT - 2:00 PM CDT
Broken 2,000'
6sm
010° 9kts
VFR
2:00 PM CDT - 1:00 AM CDT
Scattered 4,000'
6sm
030° 10kts
KEAR 200839Z 2009/2106 22007KT 6SM BR BKN004
   FM201000 25005KT 6SM BR BKN015
   FM201200 31005KT 5SM BR BKN010
   FM201500 01009KT P6SM BKN020
   FM201900 03010KT P6SM SCT040
KLXN
Domestic
5/8/240410Z !LXN 05/001 LXN OBST TOWER LGT (ASR 1041787) 403804.00N0994152.00W (10.0NM SSE LXN) 2887.1FT (301.8FT AGL) U/S 2405080410-2406082359
4/9/241222Z !LXN 04/002 LXN OBST TOWER LGT (ASR 1278899) 405614.20N0992649.80W (17.3NM ENE LXN) 2669.9FT (250.0FT AGL) U/S 2404091222-2406092359
3/26/240843Z !LXN 03/005 LXN OBST TOWER LGT (ASR 1031500) 404204.00N0994715.00W (5.4NM S LXN) 2964.9FT (414.0FT AGL) U/S 2403260843-2405262359
No
MON-FRI 0800-1700
SAT 0800-1200
LEXINGTON AIRPORT AUTHORITY
P.O. BOX 972
LEXINGTON, NE 68850-0972
Phone: 308-324-8770
NATHAN MASTEN
1501 NORTH AIRPORT ROAD
LEXINGTON, NE 68850-3471
Phone: 308-324-8770
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
LXN
--
ACTVT REIL RY 14/32; MIRL RY 14/32; PAPI RYS 14/32 - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
21
1
0
1
0
0
Major
Major
None
None
Crop Dusting

Runway 01/19

3200 ft. x 250 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 18°198°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 47' 07"N 40° 47' 37"N
Longitude 99° 46' 31"W 99° 46' 18"W
Elevation 2,400' 2,406'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

5489 ft. x 100 ft.
CONC
Good
NONE
MED

30,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 143°323°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 47' 49"N 40° 47' 06"N
Longitude 99° 46' 60"W 99° 46' 17"W
Elevation 2,413' 2,403'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RY 01/19 NOT PLOWED WINTER MONTHS.
A110-2FOR CD CTC DENVER ARTCC AT 303-651-4257.
JIM KELLY FLD (ICAO: KLXN, IATA: LXN) is a public airport located in LEXINGTON, NE.
