KMXA
MANILA MUNI
Public
PUB
2 miles NE of MANILA, AR
View on
Map
Status
Operational
Coordinates
35° 53' 40"N
90° 09' 16"W
Elevation
243' MSL
Pattern Alt
1243' MSL
Mag Variation
01W
Fuel
100LL
FSS
JONESBORO (JBR)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
5/16/24-6/13/24
KHKA (16nm)
VFR
4:53 AM CDT
RAW
Clear
Viz
10sm
Temp
69°F
Dew
61°F
Pres
29.89"Hg
Wind
170° 4kts
RMK
AO2 SLP120 T02060161 $
KHKA 200953Z AUTO 17004KT 10SM CLR 21/16 A2989 RMK AO2 SLP120 T02060161 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
KMXA FBOs, Flight Schools and Ground Support
Promote Listing
Manila Municipal Airport
Freq: 122.8
Phone: (901) 605-1094
0 Reviews
(
Read
|
Sign In To Write
)
Independent
As of
4/27
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
4.99
Full Serve
KMXA Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
KMXA Hotels
No hotels are listed for this airport.
KMXA Restaurants
No restaurants are listed for this airport.
KMXA Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
No communication frequencies available for this airport.
FAA A/FD Pages
FAA A/FD Page

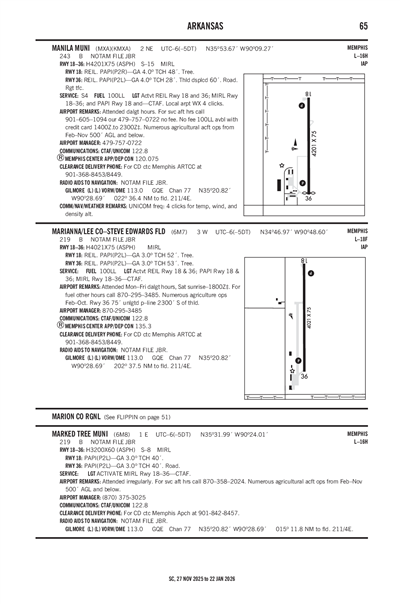

Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 18
RNAV (GPS) RWY 36
Terminal Area Forecast
KJBR (24nm)
RAW
Reported
Mon, 5/20 12:20 AM CDT
Valid
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 10:00 AM CDT
Broken 25,000'
Viz
6sm
Wind
VRB° 3kts
VFR
10:00 AM CDT - 8:00 PM CDT
Broken 25,000'
Viz
6sm
Wind
180° 9kts
VFR
8:00 PM CDT - 1:00 AM CDT
Few 25,000'
Viz
6sm
Wind
170° 3kts
KJBR 200520Z 2006/2106 VRB03KT P6SM BKN250
FM201500 18009KT P6SM BKN250
FM210100 17003KT P6SM FEW250
KMXA
Domestic
4/21/24
1510Z
!JBR 04/350 MXA OBST TOWER LGT (ASR 1306079) 355642.11N0901501.50W (5.5NM WNW MXA) 496FT (260FT AGL) U/S 2404211510-2405252359
ATC Tower
No
Attendance
DALGT
Owner
CITY OF MANILA
PO BOX 895
MANILA, AR 72442
Phone: 870-561-4437
Manager
JOHN GEARHART
PO BOX 895
MANILA, AR 72442
Phone: 479-757-0722
FSS
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
NOTAM
JBR
Light Schedule
--
Lights
ACTVT REIL RWYS 18 & 36; MIRL RWY 18/36; AND PAPI RWYS 18 & 36 - CTAF. LOCAL ARPT WX 4 CLICKS
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
20
# Multi Engine
3
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Pilot Instruction
Runway 18/36
Dimensions
4201 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
15,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
180°
0°
Traffic Pattern
Left
Right
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
35° 54' 01"N
35° 53' 19"N
Longitude
90° 09' 16"W
90° 09' 17"W
Elevation
241'
243'
Threshold Crossing Height
48 ft. AGL
28 ft. AGL
Visual Glide Path Angle
4°
4°
Visual Slope Indicator
P2R
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
NUMEROUS AGRICULTURAL ACFT OPNS FM FEB-NOV 500 FT AGL & BLO.
A110-2
FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
MANILA MUNI (ICAO: KMXA, IATA: MXA) is a public airport located in MANILA, AR.
