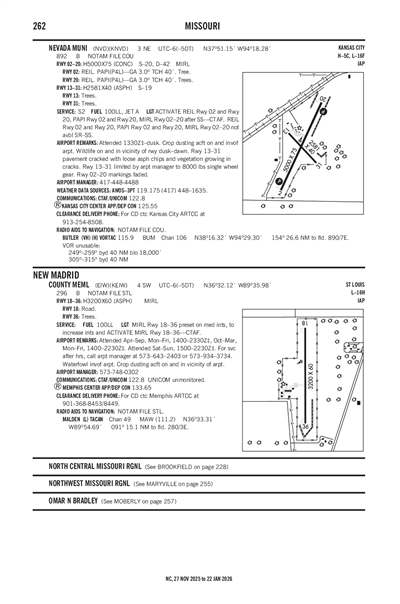

NEVADA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNVD
NEVADA MUNI
PublicPUB

3 miles NE of NEVADA, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 51' 09"N 94° 18' 17"W
892' MSL
1892' MSL
02E
Jet A, 100LL
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
5/16/24-6/13/24
No METAR is available for this location.
List Your Business

KNVD FBOs, Flight Schools and Ground Support

Promote Listing
Aero B Service
Freq: 122.8
Phone: (417) 448-5107
Other: (417) 448-4488
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 5.40 5.00

KNVD Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KNVD Hotels

No hotels are listed for this airport.

KNVD Restaurants

No restaurants are listed for this airport.

KNVD Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
417-448-1635
 119.175

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KJLN (43nm)
Mon, 5/20 6:20 AM CDT
Mon, 5/20 7:00 AM CDT - Tue, 5/21 7:00 AM CDT
VFR
7:00 AM CDT - 9:00 AM CDT
Light Thunderstorm and Rain and Thunderstorm in vicinity
Overcast 11,000'
Broken 9,000'
6sm
160° 9kts
VFR
9:00 AM CDT - 10:00 AM CDT
Scattered 13,000'
6sm
200° 14kts
VFR
10:00 AM CDT - 6:00 PM CDT
Few 15,000'
6sm
190° 14kts
Gusts 23kts
VFR
6:00 PM CDT - 7:00 AM CDT
Sky Clear
6sm
180° 11kts
Gusts 19kts
KJLN 201120Z 2012/2112 16009KT P6SM -TSRA VCTS BKN090CB OVC110
   FM201400 20014KT P6SM SCT130
   FM201500 19014G23KT P6SM FEW150
   FM202300 18011G19KT P6SM SKC
KNVD
Domestic
5/20/240421Z !COU 05/372 NVD OBST TOWER LGT (ASR 1003929) 375056.50N0942236.80W (3.4NM W NVD) 1121.1FT (273.0FT AGL) U/S 2405200421-2409170421
5/19/241933Z !COU 05/366 NVD OBST TOWER LGT (ASR 1213043) 380253.40N0942218.10W (12.1NM NNW NVD) 1319.9FT (498.0FT AGL) U/S 2405191933-2409161933
No
0730-DUSK
CITY OF NEVADA
110 S ASH
NEVADA, MO 64772
Phone: 417-448-4467
JODY BRYSON
18098 EAST 54 HIGHWAY
NEVADA, MO 65772
Phone: 417-448-4488
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
ACTVT REILS RWYS 02 & 20; PAPI RWYS 02 & 20; MIRLS RWY 02/20 AFTER SS - CTAF. REILS RWYS 02 & 20; PAPI RWYS 02 & 20; MIRLS RWYS 02 & 20 NOT AVBL SR - SS.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
19
2
0
0
0
0
Minor
Minor
None
None
Crop Dusting

Runway 02/20

5000 ft. x 75 ft.
CONC
Good
NONE
MED

20,000lbs
42,000lbs
--
--
  Runway 02 Runway 20
True Heading 26°207°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 50' 46"N 37° 51' 30"N
Longitude 94° 18' 31"W 94° 18' 03"W
Elevation 890' 881'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 13/31

2581 ft. x 40 ft.
ASPH
Poor
NONE


19,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 37° 51' 19"N 37° 51' 01"N
Longitude 94° 18' 26"W 94° 18' 04"W
Elevation 877' 874'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2WILDLIFE ON & INVOF RY DUSK-DAWN.
A110-4CROP DUSTING ACFT ON & INVOF ARPT.
A110-5FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
NEVADA MUNI (ICAO: KNVD, IATA: NVD) is a public airport located in NEVADA, MO.
