RALPH WENZ FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPNA
RALPH WENZ FLD
PublicPUB

5 miles SE of PINEDALE, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 47' 51"N 109° 48' 40"W
7096' MSL
8096' MSL
13E
Jet A, 100LL
CASPER (CPR)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KPNA MVFR
4:55 AM MDT
Overcast 1,300'
10sm
36°F
32°F
30.01"Hg
130° 8kts
AO2
KPNA 201055Z AUTO 13008KT 10SM OVC013 02/00 A3001 RMK AO2
List Your Business

KPNA FBOs, Flight Schools and Ground Support

View Profile
Visit Website
Send Message
TOP Flight
Freq: 122.8
Phone: (307) 360-9025
Other: (307) 367-2290
No Rating Available
0 Reviews (Read | Sign In To Write)
Catering, GPU/Power Cart, Internet Access, Restrooms, Transient Parking
Other
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.85
Full Serve 6.35 6.11 6.16
Promote Listing
Emblem Aviation
Freq: 122.8
Phone: (307) 367-2290
No Rating Available
0 Reviews (Read | Sign In To Write)

KPNA Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KPNA Hotels

No hotels are listed for this airport.

KPNA Restaurants

No restaurants are listed for this airport.

KPNA Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
307-367-6425
 118.325

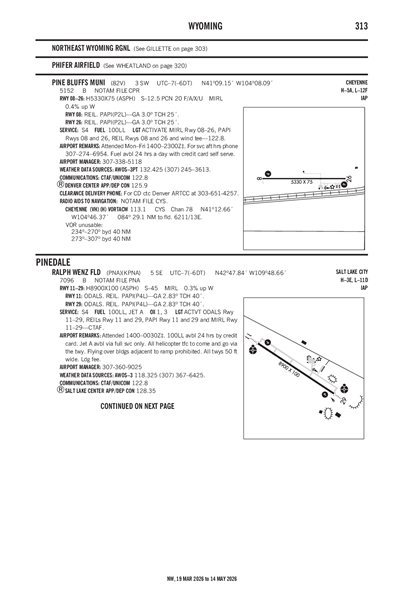

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPNA
Mon, 5/20 5:20 AM MDT
Mon, 5/20 6:00 AM MDT - Tue, 5/21 6:00 AM MDT
MVFR
6:00 AM MDT - 12:00 PM MDT
Overcast 1,500'
6sm
130° 10kts
VFR
12:00 PM MDT - 2:00 PM MDT
Light Showers and Rain
Overcast 6,000'
Scattered 3,000'
6sm
VRB° 6kts
VFR
2:00 PM MDT - 6:00 PM MDT
Light Showers and Rain
Overcast 6,000'
Scattered 3,000'
6sm
300° 9kts
VFR
6:00 PM MDT - 6:00 AM MDT
Overcast 5,000'
6sm
300° 10kts
KPNA 201120Z 2012/2112 13010KT P6SM OVC015
   FM201800 VRB06KT P6SM -SHRA SCT030 OVC060
   FM202000 30009KT P6SM -SHRA SCT030 OVC060
   FM210000 30010KT P6SM OVC050
KPNA
No NOTAM Available
No
MAY-SEPT 0800-1800
OCT.-APRIL MON - FRI 0900 - 1800
SVC AFT HRS CALL 307-413-7888 OR 307-367-2290.
TOWN OF PINEDALE
P. O. BOX 709
PINEDALE, WY 82941
Phone: 307-367-4136
RILEY WILSON
P O BOX 709
PINEDALE, WY 82941
Phone: 307-360-9025
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
PNA
--
ACTVT ODALS RWY 11/29, REILS RWY 11 & 29, PAPI RWY 11 & 29 AND MIRL RWY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
33
0
0
1
0
0
Major
Major
None
High Pressure
None

Runway 11/29

8900 ft. x 100 ft.
ASPH
Good
NONE
MED

45,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 123°303°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 48' 15"N 42° 47' 26"N
Longitude 109° 49' 29"W 109° 47' 50"W
Elevation 7,096' 7,069'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 2.83° 2.83°
Visual Slope Indicator P4L P4L
Approach Lights ODALS ODALS
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-4ALL HELICOPTER TFC TO COME & GO VIA THE TWY. FLYING OVER BLDGS ADJACENT TO RAMP IS PROHIBITED.
A110-5ALL TWYS 50 FT WIDE.
A110-6FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
RALPH WENZ FLD (ICAO: KPNA, IATA: PNA) is a public airport located in PINEDALE, WY.
