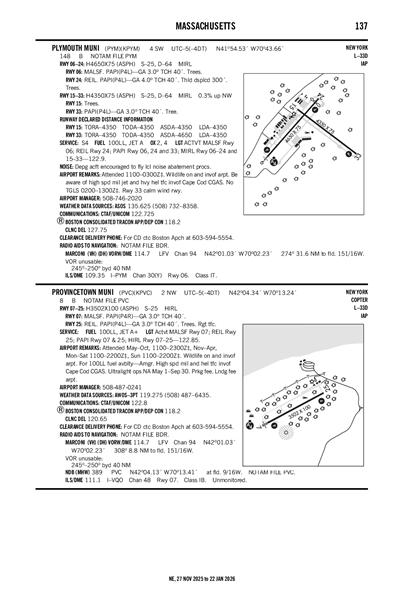

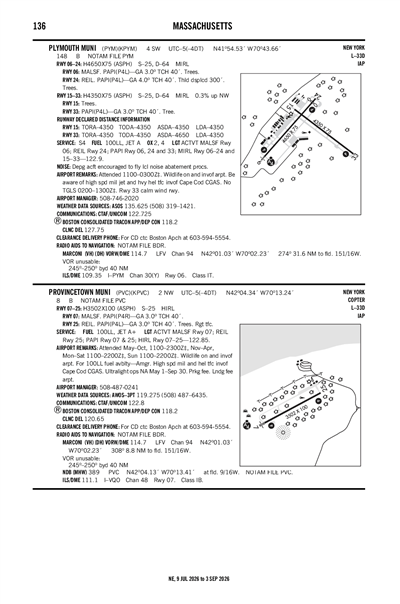

PLYMOUTH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KPYM
PLYMOUTH MUNI
PublicPUB

4 miles SW of PLYMOUTH, MA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 54' 32"N 70° 43' 39"W
148' MSL
1148' MSL
16W
Jet A, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
5/16/24-6/13/24
KPYM IFR
10:52 PM EDT
Overcast 600'
10sm
51°F
49°F
30.04"Hg
050° 5kts
AO2 SLP175 T01060094 50004
KPYM 200252Z AUTO 05005KT 10SM OVC006 11/09 A3004 RMK AO2 SLP175 T01060094 50004
List Your Business

KPYM FBOs, Flight Schools and Ground Support

Promote Listing
Alpha One Flight Services
Freq: 122.725
Phone: (508) 747-1112
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Plymouth Municipal Airport
Freq: 122.725
Phone: (508) 746-2020
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.75 6.40 6.45

KPYM Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KPYM Hotels

No hotels are listed for this airport.

KPYM Restaurants

No restaurants are listed for this airport.

KPYM Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 122.725

ASOS

ASOS
508-732-8358
 135.625

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFMH (18nm)
Sun, 5/19 7:35 PM EDT
Sun, 5/19 8:00 PM EDT - Mon, 5/20 8:00 PM EDT
IFR
8:00 PM EDT - 11:00 PM EDT
Mist
Overcast 900'
4sm
030° 11kts
Gusts 21kts
LIFR
11:00 PM EDT - 9:00 AM EDT
Light Drizzle and Mist
Broken 300'
2sm
040° 7kts
IFR
9:00 AM EDT - 11:00 AM EDT
Mist
Overcast 800'
4sm
030° 7kts
IFR
11:00 AM EDT - 1:00 PM EDT
Broken 800'
6sm
040° 7kts
MVFR
1:00 PM EDT - 7:00 PM EDT
Broken 1,000'
6sm
040° 7kts
VFR
7:00 PM EDT - 8:00 PM EDT
Scattered 9,000'
6sm
090° 4kts
KFMH 192335Z 2000/2024 03011G21KT 4SM BR OVC009
   FM200300 04007KT 2SM -DZ BR BKN003
   FM201300 03007KT 4SM BR OVC008
   FM201500 04007KT P6SM BKN008
   FM201700 04007KT P6SM BKN010
   FM202300 09004KT P6SM SCT090 AMD NOT SKED
KPYM
Domestic
5/21/241845Z !PYM 05/010 PYM AIRSPACE SEE FDC 4/6518 ZBW 91.141 VIP TFR 2405211845-2405220130
5/20/241330Z !PYM 05/006 PYM RWY 24 PAPI U/S 2405201330-2405201530
5/19/240429Z !PYM 05/008 PYM OBST TOWER LGT (ASR 1006323) 415636.90N0704202.90W (2.4NM NNE PYM) 456.0FT (221.1FT AGL) U/S 2405190429-2406030329
5/14/240454Z !PYM 05/004 PYM OBST TOWER LGT (ASR 1235743) 415041.00N0704538.10W (4.2NM SSW PYM) 247.7FT (152.9FT AGL) U/S 2405140454-2405290354
4/10/241555Z !PYM 04/003 PYM NAV ILS RWY 06 NOT MNT 2404101555-2406072000EST
1/22/241400Z !PYM 01/043 PYM AIRSPACE SEE ZBW 01/184 UAS 2401221400-2501171400
FDC
5/19/242347Z !FDC 4/6508 PYM IAP PLYMOUTH MUNI, PLYMOUTH, MA.
ILS OR LOC RWY 6, AMDT 1H...
DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LFV VOR/DME OUT OF SERVICE. 2405192347-2405262347EST
No
0600-2200
TOWN OF PLYMOUTH
246 SOUTH MEADOW RD
PLYMOUTH, MA 02360
Phone: 508-746-2020
MATTHEW CARDILLO
246 SOUTH MEADOW RD
PLYMOUTH, MA 02360
Phone: 508-746-2020
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
PYM
--
ACTVT MALSF RWY 06; REIL RWY 24; PAPI RWY 06, 24 & 33; MIRL RWY 06/24 & 15/33 - 122.9.
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
76
12
6
3
0
0
Major
Major
Low Pressure
Low Pressure
Air Freight
Crop Dusting
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

4650 ft. x 75 ft.
ASPH
Good
NONE
MED

25,000lbs
64,000lbs
--
--
  Runway 06 Runway 24
True Heading 40°220°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 41° 54' 15"N 41° 54' 51"N
Longitude 70° 44' 11"W 70° 43' 32"W
Elevation 135' 144'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes

Runway 15/33

4350 ft. x 75 ft.
ASPH
Good
NONE
MED

25,000lbs
64,000lbs
--
--
  Runway 15 Runway 33
True Heading 130°310°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 54' 44"N 41° 54' 17"N
Longitude 70° 43' 48"W 70° 43' 04"W
Elevation 145' 133'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO TGLS 2100-0800 LCL.
A110-3BE AWARE OF HIGH SPD MIL JET AND HVY HEL TFC INVOF CAPE COD CGAS.
A110-4WILDLIFE ON AND INVOF AIRPORT.
A110-5DEPG ACFT ENCOURAGED TO FLY LCL NOISE ABATEMENT PROCS.
A110-6FOR CD CTC BOSTON APCH AT 603-594-5554. WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A110-7(CONTACT TITLE) TMAHER@TOWNHALL.PLYMOUTH.MA.US.
PLYMOUTH MUNI (ICAO: KPYM, IATA: PYM) is a public airport located in PLYMOUTH, MA.
