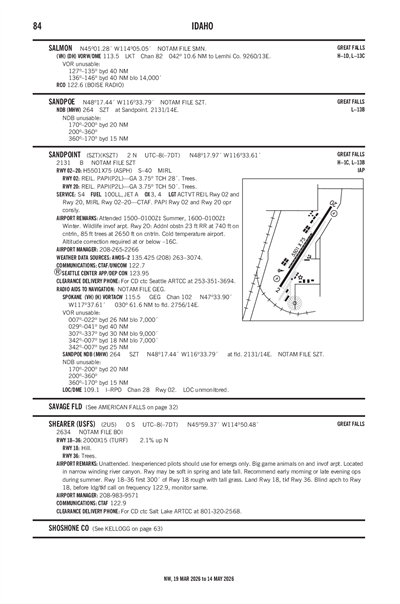

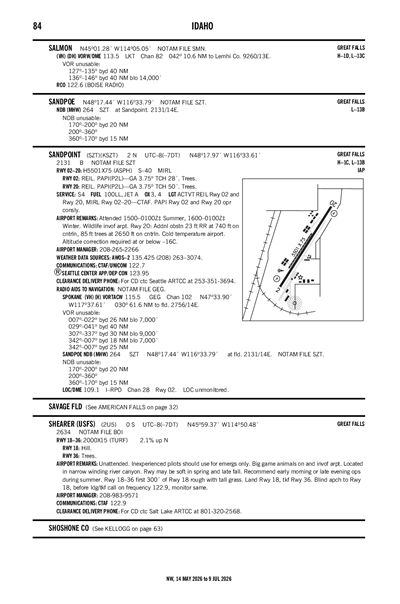

SANDPOINT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSZT
SANDPOINT
PublicPUB

2 miles N of SANDPOINT, ID
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
48° 17' 58"N 116° 33' 36"W
2131' MSL
3131' MSL
14E
Jet A, 100LL
BOISE (BOI)
GREAT FALLS
SEATTLE (ZSE)
5/16/24-6/13/24
KSZT VFR
8:15 PM PDT
Scattered 12,000'
10sm
45°F
37°F
30.09"Hg
220° 5kts
AO2
KSZT 200315Z AUTO 22005KT 10SM SCT120 07/03 A3009 RMK AO2
List Your Business

KSZT FBOs, Flight Schools and Ground Support

Granite Aviation
Freq: 122.7
Phone: (208) 263-9102
Fax: (208) 263-9144
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/7
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.10
Full Serve 7.10 6.95

KSZT Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSZT Hotels

No hotels are listed for this airport.

KSZT Restaurants

No restaurants are listed for this airport.

KSZT Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
208-263-3074
 135.425

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCOE (34nm)
Sun, 5/19 4:20 PM PDT
Sun, 5/19 5:00 PM PDT - Mon, 5/20 5:00 PM PDT
VFR
5:00 PM PDT - 9:00 PM PDT
Broken 5,000'
6sm
250° 9kts
VFR
Temporary 5:00 PM PDT - 8:00 PM PDT
Light Thunderstorm and Rain
Overcast 7,000'
Broken 4,500'
N/A
Calm
VFR
9:00 PM PDT - 8:00 AM PDT
Scattered 6,000'
6sm
150° 4kts
VFR
8:00 AM PDT - 10:00 AM PDT
Scattered 5,000'
Few 3,000'
6sm
180° 5kts
VFR
10:00 AM PDT - 5:00 PM PDT
Broken 5,000'
6sm
220° 7kts
VFR
12:00 PM PDT - 5:00 PM PDT
Light Showers and Rain
No Clouds
N/A
Calm
KCOE 192320Z 2000/2024 25009KT P6SM BKN050
   TEMPO 2000/2003 -TSRA BKN045CB OVC070
   FM200400 15004KT P6SM SCT060
   FM201500 18005KT P6SM FEW030 SCT050
   FM201700 22007KT P6SM BKN050
   PROB30 2019/2024 -SHRA
KSZT
Domestic
3/20/241739Z !SZT 03/005 SZT RWY 20 PAPI UNUSABLE 2403201739-2409202111EST
11/21/231709Z !SZT 11/003 SZT RWY 02 RWY END ID LGT U/S 2311211709-2405252111EST
FDC
5/19/240120Z !FDC 4/6305 SZT IAP SANDPOINT, SANDPOINT, ID.
LOC-A, AMDT 2A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
COE VOR/DME OUT OF SERVICE. 2405190120-2406180120EST
5/19/240120Z !FDC 4/6304 SZT ODP SANDPOINT, SANDPOINT, ID.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
COE VOR/DME OUT OF SERVICE. 2405190120-2406180120EST
No
SUMMER 0700-1700
WINTER 0800-1700
BONNER COUNTY
1500 HWY 2
SANDPOINT, ID 83864
Phone: 208-265-1438
DAVE SCHUCK
1500 HWY 2 SUITE 308
SANDPOINT, ID 83864
Phone: 208-265-2266
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
SZT
--
ACTVT REIL RWY 02 & 20; MIRL 02/20 - CTAF. PAPI RWY 02 & 20 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
28
4
0
0
0
0
Major
Major
High & Low Pressure
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 02/20

5501 ft. x 75 ft.
ASPH
Good
NONE
MED

40,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 32°212°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 48° 17' 35"N 48° 18' 21"N
Longitude 116° 33' 58"W 116° 33' 15"W
Elevation 2,128' 2,129'
Threshold Crossing Height 28 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3.75° 3.75°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RWY 20: ADNL OBSTN +23 FT R AT 680 FT ON CNTRLN, 85+ FT TREES AT 1500 FT ON CNTRLN.
A110-2WILDLIFE INVOF ARPT.
A110-3FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
SANDPOINT (ICAO: KSZT, IATA: SZT) is a public airport located in SANDPOINT, ID.
