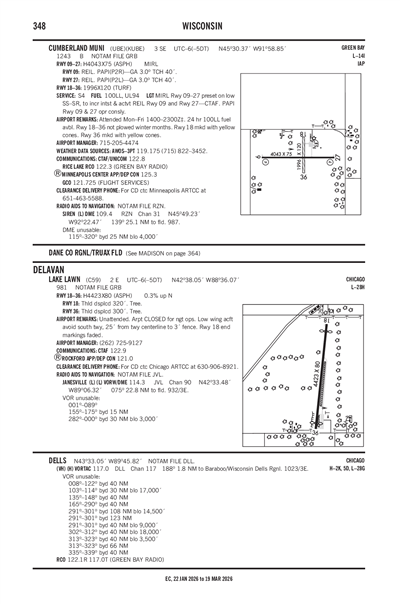

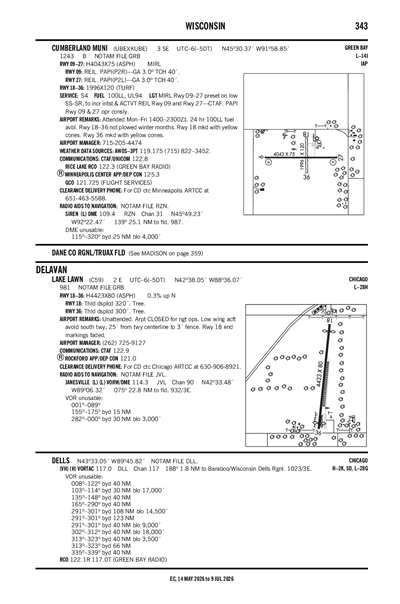

CUMBERLAND MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KUBE
CUMBERLAND MUNI
PublicPUB

3 miles SE of CUMBERLAND, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 30' 22"N 91° 58' 51"W
1243' MSL
2243' MSL
01E
100LL, UL94
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KUBE VFR
5:15 AM CDT
Light Rain
Overcast 7,000'
Broken 6,000'
10sm
55°F
52°F
29.85"Hg
110° 4kts
AO2
KUBE 201015Z AUTO 11004KT 10SM -RA BKN060 OVC070 13/11 A2985 RMK AO2
List Your Business

KUBE FBOs, Flight Schools and Ground Support

Promote Listing
Cumberland Municipal Airport
Freq: 122.8
Phone: (715) 205-4474
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/10
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.75 6.50
Full Serve

KUBE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KUBE Hotels

No hotels are listed for this airport.

KUBE Restaurants

No restaurants are listed for this airport.

KUBE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
715-822-3452
 119.175

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRNH (32nm)
Mon, 5/20 12:30 AM CDT
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 8:00 AM CDT
Overcast 5,000'
6sm
200° 5kts
MVFR
Temporary 3:00 AM CDT - 6:00 AM CDT
Light Thunderstorm and Rain and Mist
Overcast 2,800'
3sm
Calm
IFR
8:00 AM CDT - 12:00 PM CDT
Mist
Overcast 800'
5sm
150° 4kts
MVFR
12:00 PM CDT - 3:00 PM CDT
Broken 1,500'
6sm
290° 7kts
VFR
3:00 PM CDT - 1:00 AM CDT
Broken 15,000'
Scattered 3,500'
6sm
310° 7kts
KRNH 200530Z 2006/2106 20005KT P6SM OVC050
   TEMPO 2008/2011 3SM -TSRA BR OVC028CB
   FM201300 15004KT 5SM BR OVC008
   FM201700 29007KT P6SM BKN015
   FM202000 31007KT P6SM SCT035 BKN150
KUBE
Domestic
5/16/241200Z !GRB 05/218 UBE RWY 18/36 CLSD EXC 12HR PPR 715-205-4474 THU FRI MON TUE WED 1200-0001 2405161200-2405310001
5/16/241200Z !GRB 05/217 UBE RWY 09/27 CLSD EXC 12HR PPR 715-205-4474 THU FRI MON TUE WED 1200-0001 2405161200-2405310001
5/16/241200Z !GRB 05/204 UBE RWY 18/36 CLSD EXC 12HR PPR 715-205-4474 THU FRI MON TUE WED 1200-0001 2405161200-2405310001
5/16/241200Z !GRB 05/203 UBE RWY 09/27 CLSD EXC 12HR PPR 715-205-4474 THU FRI MON TUE WED 1200-0001 2405161200-2405310001
5/16/240200Z !GRB 05/210 UBE AD AP ABN U/S DLY 0200-1200 2405160200-2405311200
5/16/240200Z !GRB 05/209 UBE RWY 27 VASI U/S DLY 0200-1200 2405160200-2405311200
5/16/240200Z !GRB 05/208 UBE RWY 09 VASI U/S DLY 0200-1200 2405160200-2405311200
5/16/240200Z !GRB 05/207 UBE RWY 27 RWY END ID LGT U/S DLY 0200-1200 2405160200-2405311200
5/16/240200Z !GRB 05/206 UBE RWY 09/27 REDL U/S DLY 0200-1200 2405160200-2405311200
5/15/242001Z !GRB 05/216 UBE AD AP ABN U/S 2405152001-2405311200
5/15/242000Z !GRB 05/215 UBE RWY 27 VASI U/S 2405152000-2405311200
5/15/242000Z !GRB 05/214 UBE RWY 09 VASI U/S 2405152000-2405311200
5/15/241959Z !GRB 05/213 UBE RWY 27 RWY END ID LGT U/S 2405151959-2405311200
5/15/241959Z !GRB 05/212 UBE RWY 09/27 REDL U/S 2405151959-2405311200
5/10/241741Z !GRB 05/148 UBE OBST TOWER LGT (ASR 1040581) 452927.00N0921133.00W (8.9NM W UBE) 1598.4FT (308.4FT AGL) U/S 2405101741-2406102359
No
MON - FRI 0800-1700
CITY OF CUMBERLAND
CITY HALL BOX 155
CUMBERLAND, WI 54829
Phone: 715-822-2752
RICK BREKKE
224 241/2 AVENUE
CUMBERLAND, WI 54829
Phone: 715-205-4474
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
MIRL RWY 09/27 PRESET ON LOW SS-SR, TO INCR INTST& ACTVT REIL RWY 27 - CTAF. VASI RWY 09 & 27 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
27
0
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 09/27

4043 ft. x 75 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 45° 30' 22"N 45° 30' 21"N
Longitude 91° 59' 21"W 91° 58' 24"W
Elevation 1,243' 1,233'
Threshold Crossing Height 26 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes

Runway 18/36

1996 ft. x 120 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 30' 33"N 45° 30' 13"N
Longitude 91° 58' 48"W 91° 58' 48"W
Elevation 1,238' 1,233'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1GCO AVBL ON FREQ 121.725 THRU FLT SVCS.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
CUMBERLAND MUNI (ICAO: KUBE, IATA: UBE) is a public airport located in CUMBERLAND, WI.
