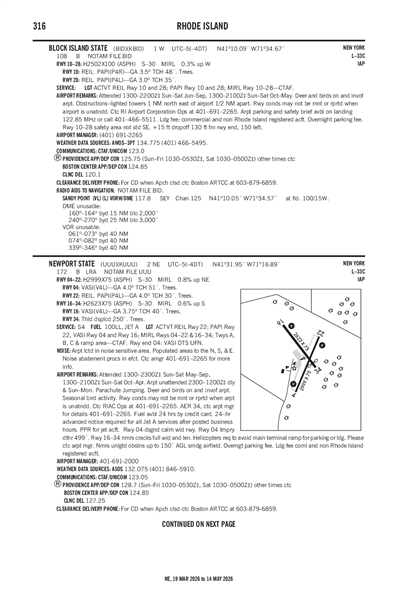

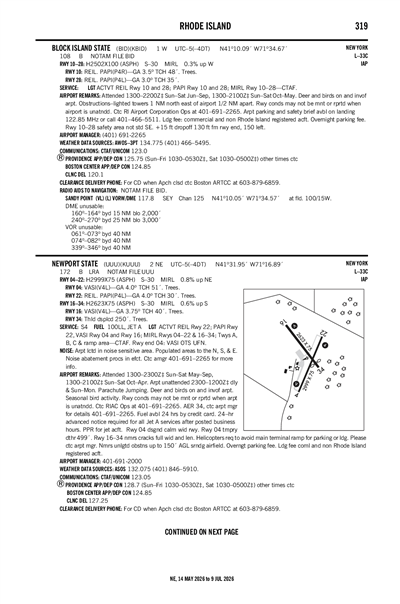

NEWPORT STATE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KUUU
NEWPORT STATE
PublicPUB

2 miles NE of NEWPORT, RI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 31' 57"N 71° 16' 54"W
172' MSL
1172' MSL
15W
Jet A, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
5/16/24-6/13/24
KUUU LIFR
5:53 AM EDT
Overcast 400'
10sm
51°F
50°F
30.02"Hg
020° 7kts
AO2 SLP166 T01060100
KUUU 200953Z AUTO 02007KT 10SM OVC004 11/10 A3002 RMK AO2 SLP166 T01060100
List Your Business

KUUU FBOs, Flight Schools and Ground Support

Promote Listing
FlightLevel Aviation
Freq: 123.05
Phone: (401) 846-9400
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 7.17
Full Serve 7.20 7.30

KUUU Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KUUU Hotels

No hotels are listed for this airport.

KUUU Restaurants

No restaurants are listed for this airport.

KUUU Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

ASOS

ASOS
401-846-5910
 132.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KPVD (13nm)
Mon, 5/20 4:09 AM EDT
Mon, 5/20 4:00 AM EDT - Tue, 5/21 2:00 AM EDT
MVFR
4:00 AM EDT - 5:00 AM EDT
Light Drizzle
Overcast 1,000'
6sm
020° 6kts
LIFR
5:00 AM EDT - 11:00 AM EDT
Mist
Overcast 300'
4sm
020° 7kts
MVFR
11:00 AM EDT - 4:00 PM EDT
Broken 1,500'
6sm
110° 5kts
VFR
4:00 PM EDT - 7:00 PM EDT
Scattered 2,500'
6sm
140° 6kts
VFR
7:00 PM EDT - 10:00 PM EDT
Broken 8,000'
6sm
160° 5kts
LIFR
10:00 PM EDT - 2:00 AM EDT
Mist
Overcast 300'
6sm
190° 3kts
KPVD 200809Z 2008/2106 02006KT 6SM -DZ OVC010
   FM200900 02007KT 4SM BR OVC003
   FM201500 11005KT P6SM BKN015
   FM202000 14006KT P6SM SCT025
   FM202300 16005KT P6SM BKN080
   FM210200 19003KT 6SM BR OVC003
KUUU
Domestic
5/17/241631Z !UUU 05/002 UUU AD AP ABN NOT ROTATING 2405171631-2406011631EST
5/6/241836Z !UUU 05/001 UUU NAV ILS RWY 22 LOC U/S 2405061836-2407232000EST
4/14/241818Z !UUU 04/008 UUU OBST TOWER LGT (ASR 1023324) 413548.00N0711122.00W (5.7NM NE UUU) 1048.9FT (1001.0FT AGL) U/S 2404141818-2405291817
3/14/241603Z !UUU 03/004 UUU TWY ALL LGT NOT STD 2403141603-2407312300
3/12/241722Z !UUU 03/002 UUU RWY 04 VASI U/S 2403121722-2409102000EST
5/27/211312Z !UUU 05/010 UUU RWY 04 THR DISPLACED 499FT 2105271312-PERM
FDC
2/6/241918Z !FDC 4/1981 UUU ODP NEWPORT STATE, NEWPORT, RI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3A...
ADD TAKEOFF OBSTACLE NOTE: RWY 34, BUILDING 780FT FROM DER, 484FT RIGHT OF CENTERLINE, 37FT AGL/187FT MSL (2023-ANE-6464-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2402061918-2602061917EST
No
MAY-SEP SUN-SAT 0800-1800
OCT-APR SUN-SAT 0800-1600
STATE OF RHODE ISLAND
RHODE ISLAND AIRPORT CORPORATION, 2000 POST RD
WARWICK, RI 02886
Phone: 401-691-2000
IFTIKHAR AHMAD
RHODE ISLAND AIRPORT CORP, 2000 POST RD
WARWICK, RI 02886
Phone: 401-691-2000
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
UUU
--
ACTVT REIL RWY 22; PAPI RWY 22, VASI RWY 4 & 16; MIRL RWY 04/22 & 16/34; TWY A, B, C & RAMP AREA - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
10
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales

Runway 04/22

2999 ft. x 75 ft.
ASPH
Poor
NONE
MED

30,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 24°204°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition FAIR FAIR
Latitude 41° 31' 39"N 41° 32' 06"N
Longitude 71° 16' 59"W 71° 16' 43"W
Elevation 148' 172'
Threshold Crossing Height 51 ft. AGL 30 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes

Runway 16/34

2623 ft. x 75 ft.
ASPH
Fair
NONE
MED

30,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 144°324°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 41° 32' 12"N 41° 31' 51"N
Longitude 71° 17' 07"W 71° 16' 46"W
Elevation 146' 162'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3.75° --
Visual Slope Indicator V4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-10RWY 04 DSGND CALM WIND RWY.
A110-2RWY CONDS MAY NOT BE MNT OR RPRTD WHEN ARPT IS UNATNDD. ARPT UNATNDD 1800-0700 DLY & SUN-MON. CTC RIAC OPS AT 401-691-2265.
A110-3APRT LCTD IN NOISE SENSITIVE AREA. POPULATED AREAS TO THE S & N. NOISE ABATEMENT PROCS IN EFCT. CTC AMGR 401-691-2265 FOR MORE INFO.
A110-4PPR FOR JET ACFT.
A110-5HELS REQSTD TO AVOID MAIN TRML RAMP FOR PRKG OR LDG. PLS CTC AMGR.
A110-6SEASONAL BIRD ACTVTY AER 34, CTC AMGR FOR DTLS 401-691-2265.
A110-724 HRS ADVN NOTICE RQRD FOR ALL JET A SVCS AFT POSTED BUS HRS.
A110-8FOR CD WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A110-9NMRS UNLGTD OBSTNS UP TO 150 FT AGL SRNDG AIRFIELD.
NEWPORT STATE (ICAO: KUUU, IATA: UUU) is a public airport located in NEWPORT, RI.
