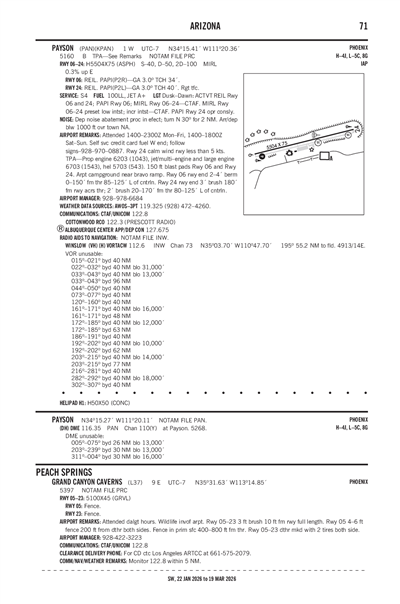

GRAND CANYON CAVERNS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

L37
GRAND CANYON CAVERNS
PublicPUB

9 miles E of PEACH SPRINGS, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 31' 38"N 113° 14' 51"W
5397' MSL
6397' MSL
13E
None Listed
PRESCOTT (PRC)
PHOENIX
LOS ANGELES (ZLA)
5/16/24-6/13/24
KIGM (37nm) VFR
2:51 AM MST
Clear
10sm
65°F
23°F
29.82"Hg
190° 8kts
AO2 SLP030 T01831050
KIGM 200951Z AUTO 19008KT 10SM CLR 18/M05 A2982 RMK AO2 SLP030 T01831050
List Your Business

L37 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

L37 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

L37 Hotels

No hotels are listed for this airport.

L37 Restaurants

No restaurants are listed for this airport.

L37 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KGCN (59nm)
Sun, 5/19 10:20 PM MST
Sun, 5/19 11:00 PM MST - Mon, 5/20 11:00 PM MST
VFR
11:00 PM MST - 8:00 AM MST
Sky Clear
6sm
220° 7kts
VFR
8:00 AM MST - 12:00 PM MST
Sky Clear
6sm
200° 15kts
Gusts 25kts
VFR
12:00 PM MST - 8:00 PM MST
Scattered 20,000'
6sm
220° 25kts
Gusts 35kts
VFR
8:00 PM MST - 11:00 PM MST
Few 25,000'
6sm
230° 12kts
Gusts 21kts
KGCN 200520Z 2006/2106 22007KT P6SM SKC
   FM201500 20015G25KT P6SM SKC
   FM201900 22025G35KT P6SM SCT200
   FM210300 23012G21KT P6SM FEW250
L37
Domestic
5/17/241924Z !PRC 05/138 L37 OBST TOWER LGT (ASR 1006622) 352407.10N1132349.20W (10.4NM SW L37) 6125.7FT (202.8FT AGL) U/S 2405171924-2409141924
No
DALGT
GRAND CANYON CAVERNS & INN, LLC
PO BOX 180
PEACH SPRINGS, AZ 86434
Phone: 928-422-3223
KLAUS SEEGER
P.O. BOX 180
PEACH SPRINGS, AZ 86434
Phone: 928-422-3223
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
--
N/A
Yes
No
No
Hanger, Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway 05/23

5100 ft. x 45 ft.
GRAVEL
Good
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 65°245°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 35° 31' 27"N 35° 31' 49"N
Longitude 113° 15' 19"W 113° 14' 23"W
Elevation 5,385' 5,397'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1FENCE AND PONDS WITHIN PRIMARY SFC 400-800 FT FM RY 23 THLD.
A110-4RY 05/23 2-3 FT BRUSH WITHIN 10 FT OF RY EDGE FULL LENGTH.
A110-5DEER AND ELK ON OR IN VICINITY OF AIRPORT.
A110-6RY 5 +4-6 FT FENCE BOTH SIDES OF RY PLUS/MINUS 200 FT FM THLD.
A110-7RWY 5/23 DTHRS MARKED WITH 2 PAINTED TIRES ON EACH SIDE OF RWY, APPX 300 FT FM THLD.
A110-8FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-9MONITOR 122.8 WITHIN 5 NM OF AIRPORT.
GRAND CANYON CAVERNS (IATA: L37) is a public airport located in PEACH SPRINGS, AZ.
