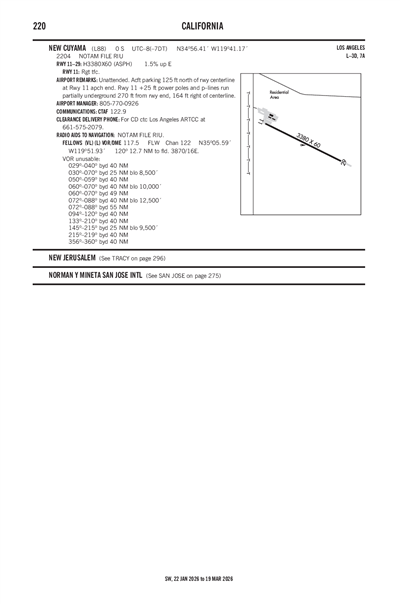

NEW CUYAMA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

L88
NEW CUYAMA
PublicPUB

0 miles S of NEW CUYAMA, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 56' 25"N 119° 41' 10"W
2204' MSL
3204' MSL
14E
None Listed
RANCHO MURIETA (RIU)
LOS ANGELES
LOS ANGELES (ZLA)
5/16/24-6/13/24
KIZA (28nm) MVFR
1:15 AM PDT
Overcast 1,000'
9sm
52°F
50°F
30.00"Hg
050° 4kts
AO2
KIZA 200815Z AUTO 05004KT 9SM OVC010 11/10 A3000 RMK AO2
List Your Business

L88 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

L88 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

L88 Hotels

No hotels are listed for this airport.

L88 Restaurants

No restaurants are listed for this airport.

L88 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KSBA (32nm)
Mon, 5/20 12:27 AM PDT
Mon, 5/20 12:00 AM PDT - Mon, 5/20 11:00 PM PDT
VFR
12:00 AM PDT - 3:00 AM PDT
Sky Clear
6sm
VRB° 3kts
MVFR
3:00 AM PDT - 6:00 AM PDT
Overcast 1,200'
6sm
VRB° 3kts
MVFR
6:00 AM PDT - 10:00 AM PDT
Light Drizzle and Mist
Overcast 2,500'
Broken 1,500'
6sm
120° 5kts
MVFR
10:00 AM PDT - 2:00 PM PDT
Overcast 2,500'
6sm
170° 6kts
VFR
2:00 PM PDT - 7:00 PM PDT
Scattered 3,000'
6sm
240° 8kts
VFR
7:00 PM PDT - 11:00 PM PDT
Scattered 3,000'
6sm
VRB° 3kts
KSBA 200727Z 2007/2106 VRB03KT P6SM SKC
   FM201000 VRB03KT P6SM OVC012
   FM201300 12005KT 6SM -DZ BR BKN015 OVC025
   FM201700 17006KT P6SM OVC025
   FM202100 24008KT P6SM SCT030
   FM210200 VRB03KT P6SM SCT030
L88
Domestic
5/5/241806Z !RIU 05/032 L88 OBST TOWER LGT (ASR 1016149) 345632.00N1194106.00W (0.1NM NNE L88) 2267.1FT (98.4FT AGL) U/S 2405051806-2406052359
No
UNATNDD
BLUE SKY SUSTAINABLE LIVING CENTER
P.O. BOX 271
NEW CUYAMA, CA 93254
Phone: 661-413-3005
EMILY JOHNSON
PO BOX 271
NEW CUYAMA, CA 93254
Phone: 805-770-0926
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
--
N/A
Yes
Yes
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway 11/29

3380 ft. x 60 ft.
ASPH
Poor
NONE


--
--
--
--
  Runway 11 Runway 29
True Heading 116°296°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 34° 56' 32"N 34° 56' 17"N
Longitude 119° 41' 28"W 119° 40' 52"W
Elevation 2,154' 2,204'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1ACFT PRKG 125 FT N OF RWY CNTRLN AT RWY 11 APCH END.
A110-2RWY 11 +25 FT PWR POLES & PLINES RUN PARTIALLY UNDERGROUND 270 FT BYD RWY END, 164 FT R OF CNTRLN.
A110-3FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
NEW CUYAMA (IATA: L88) is a public airport located in NEW CUYAMA, CA.
