PAIL
ILIAMNA
PublicPUB

2 miles NW of ILIAMNA, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
59° 45' 20"N 154° 55' 04"W
192' MSL
1192' MSL
14E
Jet A, 100LL
ILIAMNA (ILI)
KODIAK
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAIL VFR
2:53 AM AKDT
Few 4,600'
N/A
32°F
32°F
30.04"Hg
250° 6kts
AO2 SLP174 T00000000 TSNO $
PAIL 201053Z AUTO 25006KT FEW046 00/00 A3004 RMK AO2 SLP174 T00000000 TSNO $
List Your Business

PAIL FBOs, Flight Schools and Ground Support

Promote Listing
Iliamna Airport Fuel Operations
Freq: 123.6
Phone: (907) 830-1057
Other: (907) 571-2031
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 11.99 8.99
Full Serve 9.24

PAIL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAIL Hotels

No hotels are listed for this airport.

PAIL Restaurants

No restaurants are listed for this airport.

PAIL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.6

ASOS

ASOS
907-571-1483
 134.95

Other

AFIS
 134.95

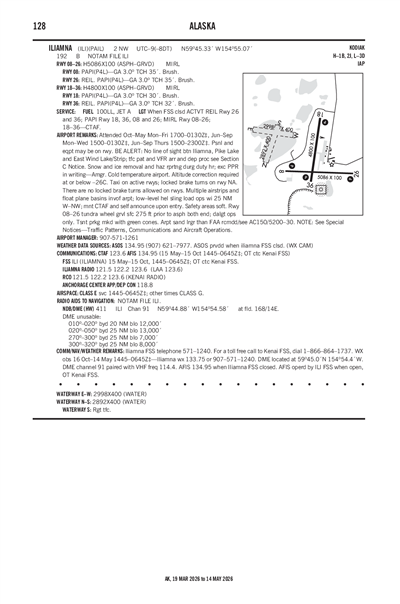

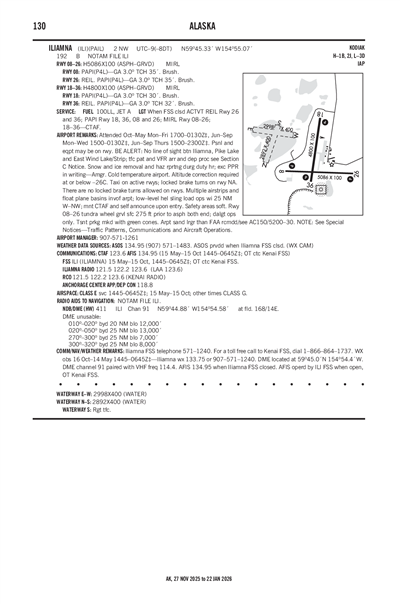

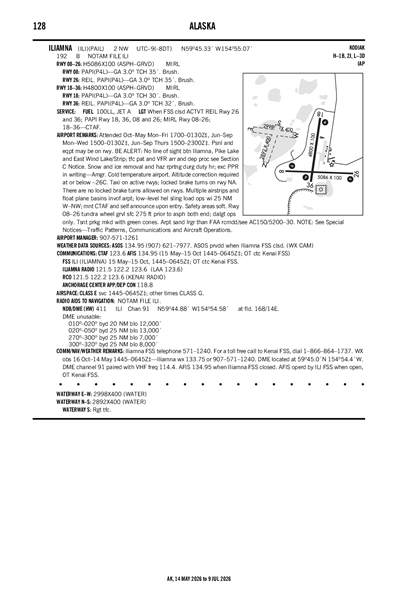

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAIL
Sun, 5/19 9:33 PM AKDT
Sun, 5/19 10:00 PM AKDT - Mon, 5/20 10:00 PM AKDT
VFR
10:00 PM AKDT - 8:00 AM AKDT
Broken 6,000'
6sm
220° 8kts
VFR
8:00 AM AKDT - 4:00 PM AKDT
Few 6,000'
6sm
VRB° 5kts
VFR
4:00 PM AKDT - 10:00 PM AKDT
Broken 6,000'
6sm
110° 13kts
Gusts 22kts
PAIL 200533Z 2006/2106 22008KT P6SM BKN060
   FM201600 VRB05KT P6SM FEW060
   FM210000 11013G22KT P6SM BKN060
PAIL
No NOTAM Available
No
OCT-MAY M-F 0800-1630
JUN-SEP M-W 0600-1630
JUNE-SEP TH 0600-1400
ALASKA DOT&PF SOUTHCOAST REGION
PO BOX 112506
JUNEAU, AK 99811-2506
Phone: (907) 465-1779
CLINT ANELON
BOX 187
ILIAMNA, AK 99606
Phone: 907-571-1261
ILIAMNA FSS (ILI)
Toll Free: LC571-1240
ILI
--
WHEN FSS CLSD ACTVT REIL RWY 26 & 36; PAPI RWY 18, 36, 08, & 26; MIRL RWY 08/26; 18/36 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
20
2
0
0
0
0
None
None
None
None
Cargo Handling

Runway 08/26

5086 ft. x 100 ft.
ASPH
Good
GRVD
MED

--
--
--
--
  Runway 08 Runway 26
True Heading 92°272°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 59° 45' 07"N 59° 45' 05"N
Longitude 154° 55' 27"W 154° 53' 47"W
Elevation 192' 144'
Threshold Crossing Height 35 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 18/36

4800 ft. x 100 ft.
ASPH
Good
GRVD
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 189°9°
Traffic Pattern Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 59° 45' 45"N 59° 44' 59"N
Longitude 154° 54' 35"W 154° 54' 49"W
Elevation 183' 174'
Threshold Crossing Height 30 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway E/W

2998 ft. x 400 ft.
WATER
Excellent
NONE


--
--
--
--
  Runway E Runway W
True Heading 98°278°
Traffic Pattern Left
Markings
Markings Condition
Latitude 59° 45' 37"N 59° 45' 33"N
Longitude 154° 56' 13"W 154° 55' 15"W
Elevation 170' 170'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway N/S

2892 ft. x 400 ft.
WATER
Excellent
NONE


--
--
--
--
  Runway N Runway S
True Heading 19°199°
Traffic Pattern Right
Markings
Markings Condition
Latitude 59° 45' 13"N 59° 45' 40"N
Longitude 154° 55' 55"W 154° 55' 37"W
Elevation 170' 170'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1SNOW & ICE REMOVAL & HAZ RPRTNG DURG DUTY HR; EXC PPR IN WRITING - AMGR.
A110-10SAFETY AREAS SOFT.
A110-12MULT AIRSTRIPS & FLOAT PLANE BASINS INVOF ARPT; LOW-LEVEL HEL SLING LOAD OPS WI 25 NM W-NW; MNT CTAF & SELF ANNOUNCE UPON ENTRY.
A110-13BE ALERT: NO LINE OF SIGHT BTN ILIAMNA, PIKE LAKE & EAST WIND LAKE/STRIP; TFC PAT & VFR ARR & DEP PROC SEE SECTION C NOTICE.
A110-16TSNT PRKG MKD WITH GREEN CONES.
A110-18WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV/.
A110-19ARPT SAND LRGR THAN FAA RCMDD/SEE AC150/5200-30.
A110-20WX OBS 16 OCT-14 MAY 0545-2145 - 133.75 CALLSIGN ILIAMNA WX OR 907-571-1240.
A110-21COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -29C.
A110-4TAXI ON ACTIVE RWYS; LOCKED BRAKE TURNS ON RWYS NA.
A110-7PSNL & EQPT MAY BE ON RWY.
ILIAMNA (ICAO: PAIL, IATA: ILI) is a public airport located in ILIAMNA, AK.
