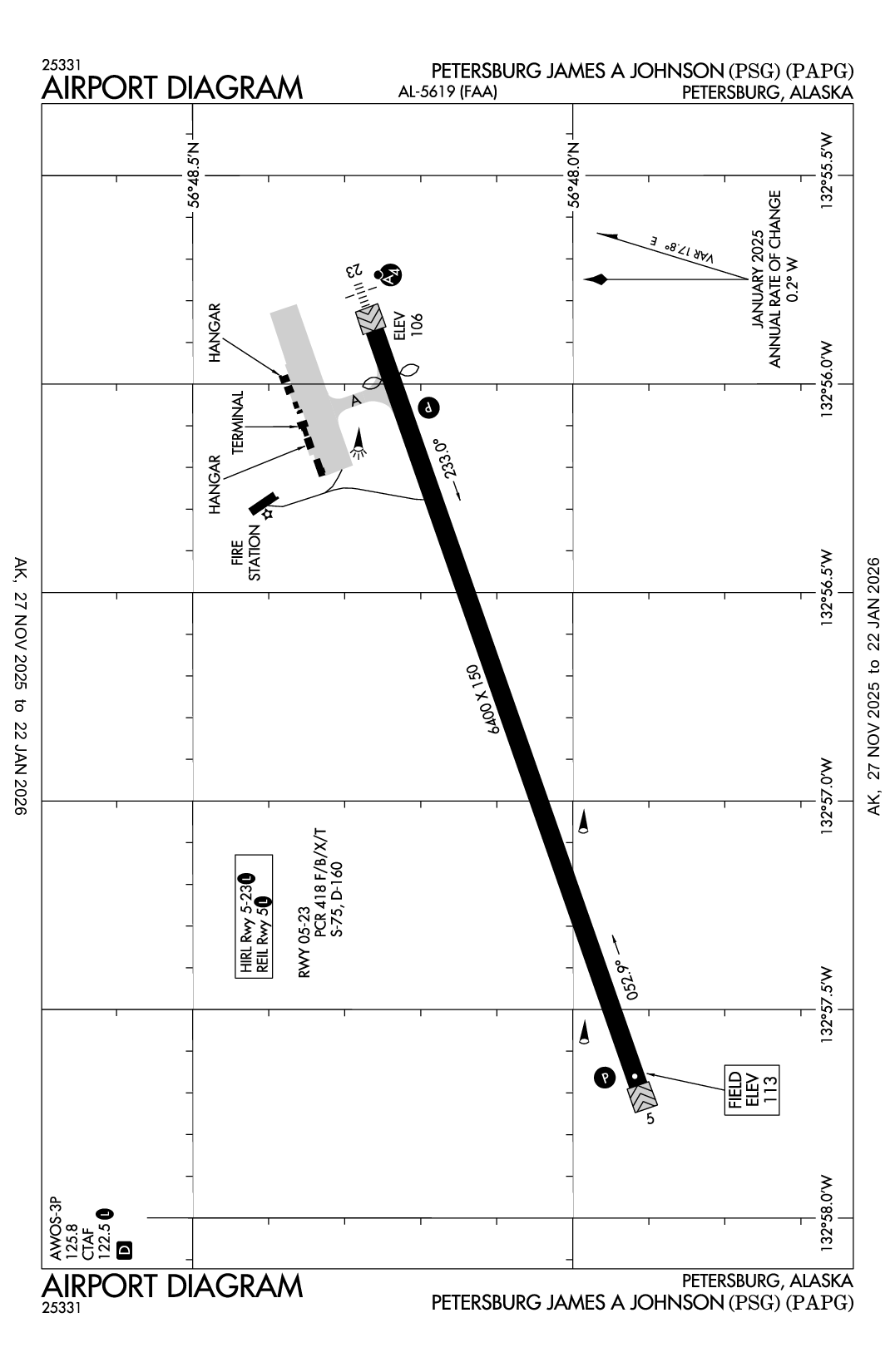

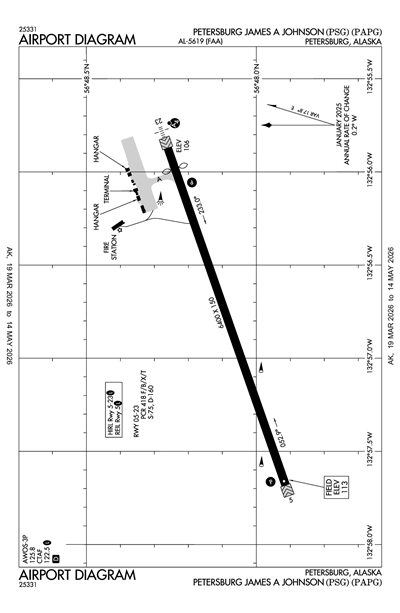

PETERSBURG JAMES A JOHNSON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAPG
PETERSBURG JAMES A JOHNSON
PublicPUB

1 miles SE of PETERSBURG, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
56° 48' 05"N 132° 56' 46"W
113' MSL
1113' MSL
21E
Jet A, 100
SITKA (SIT)
JUNEAU
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAPG MVFR
2:56 AM AKDT
Light Rain
Overcast 2,100'
10sm
43°F
42°F
30.13"Hg
130° 3kts
AO2 SLP207 P0003 T00610056
PAPG 201056Z AUTO 13003KT 10SM -RA OVC021 06/06 A3013 RMK AO2 SLP207 P0003 T00610056
List Your Business

PAPG FBOs, Flight Schools and Ground Support

Promote Listing
Temsco Helicopters
Freq: 122.5
Phone: (907) 772-4780
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 9.54 6.50
Full Serve

PAPG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAPG Hotels

No hotels are listed for this airport.

PAPG Restaurants

No restaurants are listed for this airport.

PAPG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.5

AWOS-3P

AWOS-3P
907-772-4504
 125.8

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAPG
Sun, 5/19 9:20 PM AKDT
Sun, 5/19 10:00 PM AKDT - Mon, 5/20 10:00 PM AKDT
MVFR
10:00 PM AKDT - 8:00 AM AKDT
Light Rain and Mist
Overcast 1,500'
Scattered 700'
6sm
VRB° 4kts
MVFR
8:00 AM AKDT - 6:00 PM AKDT
Light Showers and Rain
Overcast 3,000'
6sm
VRB° 5kts
MVFR
6:00 PM AKDT - 10:00 PM AKDT
Showers in vicinity
Overcast 3,000'
6sm
VRB° 3kts
PAPG 200520Z 2006/2106 VRB04KT 6SM -RA BR SCT007 OVC015
   FM201600 VRB05KT P6SM -SHRA OVC030
   FM210200 VRB03KT P6SM VCSH OVC030 AMD LTD TO CLD VIS AND WIND 2006/2015
PAPG
FDC
5/6/242139Z !FDC 4/9437 PSG SPECIAL PETERSBURG JAMES A JOHNSON, PETERSBURG, AK.
LDA/DME RWY 23, ORIG...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LVD VOR/DME OUT OF SERVICE. 2405062139-2406062139EST
5/6/242139Z !FDC 4/9434 PSG IAP PETERSBURG JAMES A JOHNSON, Petersburg, AK.
LDA/DME-D, AMDT 7...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LVD VOR/DME OUT OF SERVICE. 2405062139-2406062139EST
5/6/242139Z !FDC 4/9430 PSG SID PETERSBURG JAMES A JOHNSON, PETERSBURG, AK.
PETERSBURG ONE DEPARTURE...
DEPARTURE PROCEDURE TAKEOFF RUNWAY 5 NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LVD VOR/DME OUT OF SERVICE. 2405062139-2406062139EST
No
APR-SEP 0630-1630
OCT-MAR 0500-1600
ALASKA DOT&PF SOUTHCOAST REGION
6860 GLACIER HWY
JUNEAU, AK 99801-7999
Phone: 907-465-1779
BARRY YOUNGBERG
P.O. BOX 1108
PETERSBURG, AK 99811
Phone: 907-772-4624
SITKA FSS (SIT)
Toll Free: 1-800-478-6300
PSG
--
ACTVT MALSF RWY 23; REIL RWY 05; PAPI RWY 05 & 23; HIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
10
1
0
1
0
0
Minor
Minor
None
None
Cargo Handling

Runway 05/23

6400 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
65 /F/B/X/T
75,000lbs
160,000lbs
--
--
  Runway 05 Runway 23
True Heading 71°251°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 56° 47' 55"N 56° 48' 16"N
Longitude 132° 57' 41"W 132° 55' 52"W
Elevation 113' 106'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes No
A110-11ARPT SAND LRGR GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-12CARGO OPS OVER 100000 LB 24 HR PPR - AMGR.
A110-13WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-14COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -11C.
A110-2BIRDS & WILDLIFE ON & INVOF ARPT.
A110-4ARPT & RWY COND RPT, SNOW REMOVAL, WILDLIFE CTL & OTR MAINT SVC AVBL & VALID DURG MAINT DUTY HR; OCT-MAR 0500-1600; APR-SEP MON-FRI 0600-1630; APR-SEP SAT-SUN 0830-1630; AFT HR - AMGR.
A110-6PAEW ON RWY. RCMND VISUAL INSP BFR USE. CTC FSS FOR NOTAM.
A110-8PAJA ON RWY, TWY OR PRKG APRON NA.
PETERSBURG JAMES A JOHNSON (ICAO: PAPG, IATA: PSG) is a public airport located in PETERSBURG, AK.
