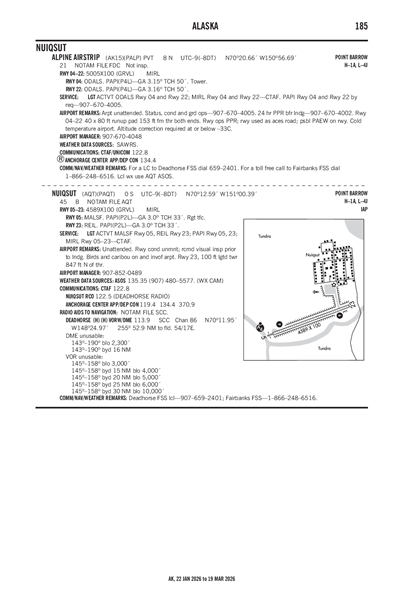

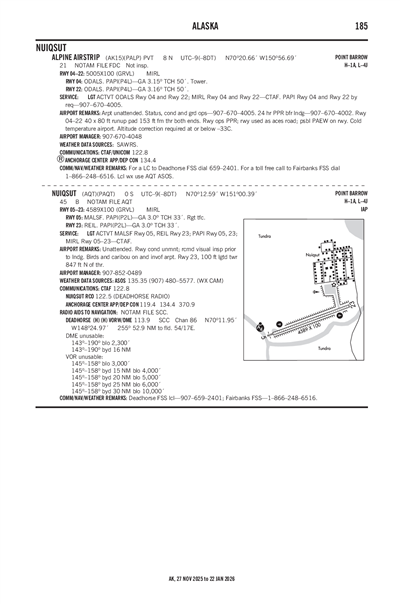

NUIQSUT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAQT
NUIQSUT
PublicPUB

0 miles S of NUIQSUT, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
70° 12' 35"N 151° 00' 23"W
45' MSL
1045' MSL
21E
None Listed
DEADHORSE (SCC)
POINT BARROW
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAQT MVFR
1:14 AM AKDT
Unknown Precipitation
Overcast 1,700'
Few 900'
10sm
30°F
27°F
30.04"Hg
050° 6kts
AO2 UPB07 P0000 T10111028 TSNO $
PAQT 200914Z AUTO 05006KT 10SM UP FEW009 OVC017 M01/M03 A3004 RMK AO2 UPB07 P0000 T10111028 TSNO $
List Your Business

PAQT FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PAQT Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAQT Hotels

No hotels are listed for this airport.

PAQT Restaurants

No restaurants are listed for this airport.

PAQT Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.8

ASOS

ASOS
907-480-5577
 135.35

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAQT
Mon, 5/20 1:01 AM AKDT
Mon, 5/20 1:00 AM AKDT - Mon, 5/20 10:00 PM AKDT
MVFR
1:00 AM AKDT - 4:00 AM AKDT
Light Showers and Snow and Mist
Overcast 1,500'
6sm
060° 12kts
IFR
4:00 AM AKDT - 6:00 AM AKDT
Light Showers and Snow and Mist
Overcast 700'
4sm
060° 12kts
LIFR
6:00 AM AKDT - 10:00 AM AKDT
Showers and Snow and Freezing Fog
Overcast 300'
0.5sm
060° 8kts
IFR
10:00 AM AKDT - 10:00 PM AKDT
Light Showers and Snow and Mist
Overcast 700'
4sm
070° 8kts
PAQT 200901Z 2009/2106 06012KT 6SM -SHSN BR OVC015
   FM201200 06012KT 4SM -SHSN BR OVC007
   FM201400 06008KT 1/2SM SHSN FZFG OVC003
   FM201800 07008KT 4SM -SHSN BR OVC007
PAQT
Domestic
5/10/241747Z !AQT 05/002 AQT AD AP INCREASED MIGRATORY BIRD AND WATERFOWL ACT 2405101747-2408302359
1/19/241940Z !AQT 01/005 AQT RWY 05 SEQUENCED FLG LGT U/S 2401191940-2407212111EST
1/19/241939Z !AQT 01/004 AQT RWY 23 PAPI U/S 2401191939-2407212111EST
FDC
4/12/241500Z !FDC 4/0181 AQT IAP NUIQSUT, NUIQSUT, AK.
RNAV (GPS) RWY 23, AMDT 1B...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SCC/PASC ALTIMETER SETTING AND INCREASE LPV DA TO 418 FEET; INCREASE LNAV/VNAV DA TO 492 FEET AND ALL VISIBILITIES 3/8 SM. INCREASE ALL MDAS 140 FEET AND LNAV AND CIRCLING VISIBILITY CAT C 1/4 SM.
2404121500-2604121500EST
No
UNATNDD
NORTH SLOPE BOROUGH
BOX 69
BARROW, AK 99723
Phone: 907-852-2611
GEORGE AHMAOGAK
BOX 69
BARROW, AK 99723
Phone: 907-852-0489
DEADHORSE FSS (SCC)
Toll Free: LC659-2401
AQT
--
ACTVT MALSF RWY 05, REIL RWY 23; PAPI RWY 05, 23; MIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
Yes
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 05/23

4589 ft. x 100 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 70°250°
Traffic Pattern Right
Markings
Markings Condition GOOD GOOD
Latitude 70° 12' 28"N 70° 12' 43"N
Longitude 151° 01' 26"W 150° 59' 21"W
Elevation 44' 38'
Threshold Crossing Height 33 ft. AGL 33 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes
A110-1BIRDS & CARIBOU ON & INVOF ARPT.
A110-3RWY COND UNMNT; RCMD VISUAL INSP PRIOR TO LNDG.
A110-5DEADHORSE FSS LCL - 907 659-2401; FAIRBANKS FSS - 1-866-248-6516.
A110-6WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV.
NUIQSUT (ICAO: PAQT, IATA: AQT) is a public airport located in NUIQSUT, AK.
