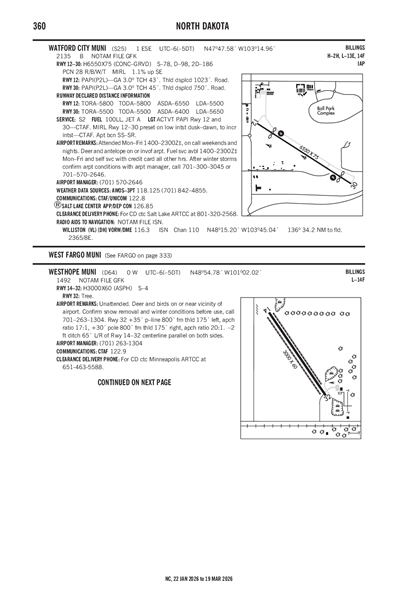

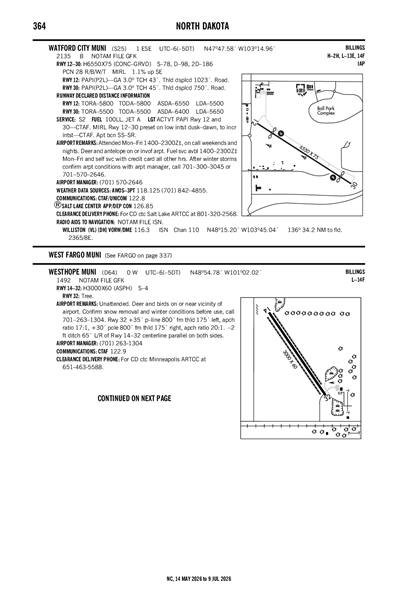

WATFORD CITY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

S25
WATFORD CITY MUNI
PublicPUB

1 miles ESE of WATFORD CITY, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 47' 35"N 103° 14' 58"W
2135' MSL
3135' MSL
07E
Jet A, 100LL
GRAND FORKS (GFK)
BILLINGS
SALT LAKE CITY (ZLC)
5/16/24-6/13/24
KS25 VFR
12:55 AM CDT
Overcast 5,000'
Broken 4,400'
10sm
46°F
46°F
29.89"Hg
220° 4kts
AO2
KS25 200555Z AUTO 22004KT 10SM BKN044 OVC050 08/08 A2989 RMK AO2
List Your Business

S25 FBOs, Flight Schools and Ground Support

Promote Listing
Watford AeroService
Freq: 122.8
Phone: (701) 570-2646
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 5/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.15 5.70
Full Serve 5.70

S25 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

S25 Hotels

No hotels are listed for this airport.

S25 Restaurants

No restaurants are listed for this airport.

S25 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
701-842-4855
 118.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KXWA (34nm)
Mon, 5/20 12:46 AM CDT
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
MVFR
1:00 AM CDT - 3:00 AM CDT
Light Rain
Overcast 2,700'
Scattered 600'
6sm
350° 11kts
VFR
3:00 AM CDT - 6:00 AM CDT
Broken 4,000'
Scattered 2,000'
6sm
290° 7kts
VFR
6:00 AM CDT - 11:00 AM CDT
Scattered 20,000'
Few 4,000'
6sm
290° 7kts
VFR
11:00 AM CDT - 7:00 PM CDT
Scattered 15,000'
Few 6,000'
6sm
300° 9kts
VFR
7:00 PM CDT - 1:00 AM CDT
Broken 10,000'
Scattered 6,000'
6sm
270° 6kts
KXWA 200546Z 2006/2106 35011KT P6SM -RA SCT006 OVC027
   FM200800 29007KT P6SM SCT020 BKN040
   FM201100 29007KT P6SM FEW040 SCT200
   FM201600 30009KT P6SM FEW060 SCT150
   FM210000 27006KT P6SM SCT060 BKN100
S25
Domestic
5/17/242134Z !GFK 05/154 S25 OBST TOWER LGT (ASR 1293842) 480218.80N1025821.70W (18.5NM NE S25) 2646.7FT (263.8FT AGL) U/S 2405172134-2406161700EST
5/16/241337Z !GFK 05/138 S25 OBST TOWER LGT (ASR 1295282) 475444.80N1030024.80W (12.1NM NE S25) 2610.6FT (298.9FT AGL) U/S 2405161337-2406172359
4/29/240856Z !GFK 04/256 S25 OBST TOWER LGT (ASR 1037190) 474614.00N1033002.00W (10.2NM W S25) 2677.2FT (298.6FT AGL) U/S 2404290856-2405290001
4/25/241628Z !GFK 04/210 S25 TWY A, A1, A2, A3, A4 EDGE LGT U/S 2404251628-2410312359
No
MON-FRI 0800-1700
ON CALL WEEKENDS AND NIGHTS
WATFORD CITY ARPT AUTH
BOX 730
WATFORD CITY, ND 58854
Phone: (701) 570-2646
LUKE TAYLOR
BOX 730
WATFORD CITY, ND 58854
Phone: (701) 570-2646
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT PAPI RWY 12 & 30 - CTAF. MIRL RWY 12/30 PRESET ON LOW INTST DUSK-DAWN, TO INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
30
3
2
0
0
0
Minor
Minor
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 12/30

6550 ft. x 75 ft.
CONC
Excellent
GRVD
MED
28 /R/B/W/T
78,000lbs
98,000lbs
186,000lbs
--
  Runway 12 Runway 30
True Heading 123°303°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 47' 52"N 47° 47' 17"N
Longitude 103° 15' 38"W 103° 14' 17"W
Elevation 2,063' 2,135'
Threshold Crossing Height 43 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1AFT WINTER STORMS CFM ARPT CONDS WITH AMGR; CALL (701) 300-3045 OR 701-570-2646.
A110-2DEER & ANTELOPE ON OR INVOF ARPT.
A110-3FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
WATFORD CITY MUNI (IATA: S25) is a public airport located in WATFORD CITY, ND.
