0I2
BRAZIL CLAY COUNTY
Public
PUB
3 miles S of BRAZIL, IN
View on
Map
Status
Operational
Coordinates
39° 28' 36"N
87° 05' 59"W
Elevation
645' MSL
Pattern Alt
1645' MSL
Mag Variation
04W
Fuel
100LL
FSS
TERRE HAUTE (HUF)
Sectional
ST LOUIS
ARTCC
INDIANAPOLIS (ZID)
Data Effective
4/18/24-5/16/24
KHUF (11nm)
VFR
4:53 AM EDT
RAW
Broken 5,000'
Few 3,500'
Viz
10sm
Temp
61°F
Dew
55°F
Pres
29.96"Hg
Wind
Calm
RMK
AO2 SLP143 T01610128 58008
KHUF 060853Z 00000KT 10SM FEW035 BKN050 16/13 A2996 RMK AO2 SLP143 T01610128 58008
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
0I2 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
0I2 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
0I2 Hotels
No hotels are listed for this airport.
0I2 Restaurants
No restaurants are listed for this airport.
0I2 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
No communication frequencies available for this airport.

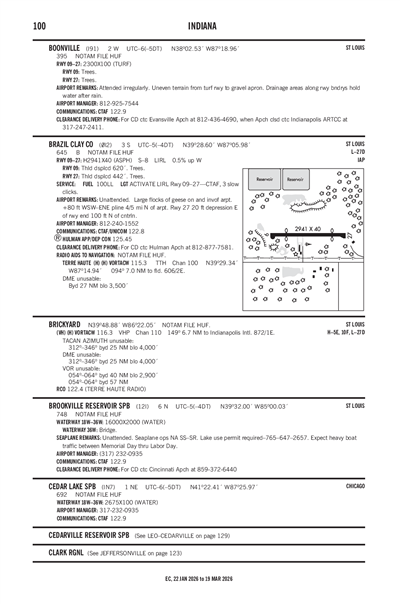

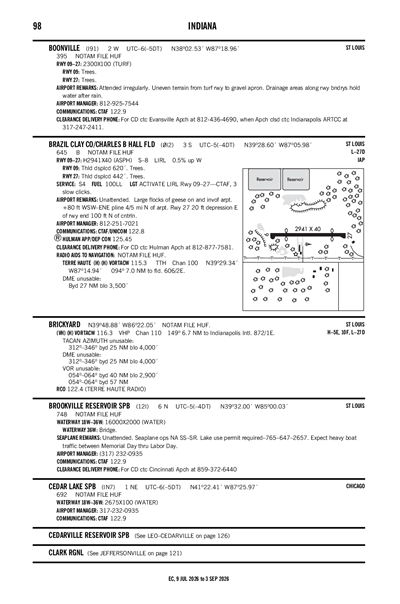

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 27
Terminal Area Forecast
KHUF (11nm)
RAW
Reported
Mon, 5/6 1:20 AM EDT
Valid
Mon, 5/6 2:00 AM EDT - Tue, 5/7 2:00 AM EDT
VFR
2:00 AM EDT - 4:00 AM EDT
Broken 20,000'
Viz
6sm
Wind
050° 6kts
VFR
4:00 AM EDT - 12:00 PM EDT
Showers in vicinity
Overcast 8,000'
Viz
6sm
Wind
050° 6kts
MVFR
12:00 PM EDT - 4:00 PM EDT
Light Showers and Rain and Mist
Overcast 2,800'
Viz
6sm
Wind
110° 8kts
MVFR
4:00 PM EDT - 5:00 PM EDT
Mist and Showers in vicinity
Overcast 2,900'
Viz
6sm
Wind
110° 9kts
MVFR
5:00 PM EDT - 9:00 PM EDT
Thunderstorm in vicinity
Overcast 2,900'
Viz
6sm
Wind
090° 9kts
VFR
9:00 PM EDT - 2:00 AM EDT
Broken 4,500'
Viz
6sm
Wind
100° 8kts
KHUF 060520Z 0606/0706 05006KT P6SM BKN200
FM060800 05006KT P6SM VCSH OVC080
FM061600 11008KT 6SM -SHRA BR OVC028
FM062000 11009KT 6SM BR VCSH OVC029
FM062100 09009KT P6SM VCTS OVC029CB
FM070100 10008KT P6SM BKN045
0I2
Domestic
5/3/24
2322Z
!HUF 05/103 0I2 OBST TOWER LGT (ASR 1218015) 393156.00N0870619.20W (3.3NM N 0I2) 946.9FT (254.9FT AGL) U/S 2405032322-2408312321
11/10/23
1622Z
!HUF 11/263 0I2 RWY 09/27 REDL U/S 2311101622-2411302359
FDC
8/14/23
1413Z
!FDC 3/3814 0I2 IAP BRAZIL CLAY COUNTY, BRAZIL, IN.
RNAV (GPS) RWY 27, ORIG-A...
DISREGARD NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT.
DISREGARD NOTE: HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA.
TERRE HAUTE (TTH) ASOS 127.5.
2308141413-2508141412EST
ATC Tower
No
Attendance
UNATNDD
Owner
BRAZIL-CLAY COUNTY BOAC
PO BOX 1
KNIGHTSVILLE, IN 47857
Phone: (812) 240-2860
Manager
KIP CLARK
PO BOX 1
KNIGHTSVILLE, IN 47857
Phone: 812-240-1552
FSS
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
NOTAM
HUF
Light Schedule
--
Lights
ACTVT LIRL RY 09/27 - CTAF 3 SLOW CLICKS .
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
16
# Multi Engine
0
# Jets
0
# Helicopters
1
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 09/27
Dimensions
2941 ft. x 40 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
LOW
Pavement Class
Single Wheel
8,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 09
Runway 27
True Heading
91°
271°
Traffic Pattern
Left
Left
Markings
NPI
BSC
Markings Condition
GOOD
GOOD
Latitude
39° 28' 37"N
39° 28' 36"N
Longitude
87° 06' 18"W
87° 05' 40"W
Elevation
645'
631'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-1
+80 FT WSW - ENE PLINE 4/5 MI N OF ARPT.
A110-3
LARGE FLOCKS OF GEESE ON & INVOF ARPT.
A110-5
FOR CD CTC HULMAN APCH AT 812-877-7581.
BRAZIL CLAY COUNTY (IATA: 0I2) is a public airport located in BRAZIL, IN.
