WOOD COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1G0
WOOD COUNTY
PublicPUB

1 miles NE of BOWLING GREEN, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 23' 28"N 83° 37' 49"W
673' MSL
1700' MSL
05W
Jet A, 100LL
CLEVELAND (CLE)
DETROIT
CLEVELAND (ZOB)
4/18/24-5/16/24
KTDZ (12nm) VFR
7:53 AM EDT
Light Rain
Overcast 10,000'
Few 7,000'
Few 6,000'
7sm
61°F
52°F
29.98"Hg
160° 5kts
AO2 RAB29 SLP151 P0000 60026 70062 T01610111 10167 20150 53023
KTDZ 031153Z AUTO 16005KT 7SM -RA FEW060 FEW070 OVC100 16/11 A2998 RMK AO2 RAB29 SLP151 P0000 60026 70062 T01610111 10167 20150 53023
List Your Business

1G0 FBOs, Flight Schools and Ground Support

Promote Listing
Wood County Regional Airport
Freq: 122.975
Phone: (419) 354-2908
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.94 4.54
Full Serve 5.94 4.54

1G0 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

1G0 Hotels

No hotels are listed for this airport.

1G0 Restaurants

No restaurants are listed for this airport.

1G0 Other Airport-Related Businesses

Promote Listing
Bowling Green State University
Freq: 122.975
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 122.975

AWOS-3

AWOS-3
419-354-1415
 120.725

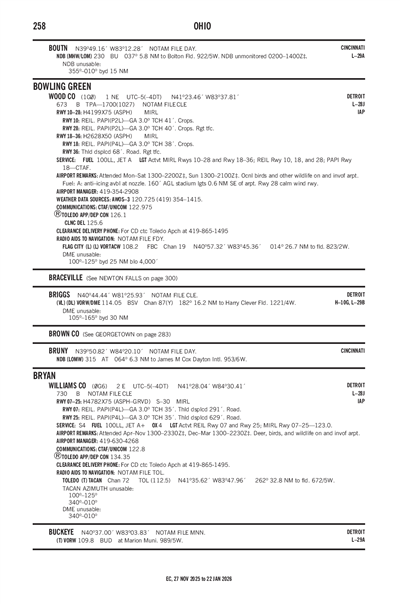

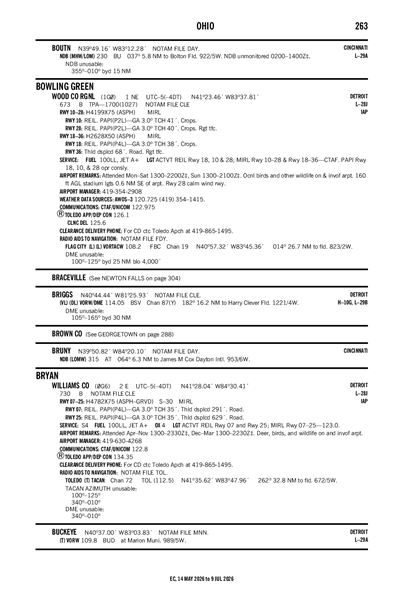

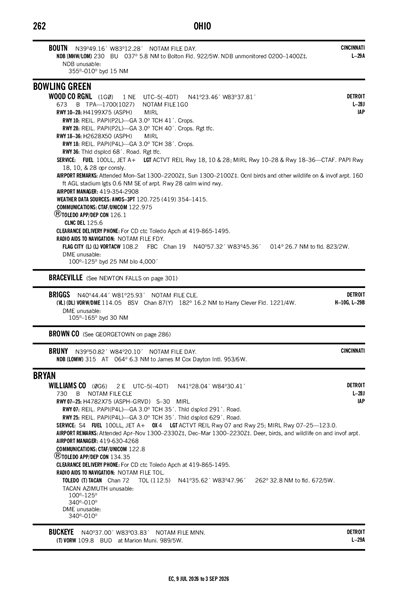

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTOL (14nm)
Fri, 5/3 7:36 AM EDT
Fri, 5/3 8:00 AM EDT - Sat, 5/4 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Light Showers and Rain
Broken 7,000'
Scattered 5,000'
6sm
VRB° 5kts
MVFR
Temporary 8:00 AM EDT - 11:00 AM EDT
Light Showers and Rain
Broken 4,000'
4sm
Calm
VFR
11:00 AM EDT - 3:00 PM EDT
Light Showers and Rain
Broken 4,000'
6sm
020° 5kts
MVFR
Temporary 11:00 AM EDT - 3:00 PM EDT
Light Showers and Rain
Broken 2,500'
5sm
Calm
VFR
3:00 PM EDT - 12:00 AM EDT
Showers in vicinity
Broken 4,500'
6sm
010° 6kts
MVFR
12:00 AM EDT - 4:00 AM EDT
Mist
Overcast 2,500'
6sm
040° 5kts
MVFR
4:00 AM EDT - 8:00 AM EDT
Mist
Overcast 1,000'
4sm
030° 4kts
KTOL 031136Z 0312/0412 VRB05KT P6SM -SHRA SCT050 BKN070
   TEMPO 0312/0315 4SM -SHRA BKN040
   FM031500 02005KT P6SM -SHRA BKN040
   TEMPO 0315/0319 5SM -SHRA BKN025
   FM031900 01006KT P6SM VCSH BKN045
   FM040400 04005KT 6SM BR OVC025
   FM040800 03004KT 4SM BR OVC010
1G0
Domestic
4/28/240907Z !CLE 04/684 1G0 OBST TOWER LGT (ASR 1016154) 412216.80N0833452.50W (2.5NM ESE 1G0) 1002.0FT (336.9FT AGL) U/S 2404280907-2405280001
4/26/241910Z !CLE 04/663 1G0 AD AP WINDCONE U/S 2404261910-2405102100
4/13/240036Z !CLE 04/359 1G0 OBST TOWER LGT (ASR 1014613) 412908.00N0834126.00W (6.3NM NNW 1G0) 1012.5FT (352.7FT AGL) U/S 2404130036-2405280036
No
MON-SAT 0800-1700
SUN 0800-1600
WOOD CO ARPT AUTH
1261 E POE RD
BOWLING GREEN, OH 43402-9392
Phone: 419-354-2908
MARK BLACK
1261 E POE RD
BOWLING GREEN, OH 43402-9392
Phone: 419-354-2908
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
ACTVT MIRL RWYS 10/28 & 18/36; REIL RWY 10, 18 & 28 PAPI RWY 18 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
42
6
0
0
0
0
None
None
None
None
Pilot Instruction

Runway 10/28

4199 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 10 Runway 28
True Heading 91°271°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 23' 30"N 41° 23' 30"N
Longitude 83° 38' 07"W 83° 37' 12"W
Elevation 672' 672'
Threshold Crossing Height 41 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

2628 ft. x 50 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 23' 36"N 41° 23' 10"N
Longitude 83° 38' 03"W 83° 38' 03"W
Elevation 671' 671'
Threshold Crossing Height 38 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1OCCNL BIRDS AND OTHER WILDLIFE ON & INVOF ARPT
A110-2160 FT AGL STADIUM LGTS .6 NM SE OF ARPT.
A110-3FOR CD CTC TOLEDO APCH AT 419-865-1495
WOOD COUNTY (IATA: 1G0) is a public airport located in BOWLING GREEN, OH.
