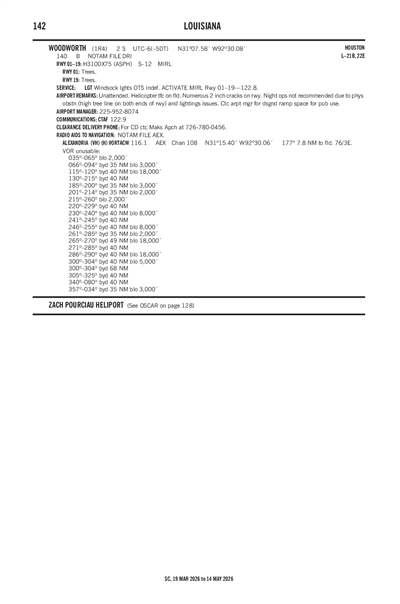

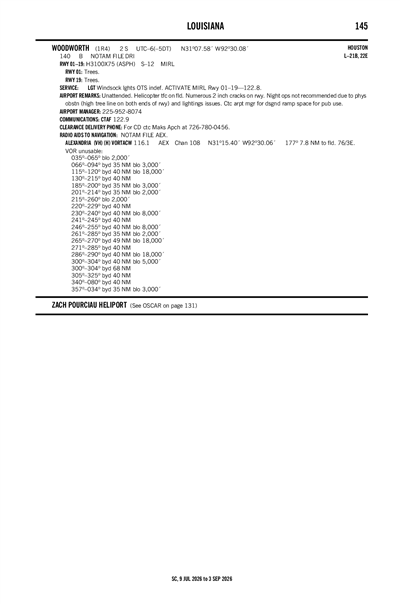

WOODWORTH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1R4
WOODWORTH
PublicPUB

2 miles S of WOODWORTH, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 07' 35"N 92° 30' 05"W
140' MSL
1140' MSL
00E
None Listed
DE RIDDER (DRI)
HOUSTON
HOUSTON (ZHU)
5/16/24-6/13/24
KAEX (13nm) VFR
6:53 AM CDT
Clear
8sm
69°F
67°F
29.89"Hg
130° 3kts
AO2 SLP124 T02060194 10222 20194 53007 $
KAEX 201153Z 13003KT 8SM CLR 21/19 A2989 RMK AO2 SLP124 T02060194 10222 20194 53007 $
List Your Business

1R4 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

1R4 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

1R4 Hotels

No hotels are listed for this airport.

1R4 Restaurants

No restaurants are listed for this airport.

1R4 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KAEX (13nm)
Mon, 5/20 6:28 AM CDT
Mon, 5/20 7:00 AM CDT - Tue, 5/21 7:00 AM CDT
VFR
7:00 AM CDT - 9:00 AM CDT
Sky Clear
6sm
VRB° 3kts
VFR
9:00 AM CDT - 7:00 AM CDT
Scattered 4,000'
6sm
160° 7kts
KAEX 201128Z 2012/2112 VRB03KT P6SM SKC
   FM201400 16007KT P6SM SCT040
1R4
Domestic
5/19/242126Z !DRI 05/605 1R4 OBST TOWER LGT (ASR 1276157) 305738.10N0922925.10W (9.9NM S 1R4) 397.0FT (310.0FT AGL) U/S 2405192126-2407032126
5/17/240329Z !DRI 05/491 1R4 OBST TOWER LGT (ASR 1001121) 311018.00N0921716.00W (11.4NM ENE 1R4) 376.0FT (310.0FT AGL) U/S 2405170329-2406010229
5/17/240323Z !DRI 05/483 1R4 OBST TOWER LGT (ASR 1224430) 311238.00N0922202.50W (8.6NM NE 1R4) 419.9FT (350.1FT AGL) U/S 2405170323-2406010223
5/14/240930Z !DRI 05/336 1R4 OBST TOWER LGT (ASR 1216646) 310445.20N0923117.20W (3.0NM SSW 1R4) 600.1FT (419.9FT AGL) U/S 2405140930-2408120400
5/12/240745Z !DRI 05/186 1R4 OBST TOWER LGT (ASR 1215924) 305701.50N0923605.30W (11.8NM SSW 1R4) 577.1FT (419.9FT AGL) U/S 2405120745-2408100400
5/8/240504Z !DRI 05/127 1R4 OBST TOWER LGT (ASR 1223627) 311240.70N0922207.80W (8.6NM NE 1R4) 386.8FT (316.9FT AGL) U/S 2405080504-2405230404
5/3/241231Z !DRI 05/073 1R4 OBST TOWER LGT (ASN 2018-ASW-10623-OE) 305955N0924341W (14.1NM WSW 1R4) 546FT (365FT AGL) U/S 2405031231-2406171231
4/21/240234Z !DRI 04/586 1R4 OBST TOWER LGT (ASR 1299110) 310640.90N0923817.80W (7.2NM W 1R4) 599.4FT (449.5FT AGL) U/S 2404210234-2406050233
No
UNATNDD
LA DEPT OF AG AND FORESTRY
PO BOX 298
WOODWORTH, LA 71485
Phone: 318-487-5989
NICHOLAS COLE
5825 FLORIDA BLVD, SUITE 1002
BATON ROUGE, LA 70806-3481
Phone: 225-952-8074
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
DRI
--
ACTVT MIRL RY 01/19 - 122.8.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
9
0
0
2
0
0
None
None
None
None
Air Ambulance

Runway 01/19

3100 ft. x 75 ft.
ASPH
Poor
NONE
MED

12,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 17°197°
Traffic Pattern Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 07' 20"N 31° 07' 50"N
Longitude 92° 30' 10"W 92° 29' 59"W
Elevation -- --
Threshold Crossing Height 20 ft. AGL 20 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator S2R S2R
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HELICOPTER TRAFFIC ON FIELD.
A110-2FOR CD CTC POLK APCH AT 337-531-2352.
WOODWORTH (IATA: 1R4) is a public airport located in WOODWORTH, LA.
