ROY OTTEN MEML AIRFIELD - Airport Diagram

3VS

ROY OTTEN MEML AIRFIELD

PublicPUB

2 miles W of VERSAILLES, MO

View on Map

Status

Operational

Coordinates

38° 25' 42"N 92° 52' 31"W

Elevation

1027' MSL

Pattern Alt

2027' MSL

Mag Variation

04E

Fuel

100LL

FSS

COLUMBIA (COU)

Sectional

KANSAS CITY

ARTCC

KANSAS CITY (ZKC)

Data Effective

5/16/24-6/13/24

KDMO (22nm) VFR

4:53 AM CDT RAW

Clear

Viz

10sm

Temp

70°F

Dew

58°F

Pres

29.79"Hg

Wind

160° 10kts

RMK

AO2 SLP077 T02110144

KDMO 200953Z AUTO 16010KT 10SM CLR 21/14 A2979 RMK AO2 SLP077 T02110144

List Your Business

3VS FBOs, Flight Schools and Ground Support

Promote Listing

Roy Otten Memorial Airfield

Freq: 122.8

Phone: (573) 378-4634

Fax: (614) 975-3615

Other: (573) 836-0506

0 Reviews (Read | Sign In To Write)

3VS Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

3VS Hotels

No hotels are listed for this airport.

3VS Restaurants

No restaurants are listed for this airport.

3VS Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

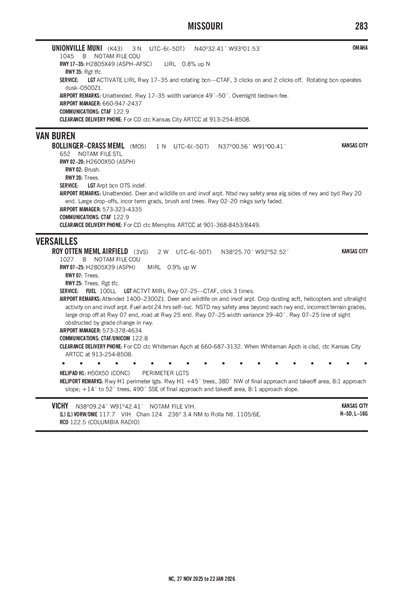

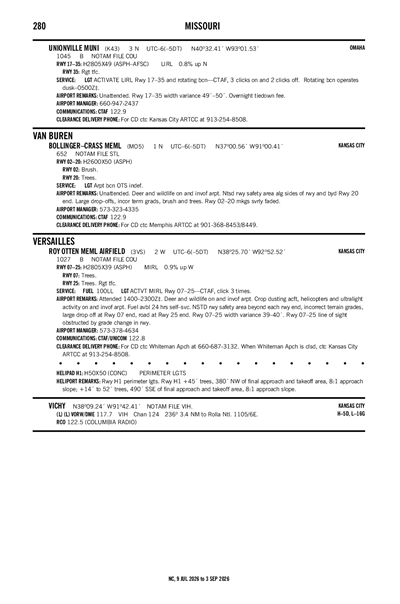

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

No Documents

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KJEF (35nm)

RAW

Reported

Mon, 5/20 1:40 AM CDT

Valid

Mon, 5/20 2:00 AM CDT - Tue, 5/21 1:00 AM CDT

VFR

2:00 AM CDT - 10:00 AM CDT

Broken 10,000'

Viz

6sm

Wind

VRB° 4kts

VFR

10:00 AM CDT - 3:00 PM CDT

Showers in vicinity

Broken 4,000'

Viz

6sm

Wind

190° 9kts

VFR

3:00 PM CDT - 9:00 PM CDT

Thunderstorm in vicinity

Broken 5,000'

Viz

6sm

Wind

190° 9kts

VFR

9:00 PM CDT - 1:00 AM CDT

Scattered 9,000'

Viz

6sm

Wind

160° 6kts

KJEF 200640Z 2007/2106 VRB04KT P6SM BKN100
   FM201500 19009KT P6SM VCSH BKN040
   FM202000 19009KT P6SM VCTS BKN050CB
   FM210200 16006KT P6SM SCT090

3VS

Domestic
5/17/241734Z	!COU 05/353 3VS AD AP FUEL NOT AVBL 2405171734-2406152359
5/4/241233Z	!COU 05/072 3VS OBST TOWER LGT (ASR 1236142) 381807.30N0924859.10W (8.1NM SSE 3VS) 1193.2FT (345.1FT AGL) U/S 2405041233-2408042359
5/2/242025Z	!COU 05/049 3VS OBST TOWER LGT (ASR 1259714) 382636.60N0925901.50W (5.2NM W 3VS) 1356.6FT (259.8FT AGL) U/S 2405022025-2408021159
3/7/240101Z	!COU 03/070 3VS OBST TOWER LGT (ASR 1012625) 382630.00N0924928.00W (2.5NM ENE 3VS) 1371.7FT (356.0FT AGL) U/S 2403070101-2407312359

ATC Tower

Attendance

0800-1700

Owner

CITY OF VERSAILLES
104 N. FISHER ST.
VERSAILLES, MO 65084
Phone: 573-378-4634

Manager

JAMIE MORROW
10998 HWY 52
VERSAILLES, MO 65084
Phone: 573-378-4634

FSS

COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF

NOTAM

COU

Light Schedule

Lights

ACTVT MIRL RY 07/25 - CTAF, CLICK 3 TIMES.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction

Runway 07/25

Dimensions

2805 ft. x 39 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	73°	253°
Traffic Pattern	Left	Right
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	38° 25' 38"N	38° 25' 46"N
Longitude	92° 52' 48"W	92° 52' 14"W
Elevation	1,027'	1,003'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

Dimensions

50 ft. x 50 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

PERI

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H1	Runway
True Heading	88°	268°
Traffic Pattern
Markings	BSC
Markings Condition	GOOD
Latitude	38° 25' 43"N	N/A
Longitude	92° 52' 17"W	N/A
Elevation	1,010'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	CROP DUSTING ACFT AND HELICOPTERS; AND ULTRALIGHT ACTIVITY ON AND INVOF ARPT.
A110-3	DEER & WILDLIFE ON & INVOF ARPT.
A110-4	RY 07/25 LINE OF SIGHT OBSTRUCTED BY GRADE CHANGE IN RY.
A110-5	NTSD RY SAFETY AREA BYND EACH RY END; INCORRECT TERRAIN GRADES, LARGE DROP OFF AT RY 07 END, ROAD AT RY 25 END.
A110-6	FOR CD CTC WHITEMAN APCH AT 660-687-3132. WHEN WHITEMAN APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.

ROY OTTEN MEML AIRFIELD (IATA: 3VS) is a public airport located in VERSAILLES, MO.
