5Y1
ALBERT J LINDBERG
Public
PUB
2 miles N of HESSEL, MI
View on
Map
Status
Operational
Coordinates
46° 02' 08"N
84° 25' 04"W
Elevation
760' MSL
Pattern Alt
1760' MSL
Mag Variation
00E
Fuel
100LL
FSS
GREEN BAY (GRB)
Sectional
LAKE HURON
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/16/24-6/13/24
KCIU (13nm)
VFR
6:56 AM EDT
RAW
Clear
Viz
10sm
Temp
52°F
Dew
43°F
Pres
29.98"Hg
Wind
Calm
RMK
AO2 SLP151 T01110061
KCIU 201056Z AUTO 00000KT 10SM CLR 11/06 A2998 RMK AO2 SLP151 T01110061
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
5Y1 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
5Y1 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
5Y1 Hotels
No hotels are listed for this airport.
5Y1 Restaurants
No restaurants are listed for this airport.
5Y1 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

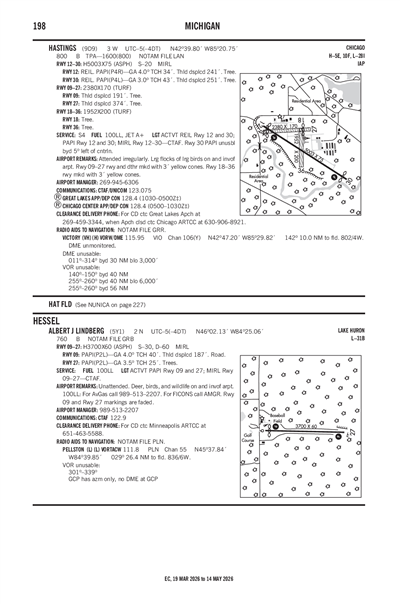

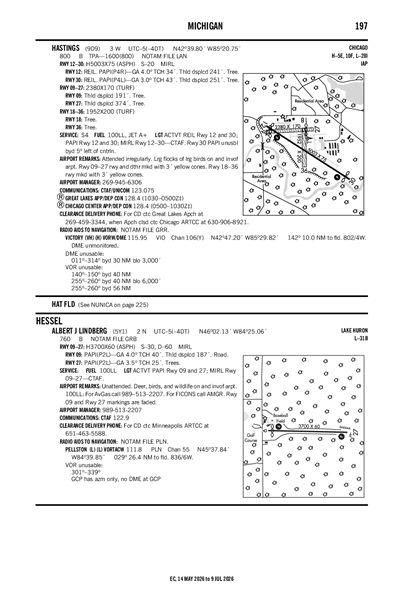

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KCIU (13nm)
RAW
Reported
Mon, 5/20 1:20 AM EDT
Valid
Mon, 5/20 2:00 AM EDT - Tue, 5/21 2:00 AM EDT
VFR
2:00 AM EDT - 11:00 AM EDT
Broken 20,000'
Scattered 12,000'
Viz
6sm
Wind
VRB° 3kts
VFR
11:00 AM EDT - 2:00 PM EDT
Showers in vicinity
Broken 10,000'
Scattered 5,000'
Viz
6sm
Wind
140° 7kts
VFR
2:00 PM EDT - 8:00 PM EDT
Light Showers and Rain
Broken 8,000'
Broken 4,000'
Viz
6sm
Wind
130° 8kts
MVFR
8:00 PM EDT - 2:00 AM EDT
Light Showers and Rain and Mist
Overcast 4,000'
Broken 2,500'
Viz
5sm
Wind
120° 7kts
KCIU 200520Z 2006/2106 VRB03KT P6SM SCT120 BKN200
FM201500 14007KT P6SM VCSH SCT050 BKN100
FM201800 13008KT 6SM -SHRA BKN040 BKN080
FM210000 12007KT 5SM -SHRA BR BKN025 OVC040
5Y1
Domestic
1/3/24
1510Z
!GRB 01/053 5Y1 OBST TOWER LGT (ASR 1006719) 460308.00N0840638.00W (12.8NM E 5Y1) 1628.6FT (863.8FT AGL) U/S 2401031510-2412312359
ATC Tower
No
Attendance
UNATNDD
Owner
CLARK TOWNSHIP
PO BOX 367
CEDARVILLE, MI 49719-0367
Phone: 906-484-2672
Manager
JOSEPH BAKER
PO BOX 367
CEDARVILLE, MI 49719-0367
Phone: 906-430-8034
FSS
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
NOTAM
GRB
Light Schedule
--
Lights
ACTVT PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
No
# Single Engine
3
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 09/27
Dimensions
3700 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
30,000lbs
Double Wheel
60,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 09
Runway 27
True Heading
91°
271°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
FAIR
FAIR
Latitude
46° 02' 08"N
46° 02' 07"N
Longitude
84° 25' 30"W
84° 24' 37"W
Elevation
760'
760'
Threshold Crossing Height
40 ft. AGL
25 ft. AGL
Visual Glide Path Angle
4°
3.5°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2
FOR FICONS CALL AMGR OR 989-513-2207.
A110-4
FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
ALBERT J LINDBERG (IATA: 5Y1) is a public airport located in HESSEL, MI.
