9K7
ELLSWORTH MUNI
PublicPUB

1 miles N of ELLSWORTH, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 45' 04"N 98° 13' 45"W
1633' MSL
2633' MSL
04E
100LL
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
5/16/24-6/13/24
KLYO (25nm) VFR
4:35 AM CDT
Clear
10sm
59°F
58°F
29.77"Hg
140° 7kts
AO2 T01500143
KLYO 200935Z AUTO 14007KT 10SM CLR 15/14 A2977 RMK AO2 T01500143
List Your Business

9K7 FBOs, Flight Schools and Ground Support

Promote Listing
Ellsworth Municipal Airport
Freq: 122.7
Phone: (785) 472-5608
Other: (785) 472-5566
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent, Other
As of 5/14
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.18
Full Serve

9K7 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

9K7 Hotels

No hotels are listed for this airport.

9K7 Restaurants

No restaurants are listed for this airport.

9K7 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3PT

AWOS-3PT
785-472-9746
 119.675

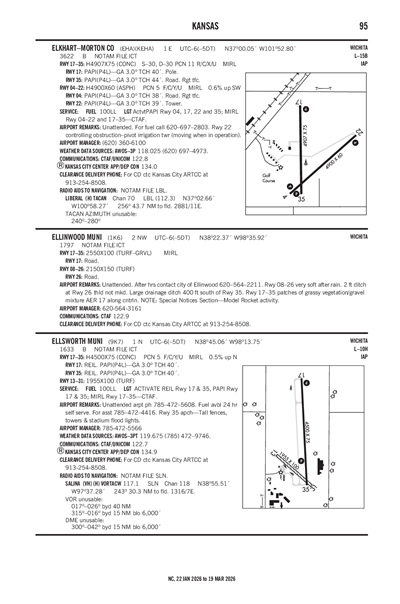

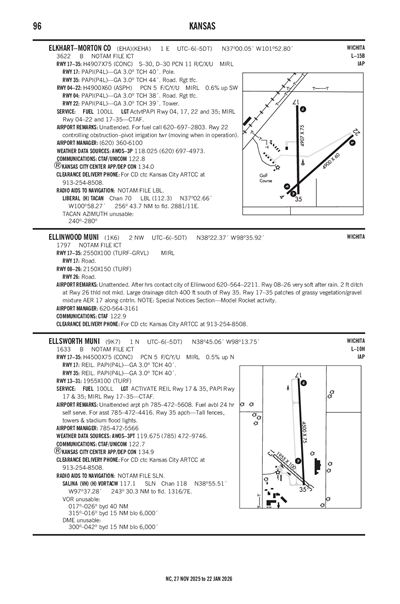

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSLN (28nm)
Mon, 5/20 12:22 AM CDT
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 6:00 AM CDT
Broken 10,000'
Scattered 5,000'
6sm
120° 9kts
MVFR
6:00 AM CDT - 12:00 PM CDT
Broken 2,500'
6sm
130° 10kts
VFR
12:00 PM CDT - 1:00 AM CDT
Broken 4,000'
6sm
150° 11kts
KSLN 200522Z 2006/2106 12009KT P6SM SCT050 BKN100
   FM201100 13010KT P6SM BKN025
   FM201700 15011KT P6SM BKN040
9K7
Domestic
5/20/240353Z !ICT 05/379 9K7 OBST TOWER LGT (ASR 1261071) 384434.40N0980228.90W (8.8NM E 9K7) 1831.0FT (254.9FT AGL) U/S 2405200353-2406040253
5/20/240313Z !ICT 05/374 9K7 OBST TOWER LGT (ASR 1286707) 384411.80N0975906.90W (11.5NM E 9K7) 1882.5FT (311.0FT AGL) U/S 2405200313-2409170313
5/19/242258Z !ICT 05/348 9K7 OBST TOWER LGT (ASR 1225680) 385028.10N0981151.40W (5.6NM NNE 9K7) 2024.3FT (200.1FT AGL) U/S 2405192258-2405312359
5/19/242147Z !ICT 05/345 9K7 OBST TOWER LGT (ASR 1286659) 385033.50N0982752.70W (12.3NM WNW 9K7) 2093.2FT (350.1FT AGL) U/S 2405192147-2409162147
4/30/241838Z !ICT 04/445 9K7 OBST TOWER LGT (ASR 1325164) 385032.36N0982017.28W (7.5NM NW 9K7) 2216FT (445FT AGL) U/S 2404301838-2406141830
4/4/241538Z !ICT 04/062 9K7 OBST TOWER LGT (ASR 1257372) 383620.50N0982243.90W (11.2NM SW 9K7) 2125.7FT (309.7FT AGL) U/S 2404041538-2407032359
3/6/240109Z !ICT 03/061 9K7 OBST TOWER LGT (ASR 1244351) 385117.00N0981225.70W (6.3NM NE 9K7) 2111.9FT (315.0FT AGL) U/S 2403060109-2405312359
4/10/232207Z !ICT 04/083 9K7 RWY 12/30 CHANGED TO RWY 13/31 2304102207-PERM
5/17/221200Z !ICT 05/228 9K7 RWY 17/35 COMMISSIONED 4500FT X 75FT CONC LGTD. DECLARED DIST: RWY 17 TORA 4500FT TODA 4500FT ASDA
4500FT LDA 4500FT. RWY 35 TORA 4500FT TODA 4500FT ASDA 4500FT LDA 4500FT. 2205171200-PERM
No
UNATNDD
CITY OF ELLSWORTH
CITY HALL 1ST & K
ELLSWORTH, KS 67439
Phone: 785-472-5566
DUSTIN STAMBAUGH
121 W 1ST ST
ELLSWORTH, KS 67439
Phone: 785-472-5566
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT REIL RWY 17 & 35, PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes
No
No
Tie-Down
No
11
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 13/31

1955 ft. x 60 ft.
TURF
Good
NONE


--
--
--
--
  Runway 13 Runway 31
True Heading 131°311°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 38° 44' 59"N 38° 44' 46"N
Longitude 98° 13' 58"W 98° 13' 39"W
Elevation 1,609' 1,608'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4500 ft. x 75 ft.
ASPH
Good
NONE
MED
5 /F/C/Y/U
--
--
--
--
  Runway 17 Runway 35
True Heading 177°357°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 45' 31"N 38° 44' 46"N
Longitude 98° 13' 45"W 98° 13' 42"W
Elevation 1,633' 1,608'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2IN APCH AREA TO RWY 35 ARE FENCES; CLUSTER LIGHTS & TOWERS.
A110-3ARPT PUBLIC PHONE NUMBER 785-472-5608.
A110-4FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
ELLSWORTH MUNI (IATA: 9K7) is a public airport located in ELLSWORTH, KS.
