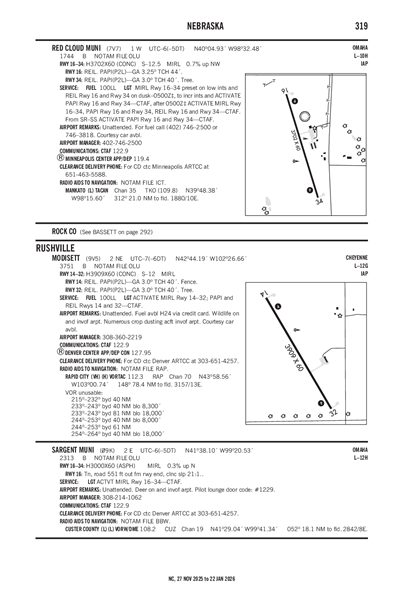

MODISETT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

9V5
MODISETT
PublicPUB

2 miles NE of RUSHVILLE, NE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 44' 12"N 102° 26' 40"W
3751' MSL
4751' MSL
08E
100LL
COLUMBUS (OLU)
CHEYENNE
DENVER (ZDV)
5/16/24-6/13/24
KGRN (12nm) VFR
5:55 AM MDT
Broken 12,000'
10sm
46°F
37°F
29.94"Hg
330° 12kts
Gusts 19kts
AO2 T00790030 10115 20078
KGRN 201155Z AUTO 33012G19KT 10SM BKN120 08/03 A2994 RMK AO2 T00790030 10115 20078
List Your Business

9V5 FBOs, Flight Schools and Ground Support

Promote Listing
Rushville Airport Authority
Phone: (308) 327-2221
Other: (308) 360-1917
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.00
Full Serve

9V5 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

9V5 Hotels

No hotels are listed for this airport.

9V5 Restaurants

No restaurants are listed for this airport.

9V5 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCDR (30nm)
Mon, 5/20 5:20 AM MDT
Mon, 5/20 6:00 AM MDT - Tue, 5/21 6:00 AM MDT
VFR
6:00 AM MDT - 9:00 AM MDT
Broken 15,000'
6sm
VRB° 6kts
VFR
9:00 AM MDT - 2:00 PM MDT
Broken 8,000'
6sm
030° 10kts
VFR
2:00 PM MDT - 6:00 PM MDT
Thunderstorm in vicinity
Broken 4,000'
6sm
030° 15kts
Gusts 25kts
MVFR
6:00 PM MDT - 6:00 AM MDT
Light Thunderstorm and Rain
Overcast 1,000'
3sm
020° 10kts
Gusts 20kts
KCDR 201120Z 2012/2112 VRB06KT P6SM BKN150
   FM201500 03010KT P6SM BKN080
   FM202000 03015G25KT P6SM VCTS BKN040CB
   FM210000 02010G20KT 3SM -TSRA OVC010CB
9V5
Domestic
3/1/241501Z !OLU 03/007 9V5 RWY 32 PAPI UNUSABLE 2403011501-2409022111EST
3/1/241500Z !OLU 03/006 9V5 RWY 14 PAPI UNUSABLE 2403011500-2409022111EST
No
UNATNDD
RUSHVILLE AIRPORT AUTHORITY
P.O. BOX 99
RUSHVILLE, NE 69360-0099
Phone: 308-327-2221
BRAD YOUNKIN
PO BOX 99
RUSHVILLE, NE 69360-0099
Phone: 308-360-2219
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
OLU
--
ACTVT MIRL RY 14/32; PAPI AND REIL RYS 14 & 32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
0
0
0
0
0
None
None
None
None
None

Runway 14/32

3909 ft. x 60 ft.
CONC
Good
NONE
MED

12,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 150°330°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 44' 28"N 42° 43' 55"N
Longitude 102° 26' 53"W 102° 26' 26"W
Elevation 3,749' 3,751'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2NUMEROUS CROP DUSTING ACFT INVOF ARPT.
A110-3WILDLIFE ON & INVOF ARPT.
A110-4COURTESY CAR AVBL.
A110-5FOR CD CTC DENVER ARTCC AT 303-651-4257.
MODISETT (IATA: 9V5) is a public airport located in RUSHVILLE, NE.
