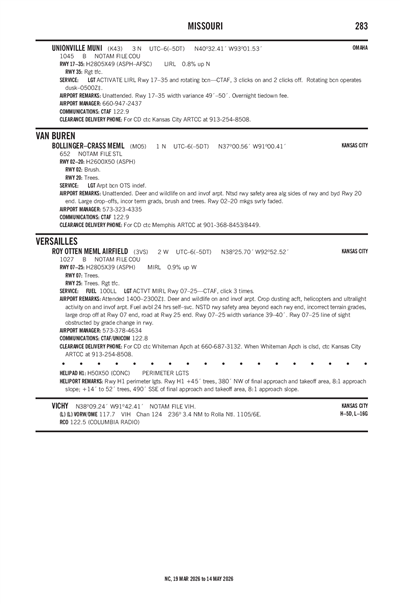

UNIONVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

K43
UNIONVILLE MUNI
PublicPUB

3 miles N of UNIONVILLE, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 32' 25"N 93° 01' 32"W
1045' MSL
2045' MSL
04E
None Listed
COLUMBIA (COU)
OMAHA
KANSAS CITY (ZKC)
5/16/24-6/13/24
KCNC (33nm) IFR
5:15 AM CDT
Rain
Overcast 1,700'
Broken 800'
Scattered 400'
2sm
63°F
63°F
29.74"Hg
100° 6kts
AO2
KCNC 201015Z AUTO 10006KT 2SM RA SCT004 BKN008 OVC017 17/17 A2974 RMK AO2
List Your Business

K43 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

K43 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

K43 Hotels

No hotels are listed for this airport.

K43 Restaurants

No restaurants are listed for this airport.

K43 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KOTM (43nm)
Mon, 5/20 2:16 AM CDT
Mon, 5/20 2:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
2:00 AM CDT - 7:00 AM CDT
Light Showers and Rain and Mist
Overcast 6,000'
6sm
180° 11kts
MVFR
Temporary 3:00 AM CDT - 5:00 AM CDT
Thunderstorm and Rain and Mist
Overcast 3,500'
4sm
Calm
VFR
7:00 AM CDT - 10:00 AM CDT
Showers in vicinity
Overcast 6,000'
6sm
140° 7kts
VFR
10:00 AM CDT - 3:00 PM CDT
Broken 4,000'
6sm
210° 11kts
VFR
3:00 PM CDT - 1:00 AM CDT
Light Showers and Rain and Mist and Thunderstorm in vicinity
Scattered 8,000'
6sm
210° 8kts
KOTM 200716Z 2007/2106 18011KT 6SM -SHRA BR OVC060
   TEMPO 2008/2010 4SM TSRA BR OVC035CB
   FM201200 14007KT P6SM VCSH OVC060
   FM201500 21011KT P6SM BKN040
   FM202000 21008KT 6SM -SHRA BR VCTS SCT080CB
K43
Domestic
3/29/241554Z !COU 03/451 K43 OBST TOWER LGT (ASR 1228170) 402812.50N0924843.30W (10.6NM ESE K43) 1330.7FT (344.8FT AGL) U/S 2403291554-2405302359
2/25/242330Z !COU 02/333 K43 OBST TOWER LGT (ASR 1225630) 402809.40N0930239.40W (4.3NM S K43) 1406.5FT (344.8FT AGL) U/S 2402252330-2406282359
No
UNATNDD
CITY OF UNIONVILLE
1611 GRANT PO BOX 255
UNIONVILLE, MO 63565
Phone: 660-947-2438
CITY HALL
1611 GRANT ST, PO BOX 255
UNIONVILLE, MO 63565
Phone: 660-947-2437
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
ACTVT LIRL RY 17/35- CTAF; 3 CLICKS ON & 2 CLICKS OFF.
DUSK-2300. ACTVT ROTG BCN - CTAF; 3 CLICKS ON & 2 CLICKS OFF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
0
0
0
0
0
None
None
None
None
None

Runway 17/35

2805 ft. x 49 ft.
ASPH
Good
AFSC
LOW

--
--
--
--
  Runway 17 Runway 35
True Heading 173°353°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 32' 39"N 40° 32' 11"N
Longitude 93° 01' 34"W 93° 01' 30"W
Elevation 1,045' 1,022'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
UNIONVILLE MUNI (IATA: K43) is a public airport located in UNIONVILLE, MO.
