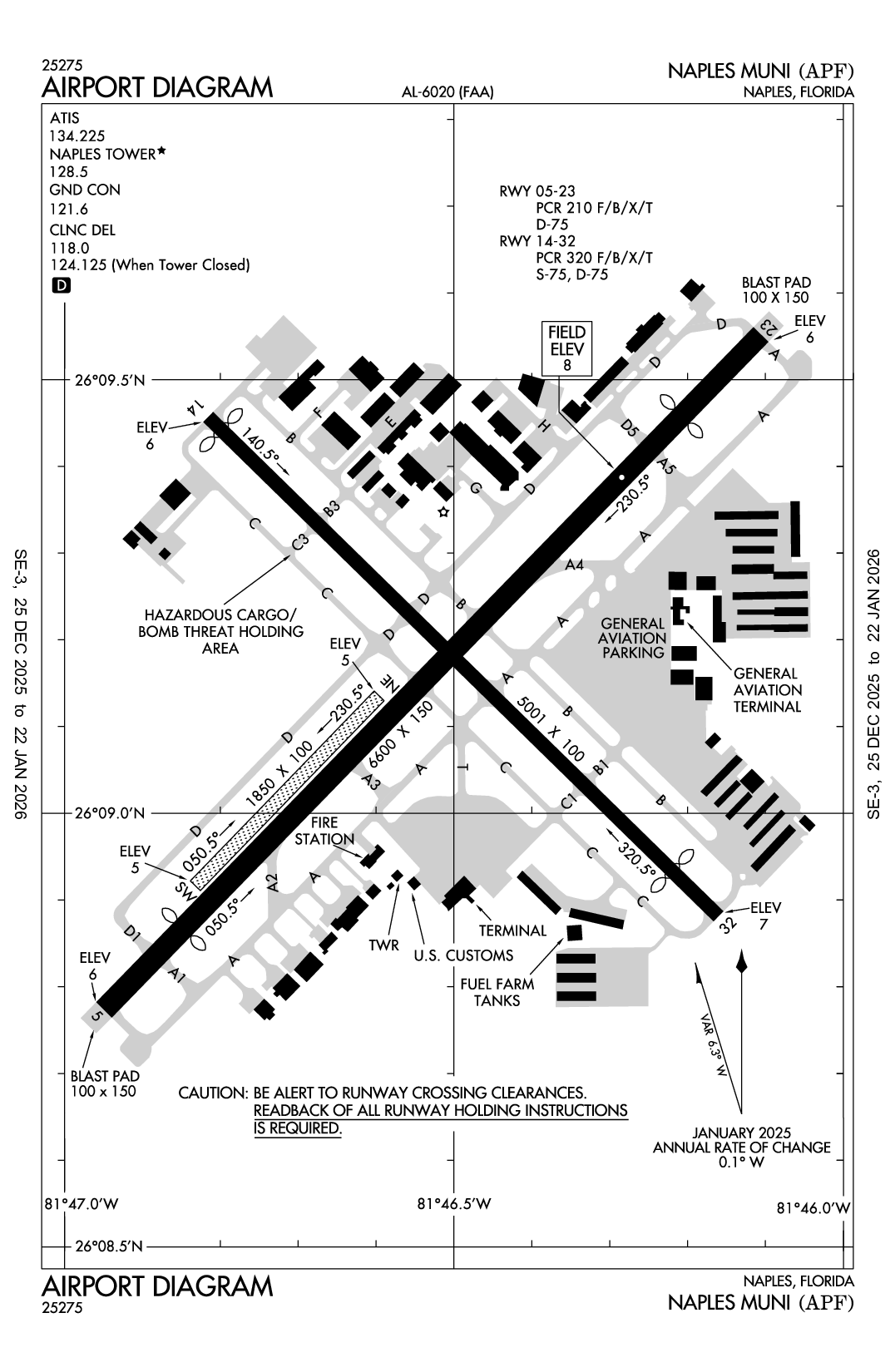

NAPLES MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAPF
NAPLES MUNI
PublicPUB

2 miles NE of NAPLES, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 09' 09"N 81° 46' 32"W
8' MSL
1008' MSL
03W
Jet A, Jet A+, 100LL, UL94
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
4/18/24-5/16/24
KAPF VFR
6:53 PM EDT
Few 10,000'
Few 4,900'
10sm
80°F
63°F
30.05"Hg
100° 11kts
Gusts 21kts
AO2 SLP175 T02670172
KAPF 282253Z 10011G21KT 10SM FEW049 FEW100 27/17 A3005 RMK AO2 SLP175 T02670172
List Your Business

KAPF FBOs, Flight Schools and Ground Support

Naples Aviation
Freq: 128.825
Phone: (239) 643-0404
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.46
Full Serve 7.21 6.11 7.00
Promote Listing
Naples Jet Center
Phone: (239) 649-7900
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel, World Fuel
As of 4/12
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.26

KAPF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KAPF Hotels

No hotels are listed for this airport.

KAPF Restaurants

No restaurants are listed for this airport.

KAPF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 128.5

ATIS

ATIS
239-643-5230
 134.225

ASOS

ASOS
239-643-9886
 134.225

Clearance Delivery

CD/P
 118.0

Ground

GND/P
 121.6

Tower

LCL/P
 128.5

Terminal Area Forecast

KAPF
Sun, 4/28 7:20 PM EDT
Sun, 4/28 8:00 PM EDT - Mon, 4/29 8:00 PM EDT
VFR
8:00 PM EDT - 11:00 PM EDT
Broken 5,000'
Scattered 2,500'
6sm
100° 12kts
Gusts 20kts
VFR
11:00 PM EDT - 10:00 AM EDT
Scattered 2,500'
6sm
090° 10kts
VFR
10:00 AM EDT - 8:00 PM EDT
Scattered 25,000'
Few 2,500'
6sm
120° 12kts
Gusts 20kts
KAPF 282320Z 2900/2924 10012G20KT P6SM SCT025 BKN050
   FM290300 09010KT P6SM SCT025
   FM291400 12012G20KT P6SM FEW025 SCT250
KAPF
Domestic
5/1/240200Z !APF 04/091 APF TWY A BTN TWY A3 AND TWY T CLSD 2405010200-2405031000
5/1/240200Z !APF 04/089 APF RWY 05/23 CLSD DLY 0200-1000 2405010200-2405031000
4/30/240400Z !APF 04/100 APF COM REMOTE COM OUTLET 122.5 U/S 2404300400-2404301000
4/30/240400Z !APF 04/099 APF COM REMOTE TRANS/REC 124.125 U/S 2404300400-2404301000
4/26/240648Z !APF 04/096 APF OBST TOWER LGT (ASR 1010596) 261931.00N0814620.00W (10.3NM NE APF) 316.9FT (304.8FT AGL) U/S 2404260648-2407250400
4/23/240312Z !APF 04/086 APF TWY D5 HLDG PSN SIGN FOR RWY 05/23 LGT U/S 2404230312-2405072200
4/23/240126Z !APF 04/085 APF TWY B HLDG PSN SIGN FOR RWY 05/23 LGT U/S 2404230126-2405070200
4/22/241225Z !APF 04/084 APF OBST TOWER LGT (ASR 1020921) 260930.30N0814030.30W (5.5NM E APF) 210.0FT (192.9FT AGL) U/S 2404221225-2407210400
4/22/241100Z !APF 04/083 APF OBST CRANE (ASN 2023-ASO-8791-OE) 261019N0814525W (1.6NM NE APF) 200FT (188FT AGL) FLAGGED 2404221100-2405042200
4/22/241100Z !APF 04/082 APF OBST CRANE (ASN 2023-ASO-8795-OE) 261019N0814523W (1.6NM NE APF) 200FT (188FT AGL) FLAGGED 2404221100-2405042200
4/22/241100Z !APF 04/062 APF OBST CRANE (ASN UNKNOWN) 260812N0814502W (1.2NM SE APCH END RWY 32)
80FT (70FT AGL) FLAGGED 2404221100-2404302200
4/18/241025Z !APF 04/079 APF RWY 05/23 EDGE MARKINGS SW SIDE NOT STD 2404181025-2405032200
4/18/240426Z !APF 04/078 APF OBST TOWER LGT (ASR 1254751) 260713.20N0814057.20W (5.3NM ESE APF) 365.2FT (354.0FT AGL) U/S 2404180426-2405030326
4/17/241214Z !APF 04/075 APF OBST POLE LGT (ASN 2023-ASO-8923-NRA) 260909N0814618W (0.2NM E APF) 66FT (60FT AGL) U/S 2404171214-2406302359
4/17/241214Z !APF 04/074 APF OBST POLE LGT (ASN 2023-ASO-8922-NRA) 260907N0814615W (0.3NM E APF) 66FT (60FT AGL) U/S 2404171214-2406302359
4/17/241213Z !APF 04/073 APF OBST POLE LGT (ASN 2023-ASO-8921-NRA) 260917N0814614W (0.3NM ENE APF) 76FT (70FT AGL) U/S 2404171213-2406302359
4/17/241212Z !APF 04/072 APF OBST POLE LGT (ASN 2023-ASO-8920-NRA) 260913N0814615W (0.3NM ENE APF) 96FT (90FT AGL) U/S 2404171212-2406302359
4/17/241210Z !APF 04/071 APF OBST POLE LGT (ASN 2023-ASO-8919-NRA) 260912N0814618W (0.2NM ENE APF) 76FT (70FT AGL) U/S 2404171210-2406302359
4/17/241149Z !APF 04/070 APF OBST POLE (ASN UNKNOWN) 260910N0814616W (.25NM S APCH END RWY 23)
79FT (70FT AGL) NOT LGTD 2404171149-2404302300
4/1/240804Z !APF 04/001 APF OBST TOWER LGT (ASN 2021-ASO-22208-OE) 261234N0813601W (10.2NM ENE APF) 271FT (260FT AGL) U/S 2404010804-2405160803
3/18/241524Z !APF 03/036 APF RWY 05 LEAD OFF CL MARKINGS AT TWY A3 OBSC 2403181524-2405261000
3/18/241518Z !APF 03/035 APF TWY A3 HLDG PSN SIGN FOR RWY 05/23 MISSING 2403181518-2405261000
3/11/240130Z !APF 03/020 APF AD AP MOBILE FUEL NOT AVBL DLY 0130-1030 2403110130-2411031030
1/2/241512Z !APF 01/005 APF OBST CRANE (ASN 2023-ASO-29793-OE) 260926N0814831W (1.8NM W APF) 195FT (190FT AGL) FLAGGED AND LGTD 2401021512-2405012200
10/30/231403Z !APF 10/094 APF OBST CRANE (ASN 2023-ASO-28442-OE) 260930N0814833W (1.8NM W APF) 265FT (260FT AGL) FLAGGED AND LGTD 2310301403-2405012100
FDC
4/27/241944Z !FDC 4/5890 APF SID NAPLES MUNI, NAPLES, FL.
CSHEL SIX DEPARTURE (RNAV)...
GPS REQUIRED,
RSW TACAN OUT OF SERVICE. 2404271944-2412071944EST
Yes
0600-2200
CITY OF NAPLES APT AUTH
160 AVIATION DR NORTH
NAPLES, FL 34104
Phone: 239-643-0733
CHRISTOPHER A. ROZANSKY
160 AVIATION DR NORTH
NAPLES, FL 34104
Phone: 239-643-0733
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
APF
--
WHEN ATCT CLSD ACTVT REIL RWY 05, 14, 23 & 32; PAPI RWY 14 & 32; MIRL RWY 05/23 & 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
213
40
76
20
0
1
Major
Major
High & Low Pressure
None
Crop Dusting
Air Ambulance
Charter Service
Aircraft Rental
Aircraft Sales

Runway 05/23

6600 ft. x 150 ft.
ASPH
Fair
GRVD
MED
53 /F/B/X/T
--
75,000lbs
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 08' 46"N 26° 09' 33"N
Longitude 81° 46' 57"W 81° 46' 06"W
Elevation 6' 6'
Threshold Crossing Height 31 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

5001 ft. x 100 ft.
ASPH
Good
GRVD
MED
16 /F/B/X/T
--
75,000lbs
--
--
  Runway 14 Runway 32
True Heading 134°314°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 26° 09' 27"N 26° 08' 53"N
Longitude 81° 46' 49"W 81° 46' 10"W
Elevation 6' 7'
Threshold Crossing Height 41 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway NE/SW

1850 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway NE Runway SW
True Heading 44°224°
Traffic Pattern
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 26° 08' 55"N 26° 09' 08"N
Longitude 81° 46' 50"W 81° 46' 36"W
Elevation 5' 5'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1EXTMY NOISE SENSITIVE AREA ALL QUADS; TBJTS USE CLOSE-IN NOISE ABATEMENT PROC.
A110-10RUNUPS NA 2200 - 0700; TWY A RUNUP PADS FOR RWY 5/23 PISTON ACFT ONLY; JET ACFT RUNUP AREA TWY C BTW TWY C3 & TWY D PPR - ATCT .
A110-11RWY 23 DSGND CALM WIND RWY FOR ARRS 2200-0600. RWY 5 DSGND CALM WIND RWY FOR DEPS 2200-0600.
A110-12FULL SVC FUEL NOT AVBL DLY 0130-1030Z.
A110-3CLSD TO ACFT EXCEEDING 75000 LBS MAX GWT DUAL GEAR INDCD ON ACFT OPRG CERT ISSUED BY MANUFACTURER.
A110-7TWY C FM C-1 TO ER RWY 32 NOT VISIBLE FM ATCT.
A110-8STAGE 1 & 2 JET ACFT OPS PROHIBITED. VOLUNTARY RSTRN EXIST FOR ACFT OPS 2200-0700. VOLUNTARY RESTRAINT FROM TGL OPS 2200-0700.
A110-9FOR CD IF UNA TO CTC ON FSS FREQ, CTC FT MYERS APCH AT 239-416-1026, WHEN APCH CLSD CTC MIAMI ARTCC AT 305-716-1731.
NAPLES MUNI (ICAO: KAPF, IATA: APF) is a public airport located in NAPLES, FL.
