KARB - ANN ARBOR MUNI

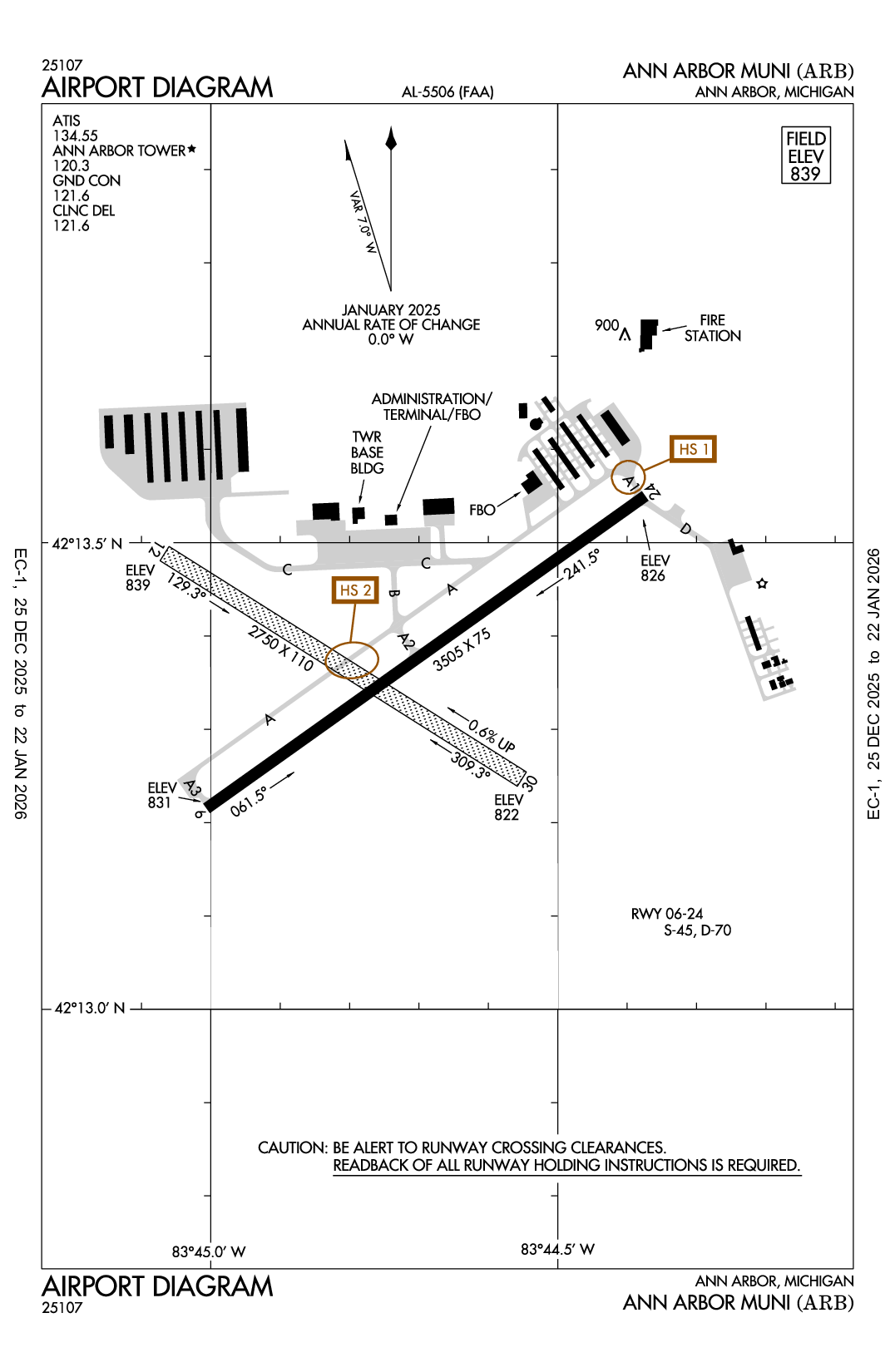

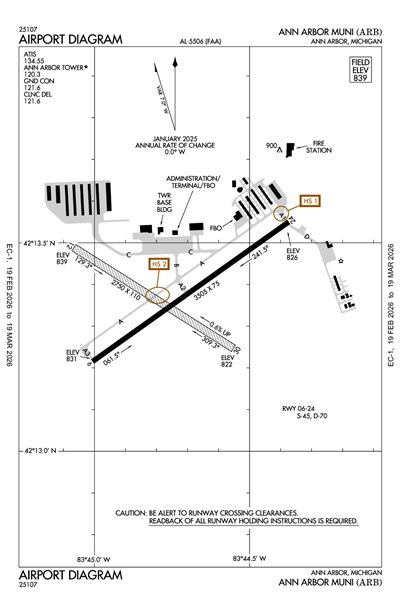

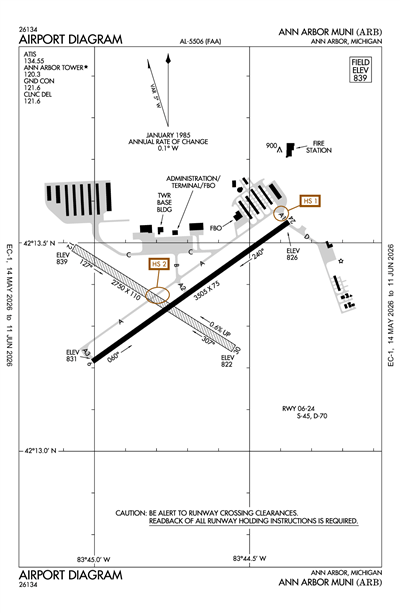

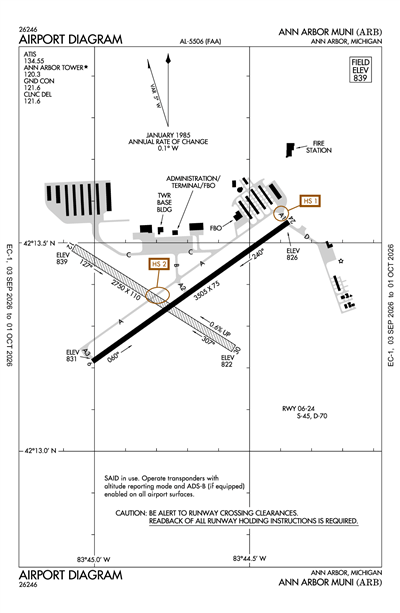

ANN ARBOR MUNI - Airport Diagram
ANN ARBOR, MICHIGAN
3 miles S
42° 13' 23"N
83° 44' 44"W
839' MSL
1839' MSL
05 W 1985
ZOB - CLEVELAND
DETROIT
12/7/17-2/1/18
APR-OCT 0800-2000
NOV-MAR 0800-1800
TERMINAL OPEN 0700-DUSK.
Weather
Collapse TabsCollapse Tabs
METAR - Current Conditions
LIFR
KARB @ 11:26 Z
Light Rain, Mist
Overcast 200'
2.5sm
4 / 4 °C
39 / 39 °F
040° 4kt
29.86" Hg
RMK: AO2 RAE05B21 P0001 T00390039
TAF - Forecast
KYIP (10nm) @ 11:22 Z
Valid
Mon, Jan 22, 12:00 Z - Tue, Jan 23, 12:00 Z
LIFR
12:00 - 17:00 Z
Light Showers, Rain, Mist
Overcast 400'
1sm
120° 7kt
VFR
17:00 - 22:00 Z
Light Showers, Rain, Mist
Overcast 10,000'
Broken 7,000'
6sm
160° 10kt
VFR
22:00 - 8:00 Z
Light Showers, Rain
Broken 4,000'
> 6sm
180° 10kt
MVFR
8:00 - 12:00 Z
Light Showers, Rain
Overcast 1,500'
3sm
230° 8kt
NOTAMs
Collapse TabsCollapse Tabs
KARB NOTAMs
Domestic
1/9/181236Z !ARB 01/009 ARB OBST TOWER LGT (ASR 1000396) 421743.00N0834545.00W (4.4NM N ARB) 1125.3FT (200.1FT AGL) OUT OF SERVICE 1801091236-1801242359
12/9/171027Z !ARB 12/010 ARB RWY 12/30 CLSD 1712091027-1805011200
FDC
1/22/181400Z !FDC 8/8543 ARB SID ANN ARBOR MUNI, Ann Arbor, MI.
FORT WAYNE SEVEN DEPARTURE...
DEPARTURE PROCEDURE DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH
SUITABLE RNAV SYSTEM WITH GPS,
FBC VORTAC OUT OF SERVICE. 1801221400-1801291400EST
11/30/171314Z !FDC 7/5328 ARB SID ANN ARBOR MUNI, Ann Arbor, MI.
AKRON FIVE DEPARTURE...
FORT WAYNE SEVEN DEPARTURE...
ROSEWOOD FIVE DEPARTURE...
DEPARTURE PROCEDURE NA.
1711301314-1807121314EST
11/15/171815Z !FDC 7/8479 ARB STAR ANN ARBOR MUNI, ANN ARBOR, MI.
LLEEO TWO ARRIVAL...
JOHNSTOWN TRANSITION: JST R-313 UNUSABLE TO HAGUD INT.
1711151815-1806271815
10/30/171422Z !FDC 7/4826 ARB SID ANN ARBOR MUNI, Ann Arbor, MI.
ERRTH SIX DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE
RNAV SYSTEM WITH GPS.
YQG VOR/DME OUT OF SERVICE. 1710301422-1806111422EST
9/7/171729Z !FDC 7/8402 ARB PART 1 OF 2 IAP ANN ARBOR MUNI, Ann Arbor, MI.
RNAV (GPS) RWY 24, AMDT 2C...
DELETE NOTE: INOPERATIVE TABLE DOES NOT APPLY TO LPV, LNAV/VNAV,
LNAV CATS A/B.
DELETE NOTE: FOR INOPERATIVE ODALS INCREASE LNAV CATS C/D
VISIBILITY TO
1 3/8. DELETE NOTE: FOR INOPERATIVE ODALS WHEN USING WILLOW RUN
ALTIMETER SETTING INCREASE LNAV/VNAV VISIBILITY ALL CATS TO 1 1/8
AND
LNAV CATS C/D VISIBILITY TO 1 3/8.
DELETE NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WILLOW
RUN ALTIMETER SETTING AND INCREASE ALL DA/MDA 40 FEET, INCREASE
LNAV CATS C/D VISIBILITY 1/8 MILE, AND INCREASE CIRCLING CATS C/D
VISIBILITY 1/4 MILE.
CHART NOTE: CIRCLING NA TO RWYS 12 AND 30.
CHART NOTE: RWY 24 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT
AUTHORIZED.
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WILLOW
RUN ALTIMETER SETTING AND INCREASE ALL DA/MDA 40 FEET AND
VISIBILITY CIRCLING CATS C/D 1/4 SM.
DELETE NOTE: HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT
THIS IS RNAV (GPS) RWY 24, AMDT 2D. 1709071729-PERM
END PART 1 OF 2

!FDC 7/8402 ARB PART 2 OF 2 IAP ANN ARBOR MUNI, Ann Arbor, MI.
AUTHORIZED.
THIS IS RNAV (GPS) RWY 24, AMDT 2D. 1709071729-PERM
END PART 2 OF 2
9/7/171726Z !FDC 7/8393 ARB IAP ANN ARBOR MUNI, Ann Arbor, MI.
RNAV (GPS) RWY 6, AMDT 2B...
CHART NOTE: CIRCLING NA TO RWYS 12 AND 30.
THIS IS RNAV (GPS) RWY 6, AMDT 2C. 1709071726-PERM
9/7/171721Z !FDC 7/8375 ARB IAP ANN ARBOR MUNI, Ann Arbor, MI.
VOR RWY 6, AMDT 13D...
CHANGE : HELICOPTER VISIBILITY REDUCTION NOTE TO READ: RWY 6
HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
CHART NOTE: CIRCLING NA TO RWYS 12 AND 30.
DELETE NOTE: VISIBILITY REDUCTION BY HELICOPTERS NA.
THIS IS VOR RWY 6, AMDT 13E. 1709071721-PERM
9/7/171714Z !FDC 7/8372 ARB IAP ANN ARBOR MUNI, Ann Arbor, MI.
VOR RWY 24, AMDT 13E...
CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WILLOW
RUN ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET AND INCREASE
VISIBILITY S-24 CAT C/D VISIBILITY 1/8 SM AND CIRCLING CAT C/D
VISIBILITY 1/4 SM.
CHART NOTE: CIRCLING NA TO RWYS 12 AND 30.
CHANGE HELICOPTER VISIBILITY REDUCTION NOTE TO READ: RWY 24
HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
DELETE NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WILLOW
RUN ALTIMETER SETTING AND INCREASE ALL MDA 40 FEET AND CIRCLING CAT
C/D VISIBILITY 1/4 MILE.
THIS IS VOR RWY 24, AMDT 13F. 1709071714-PERM
9/7/171430Z !FDC 7/8056 ARB SID ANN ARBOR MUNI, Ann Arbor, MI.
PALACE ONE DEPARTURE...
ST. CLAIR ONE DEPARTURE...
NOTE: ATC ASSIGNED ONLY.
1709071430-1804191430EST
8/2/171530Z !FDC 7/2574 ARB STAR ANN ARBOR MUNI, ANN ARBOR, MI.
GOHMA THREE ARRIVAL: AXXIS AND LONDON TRANSITIONS NA FM RCADE
INT TO WINDSOR VOR/DME EXC FOR ACFT EQUIPPED WITH SUITABLE
RNAV SYSTEM WITH GPS, WINDSOR (YQG) VOR/DME U/S
1708021530-1808022359
Operations
Collapse TabsCollapse Tabs
Operational
Public
Airport Traffic Control Tower
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
ARB
Yes - Lighted
Yes
WHEN ATCT CLSD ACTVT MIRL RY 06/24, PAPI RY 06, VASI RY 24, AND REIL RY 06 - CTAF.
Clear-Green
SEE RMK
N/A, 100LL, A
NOT a Landing Rights Airport
NOT an Airport of Entry
ROGER W. FRASER
100 N, FIFTH AVE
ANN ARBOR, MI 48104

Phone: 734-994-2650
MATTHEW KULHANEK
100 N, FIFTH AVE, P.O. BOX 8647
ANN ARBOR, MI 48107-8647

Phone: 734-994-9124
Communication
Collapse TabsCollapse Tabs
Channel Frequency Code Notes
UNICOM 123.000
CTAF 120.3
ATIS 134.55 ATIS
EMERGENCY 121.5 EMERG
GROUND 121.6 GND/P CD/P
TOWER 120.3 LCL/P
Documents
Collapse TabsCollapse Tabs
Runways
Collapse TabsCollapse Tabs

Runway 06/24

3505 ft. x 75 ft.
CONC
Fair
GRVD
MED

45000 lbs
70000 lbs
0 lbs
0 lbs
  Runway 06 Runway 24
Runway Heading 55° 235°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 13' 13"N 42° 13' 33"N
Longitude 83° 45' 00"W 83° 44' 22"W
Elevation 831.3 ft. 826 ft.
Threshold Crossing Height 20 ft. AGL 20 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L V2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes

Runway 12/30

2750 ft. x 110 ft.
TURF
Fair



0 lbs
0 lbs
0 lbs
0 lbs
  Runway 12 Runway 30
Runway Heading 122° 302°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 13' 30"N 42° 13' 15"N
Longitude 83° 45' 03"W 83° 44' 32"W
Elevation 839 ft. 822 ft.
Threshold Crossing Height 0 ft. AGL 0 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
Hangars & Properties
Collapse TabsCollapse Tabs

View hangar and property listings at KARB, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

Remarks
Collapse TabsCollapse Tabs
  • A110-1 - DEER & BIRDS ON & INVOF ARPT.
  • A110-2 - WHEN ATCT CLSD CONFIRM SNOW REMOVAL OPNS & WINTER CONDS - CTAF.
  • A110-3 - RY 24 RUNUP AREA, FIRST 200 FT OF TWY A, & TWY AI BTN TWY A & RY 24 HOL LINE NOT VSB FM TWR.
  • A110-4 - NO SNOW REMOVAL FOR RY 12/30.
  • A110-5 - 24 HR RESTROOMS LCTD IN Q-ROW NW HANGARS, COMBINATION 13455.
  • A110-6 - FOR CD WHEN ATCT IS CLSD CTC DETROIT APCH AT 800-499-8181.
