iFlightPlanner



...

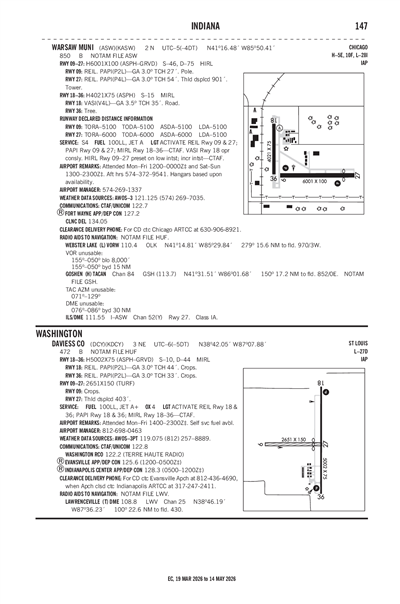

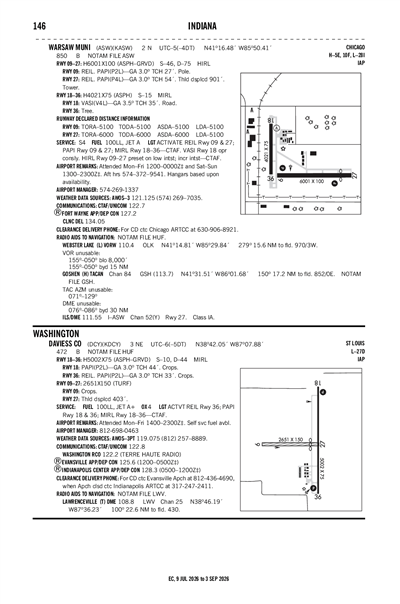

WARSAW MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KASW
WARSAW MUNI
PublicPUB

2 miles N of WARSAW, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 16' 29"N 85° 50' 24"W
850' MSL
1850' MSL
03W
Jet A, 100LL
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
4/18/24-5/16/24
KASW VFR
7:15 AM EDT
Clear
10sm
52°F
41°F
30.01"Hg
100° 6kts
AO2 T01120049
KASW 021115Z AUTO 10006KT 10SM CLR 11/05 A3001 RMK AO2 T01120049
List Your Business

KASW FBOs, Flight Schools and Ground Support

Promote Listing
Warsaw Municipal Airport
Freq: 122.7
Phone: (574) 269-1337
Other: (574) 372-9541
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/30
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 5.53 5.44 5.49

KASW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KASW Hotels

No hotels are listed for this airport.

KASW Restaurants

No restaurants are listed for this airport.

KASW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
574-269-7035
 121.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSBN (34nm)
Thu, 5/2 7:20 AM EDT
Thu, 5/2 8:00 AM EDT - Fri, 5/3 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Broken 25,000'
Few 10,000'
6sm
090° 7kts
VFR
11:00 AM EDT - 3:00 PM EDT
Broken 10,000'
6sm
130° 12kts
VFR
3:00 PM EDT - 8:00 PM EDT
Broken 7,000'
6sm
170° 12kts
VFR
8:00 PM EDT - 4:00 AM EDT
Thunderstorm in vicinity
Broken 5,000'
6sm
180° 8kts
VFR
4:00 AM EDT - 8:00 AM EDT
Light Showers and Rain
Overcast 4,000'
6sm
220° 5kts
KSBN 021120Z 0212/0312 09007KT P6SM FEW100 BKN250
   FM021500 13012KT P6SM BKN100
   FM021900 17012KT P6SM BKN070
   FM030000 18008KT P6SM VCTS BKN050CB
   FM030800 22005KT 6SM -SHRA OVC040
KASW
Domestic
7/27/230801Z !ASW 07/006 ASW NAV ILS RWY 27 GP U/S 2307270801-2407192000EST
No
MON-FRI 0700-1900
SAT-SUN 0800-1800
AFT HR - 574-372-9541
WARSAW BOAC
3000 AIRPORT DR
WARSAW, IN 46582
Phone: 574-269-1337
NICHOLAS KING
3000 AIRPORT DR
WARSAW, IN 46582
Phone: 574-269-1337
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
ASW
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 18/36 - CTAF. VASI RWY 18 OPR CONSLY. HIRL RWY 09/27 PRESET TO LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
36
2
3
2
0
0
Major
Major
None
None
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental

Runway 09/27

6001 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

46,000lbs
75,000lbs
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern
Markings NPI PIR
Markings Condition FAIR FAIR
Latitude 41° 16' 21"N 41° 16' 22"N
Longitude 85° 50' 46"W 85° 49' 28"W
Elevation 837' 850'
Threshold Crossing Height 27 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

4021 ft. x 75 ft.
ASPH
Fair
NONE
MED

15,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 41° 17' 00"N 41° 16' 20"N
Longitude 85° 50' 50"W 85° 50' 49"W
Elevation 840' 836'
Threshold Crossing Height 35 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator V4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
WARSAW MUNI (ICAO: KASW, IATA: ASW) is a public airport located in WARSAW, IN.
