KBUB
CRAM FLD
Public
PUB
1 miles SW of BURWELL, NE
View on
Map
Status
Operational
Coordinates
41° 46' 39"N
99° 09' 01"W
Elevation
2183' MSL
Pattern Alt
3183' MSL
Mag Variation
07E
Fuel
100LL
FSS
COLUMBUS (OLU)
Sectional
OMAHA
ARTCC
DENVER (ZDV)
Data Effective
5/16/24-6/13/24
KODX (13nm)
LIFR
5:53 AM CDT
RAW
Fog
Obscured
Viz
0.25sm
Temp
54°F
Dew
54°F
Pres
29.76"Hg
Wind
290° 4kts
RMK
AO2 SLP074 T01220122
KODX 201053Z AUTO 29004KT 1/4SM FG VV002 12/12 A2976 RMK AO2 SLP074 T01220122
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
KBUB FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
KBUB Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
KBUB Hotels
No hotels are listed for this airport.
KBUB Restaurants
No restaurants are listed for this airport.
KBUB Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

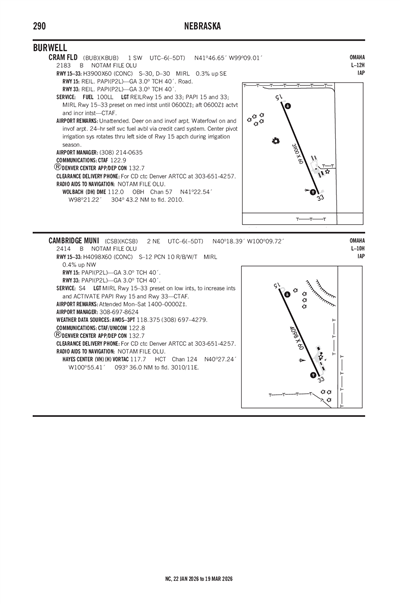

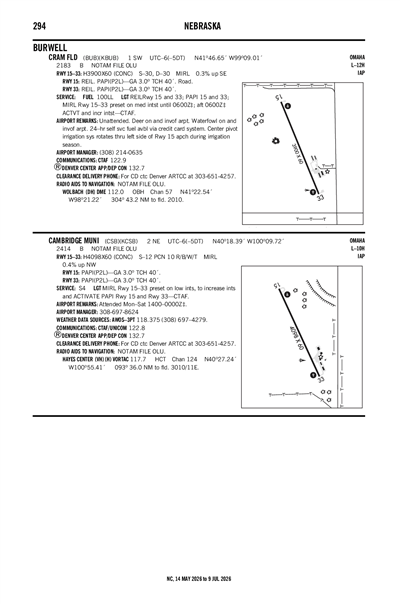

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 15
RNAV (GPS) RWY 33
Terminal Area Forecast
KGRI (62nm)
RAW
Reported
Mon, 5/20 12:25 AM CDT
Valid
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 3:00 AM CDT
Broken 20,000'
Viz
6sm
Wind
170° 6kts
MVFR
3:00 AM CDT - 6:00 AM CDT
Mist
Broken 1,500'
Scattered 800'
Viz
6sm
Wind
210° 5kts
IFR
6:00 AM CDT - 9:00 AM CDT
Mist
Broken 800'
Viz
5sm
Wind
270° 5kts
MVFR
9:00 AM CDT - 12:00 PM CDT
Broken 2,200'
Viz
6sm
Wind
330° 7kts
MVFR
12:00 PM CDT - 2:00 PM CDT
Broken 3,000'
Viz
6sm
Wind
020° 9kts
VFR
2:00 PM CDT - 1:00 AM CDT
Scattered 4,000'
Viz
6sm
Wind
030° 9kts
KGRI 200525Z 2006/2106 17006KT P6SM BKN200
FM200800 21005KT 6SM BR SCT008 BKN015
FM201100 27005KT 5SM BR BKN008
FM201400 33007KT P6SM BKN022
FM201700 02009KT P6SM BKN030
FM201900 03009KT P6SM SCT040
KBUB
Domestic
5/16/24
2023Z
!OLU 05/069 BUB OBST TOWER LGT (ASR 1031492) 414839.00N0985803.00W (8.4NM ENE BUB) 2909.1FT (414.0FT AGL) U/S 2405162023-2408310459
5/16/24
1443Z
!OLU 05/067 BUB AD AP FUEL NOT AVBL 2405161443-2405242359
5/13/24
1951Z
!OLU 05/047 BUB OBST TOWER LGT (ASR 1312135) 420942.20N0990137.10W (23.73NM N BUB) 2656FT (332FT AGL) U/S 2405131951-2406132359
FDC
9/13/23
1600Z
!FDC 3/9617 BUB IAP CRAM FLD, BURWELL, NE.
RNAV (GPS) RWY 15, ORIG-B...
CIRCLING CAT B MDA 2920/HAA 737.
2309131600-2509131600EST
ATC Tower
No
Attendance
UNATNDD
Owner
BURWELL AIRPORT AUTHORITY
PO BOX 730
BURWELL, NE 68823-0730
Phone: (308) 346-5565
Manager
DUANE BROCKMAN
PO BOX 730
BURWELL, NE 68823-0730
Phone: (308) 214-0635
FSS
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
NOTAM
OLU
Light Schedule
--
Lights
REIL RWY 15 & 33; PAPI 15 & 33; MIRL RWY 15/33 PRESET ON MED INTST UNTIL 2400; AFT 0000 TO ACTVT AND INCR INTST - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
10
# Multi Engine
1
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 15/33
Dimensions
3900 ft. x 60 ft.
Surface Type
CONC
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
30,000lbs
Double Wheel
30,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 15
Runway 33
True Heading
159°
339°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
41° 46' 57"N
41° 46' 21"N
Longitude
99° 09' 10"W
99° 08' 52"W
Elevation
2,172'
2,183'
Threshold Crossing Height
40 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
DEER ON AND INVOF ARPT.
A110-2
WATERFOWL ON AND INVOF ARPT.
A110-3
CNTR PIVOT IRRIGATION SYS ROTATES THRU LS OF RWY 15 APCH DRG IRRIGATION SEASON
A110-4
FOR CD CTC DENVER ARTCC AT 303-651-4257.
CRAM FLD (ICAO: KBUB, IATA: BUB) is a public airport located in BURWELL, NE.
