iFlightPlanner



...

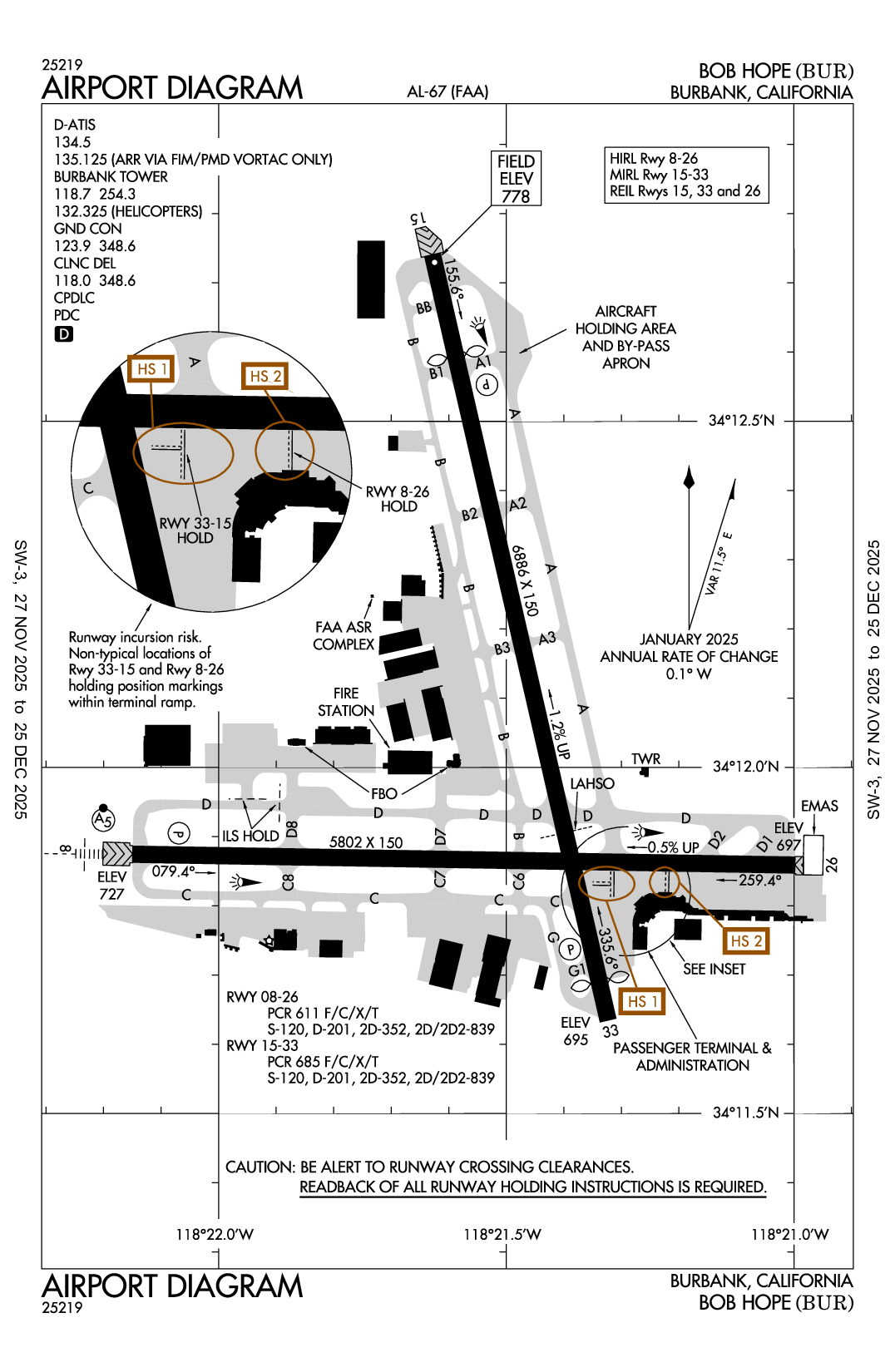

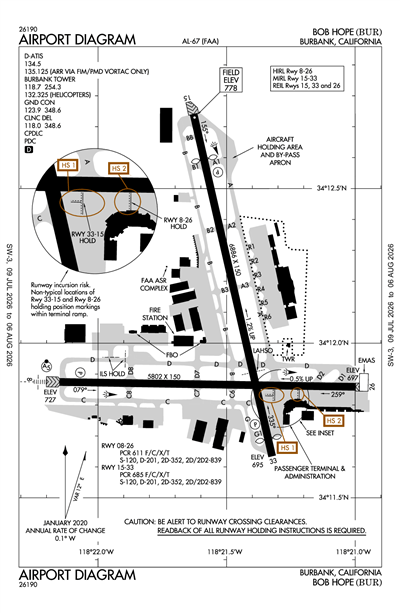

BOB HOPE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBUR
BOB HOPE
PublicPUB

3 miles NW of BURBANK, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 12' 02"N 118° 21' 31"W
778' MSL
1778' MSL
12E
Jet A, Jet A+, 100LL
HAWTHORNE (HHR)
LOS ANGELES
LOS ANGELES (ZLA)
4/18/24-5/16/24
KBUR VFR
3:53 PM PDT
Clear
10sm
69°F
52°F
29.81"Hg
160° 9kts
AO2 SLP084 T02060111
KBUR 012253Z 16009KT 10SM CLR 21/11 A2981 RMK AO2 SLP084 T02060111
List Your Business

KBUR FBOs, Flight Schools and Ground Support

Promote Listing
Million Air
Freq: 129.625
Phone: (818) 843-8311
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel, Chevron
As of 4/30
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 9.07 6.42 6.52 9.48
Promote Listing
Atlantic Aviation
Freq: 131.6
Phone: (818) 841-2966
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/27
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 9.14 8.30

KBUR Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KBUR Hotels

No hotels are listed for this airport.

KBUR Restaurants

No restaurants are listed for this airport.

KBUR Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
818-843-6633
 134.5
D-ATIS
818-843-6633
 135.125

Clearance Delivery

CD/P
 118.0

Emergency

EMERG
 121.5

Ground

GND/P
 123.9

Tower

LCL/P
 118.7
LCL/P
HELICOPTERS
 132.325

Terminal Area Forecast

KBUR
Wed, 5/1 4:32 PM PDT
Wed, 5/1 5:00 PM PDT - Thu, 5/2 5:00 PM PDT
VFR
5:00 PM PDT - 8:00 PM PDT
Sky Clear
6sm
160° 8kts
VFR
8:00 PM PDT - 12:00 AM PDT
Sky Clear
6sm
120° 6kts
VFR
12:00 AM PDT - 5:00 AM PDT
Sky Clear
6sm
VRB° 3kts
MVFR
5:00 AM PDT - 9:00 AM PDT
Overcast 1,200'
6sm
VRB° 3kts
VFR
9:00 AM PDT - 2:00 PM PDT
Scattered 1,500'
6sm
VRB° 3kts
VFR
2:00 PM PDT - 5:00 PM PDT
Sky Clear
6sm
140° 8kts
KBUR 012332Z 0200/0224 16008KT P6SM SKC
   FM020300 12006KT P6SM SKC
   FM020700 VRB03KT P6SM SKC
   FM021200 VRB03KT P6SM OVC012
   FM021600 VRB03KT P6SM SCT015
   FM022100 14008KT P6SM SKC
KBUR
Domestic
5/8/240700Z !BUR 05/005 BUR SVC ATIS 135.125 U/S 2405080700-2405081200
5/8/240700Z !BUR 05/004 BUR COM CPDLC U/S 2405080700-2405081200
5/3/241500Z !BUR 05/006 BUR SVC SSR U/S 2405031500-2405031900
5/2/241900Z !BUR 05/007 BUR AIRSPACE UAS WI AN AREA DEFINED AS .1NM RADIUS OF 340841N1182046W (4NM S BUR) SFC-300FT AGL 2405021900-2405022100
5/2/241500Z !BUR 05/003 BUR AD AP RVR ALL U/S 2405021500-2405021700
5/2/240600Z !BUR 05/002 BUR TWY D BTN TWY D7 AND APCH END RWY 08 CLSD PAVER INSPECTION 2405020600-2405021100
5/1/240504Z !BUR 05/001 BUR OBST TOWER LGT (ASR 1014235) 341149.00N1181533.00W (4.9NM E BUR) 2853.0FT (212.9FT AGL) U/S 2405010504-2405310001
4/29/241353Z !BUR 04/100 BUR AD AP BIRD ACT GEESE BTW TWY C6 AND C7 2404291353-2405061300
4/26/242041Z !BUR 04/099 BUR RWY 08 PAPI TCH NOW 61FT
2404262041-PERM
4/25/241101Z !BUR 04/094 BUR RWY 08 HLDG PSN MARKINGS AT RWY 15/33 W SIDE OBSC 2404251101-2405090700
4/25/241101Z !BUR 04/093 BUR RWY 26 HLDG PSN MARKINGS AT RWY 15/33 E SIDE OBSC 2404251101-2405090700
4/25/241100Z !BUR 04/092 BUR RWY 15 HLDG PSN MARKINGS AT RWY 08/26 N SIDE OBSC
2404251100-2405090700
4/25/241100Z !BUR 04/091 BUR RWY 33 HLDG PSN MARKINGS AT RWY 8/26 S SIDE OBSC 2404251100-2405090700
4/18/242259Z !BUR 04/076 BUR RWY 08 PAPI BEYOND 6.5 DEGREE LEFT OF RCL UNUSABLE 2404182259-2405170700
FDC
3/22/241551Z !FDC 4/0455 BUR SID BOB HOPE, Burbank, CA.
VAN NUYS THREE DEPARTURE...
DAGGETT TRANSITION,PALMDALE TRANSITION DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LHS VORTAC OUT OF SERVICE. 2403221551-2411011551EST
3/13/241925Z !FDC 4/6861 BUR SID BOB HOPE, BURBANK, CA.
VAN NUYS THREE DEPARTURE...
DAGGETT TRANSITION, PALMDALE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VTU VOR/DME OUT OF SERVICE. 2403131925-2407241925EST
3/13/241925Z !FDC 4/6858 BUR IAP BOB HOPE, BURBANK, CA.
VOR RWY 8, AMDT 12A...
MISSED APPROACH: CLIMBING RIGHT TURN TO 4000 DIRECT VNY VOR/DME THEN ON VNY R-242 TO SILEX INT/VNY 6.12 DME AND HOLD.,
VTU VOR/DME OUT OF SERVICE. 2403131925-2407241925EST
3/13/241925Z !FDC 4/6857 BUR IAP BOB HOPE, BURBANK, CA.
ILS Z OR LOC Z RWY 8, AMDT 39A...
MISSED APPROACH: CLIMB TO 1300 THEN CLIMBING RIGHT TURN TO 4000 ON HEADING 210 AND SMO VOR/DME R-311 TO SILEX INT/VNY 6.12 DME AND HOLD. # MISSED APPROACH REQUIRES MINIMUM CLIMB OF 340 FEET PER NM TO 2520 (IF UNABLE TO MEET CLIMB GRADIENT, SEE ILS Y OR LOC Y RWY 8),
VTU VOR/DME OUT OF SERVICE. 2403131925-2407241925EST
3/13/241925Z !FDC 4/6856 BUR IAP BOB HOPE, BURBANK, CA.
ILS Y OR LOC Y RWY 8, AMDT 6A...
MISSED APPROACH: CLIMB TO 1800 THEN CLIMBING RIGHT TURN TO 4000 ON HEADING 210 AND SMO VOR/DME R-311 TO SILEX INT/VNY 6.12 DME AND HOLD,
VTU VOR/DME OUT OF SERVICE. 2403131925-2407241925EST
3/5/241901Z !FDC 4/3218 BUR IAP BOB HOPE, BURBANK, CA.
ILS Y OR LOC Y RWY 8, AMDT 6A...
ILS Z OR LOC Z RWY 8, AMDT 39A...
DISREGARD NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 72).
2403051901-2603051901EST
3/5/241901Z !FDC 4/3217 BUR IAP BOB HOPE, BURBANK, CA.
RNAV (GPS) Z RWY 8, AMDT 2A...
RNAV (RNP) Y RWY 8, AMDT 2A...
DISREGARD NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 72).
2403051901-2603051901EST
Yes
ALL
BURBANK-GLENDALE-PASADENA APT
2627 HOLLYWOOD WAY
BURBANK, CA 91505
Phone: 818-840-8840
THOMAS HENDERSON, DIRECTOR OF OPS
2627 HOLLYWOOD WAY
BURBANK, CA 91505
Phone: 818-840-8830
HAWTHORNE FSS (HHR)
Toll Free: 1-800-WX-BRIEF
BUR
--
--
N/A
Yes - Lighted
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
22
6
42
11
0
0
Major
Major
High Pressure
High Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

5802 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH
58 /R/B/W/T
120,000lbs
201,000lbs
352,000lbs
839,000lbs
  Runway 08 Runway 26
True Heading 91°271°
Traffic Pattern Right Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 34° 11' 52"N 34° 11' 52"N
Longitude 118° 22' 09"W 118° 20' 60"W
Elevation 727' 697'
Threshold Crossing Height 72 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 15/33

6886 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
MED
58 /R/B/W/T
120,000lbs
201,000lbs
352,000lbs
839,000lbs
  Runway 15 Runway 33
True Heading 167°347°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 12' 44"N 34° 11' 38"N
Longitude 118° 21' 38"W 118° 21' 19"W
Elevation 778' 694'
Threshold Crossing Height 34 ft. AGL 62 ft. AGL
Visual Glide Path Angle 3.25° 3.2°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1ACFT IN TFC PAT (1225 FT AGL) AT WHITEMAN AIRPARK 5 MI NW.
A110-11HANG GLIDER ACTIVITY BTN 5 & 10 NM NORTH OF ARPT 6000 FT AGL SR-SS.
A110-12TWY G RSTRD TO ACFT WITH WINGSPAN OF 95 FT OR LESS.
A110-14POWER ENGINE RUN-UPS FOR ACFT GTR THAN 1200 LBS PROHIBITED IN ALL AREAS EXC ON TWY D RUN-UP AREA OR AS COORDINATED WITH ATCT.
A110-1614 FT BLAST FENCE 35 FT FM DEP END RY 15.
A110-1714 FT BLAST FENCE 93 FT FM DEP END RY 33.
A110-188 FT BLAST FENCE 260 FT FM DEP END OF RY 26.
A110-2014 FT BLAST FENCE 256 FT FROM DEP END RY 08.
A110-21TWY A RESTRICTED TO ACFT WITH WINGSPAN OF 171 FT OR LESS.
A110-23PILOTS SHOULD CALL AHEAD FOR ARPT NOISE RULES (818) 840-8840.
A110-24RSTRNS AND FINES EFF 2200-0700 FOR STAGE 2 JETS, CERTAIN PROPS, RUN-UPS AND FLT TRG ACT, CALL (818) 840-8840 BFR OPRG.
A110-25HELICOPTER ARRIVALS RESTRICTED TO RY 08/26 AND 15/33.
A110-27TWY B RESTRICTED TO ACFT WITH WINGSPAN OF 79 FT OR LESS BEGINNING 300 FT NORTH OF TWY D AND CONTINUING NORTH.
A110-28NO GA ACFT PARKING AT TERMINAL RAMP.
A110-3TURBULENT CONDS NEAR ARPT AT TIMES OF HIGH WINDS FROM NORTH & EAST. DOWNDRAFTS/WINDSHEAR MAY OCCUR AT LIFTOFF OR ON FINAL.
A110-30ACFT WILL USE EASY PWR WHEN LVG ASGND GATE. CTN MUST BE USED WHEN TAXIING FM TRML AREA DUE TO CLOSE PROXIMITY TO THE TRML. PSNL AND GND EQUIP IN AREA.
A110-31ACFT WITH WINGSPAN GTR THAN 95 FT EXP BACK TAXI ON RWY 15/33 FOR A RWY 33 DEP.
A110-32ACFT RSTRD FROM TAXIING SB PAST GATE B1 ON TRML RAMP.
A110-33ACFT WITH WINGSPAN GTR THAN 79 FT RSTRD FROM USING TWY C W OF TWY C8.
A110-34RWY 26 CLSD TO TKOF/JET ACFT WITH FOUR OR MORE ENGS.
A110-35X-BLEED STARTS PROHIBITED IN ALL NON-MOVMT AREAS INCLG THE AIRLINE TRML RAMP. ATC MAY APV X-BLEED STARTS ON TWY A NORTH OF TWY D, ALL OTHER REQS MUST BE COORDD AND APVD BY OPS.
A110-36WHEN KBUR LDG RWY 08 USE CTN FOR TCAS RA DUE TO ACFT IN KVNY RWY 16L/34R TFC PAT (TPA 1802 MSL).
A110-6BIRD ACTIVITY NORTH END RY 15/33 AND WEST END RY 08/26.
A110-9RWY 08 CLSD TKOF ACFT GTR THAN 12500 LBS.
BOB HOPE (ICAO: KBUR, IATA: BUR) is a public airport located in BURBANK, CA.
